• Model NO.：CIMC5256QTX
• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Tank：16 Cbm
• Tank Volume M3：16 Cbm
• Sludge Tank：16 Cbm
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：CIMC
• Origin：China
• HS Code：8704230000
• Production Capacity：200 Units Per Year

Shape         Cylindrical shaped tank with external reinforce rings.Material   Mild steel.Capacity .8,000Lilters sludge tank. 3,000Liters water tank.Shell thickness6mm.Dish end thickness6mm.Working pressure-0.9bar underpressure.Tank inner filterSeparate the sucked wastewater and solid, which protects key parts like pump, valve and hose.

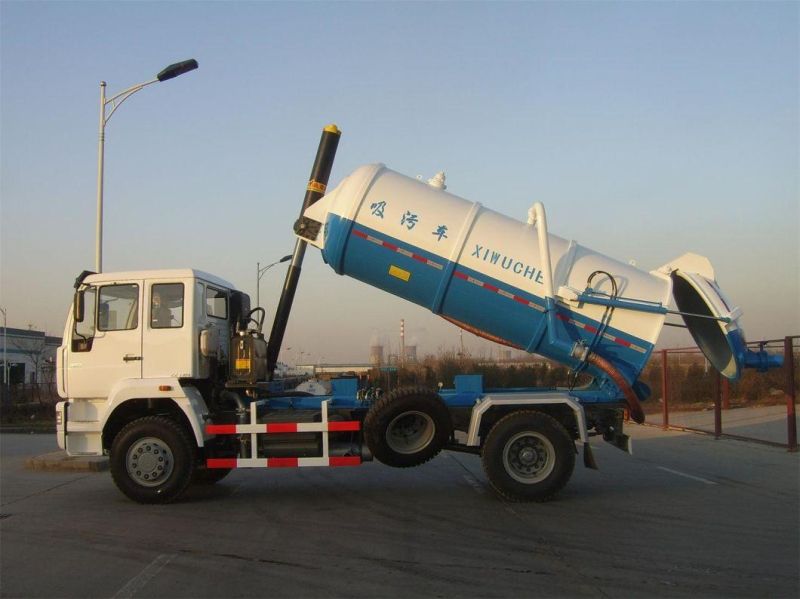

 Tipping cylinderItaly PENTA brand front tipping and single acting cylinder. Front tank bottom mounted with safety support for protectionLiquid level indicatorMounted at the rear of the tank.Overpressure safetyOverpressure relief valve on tank top.Full opening rear lidHydraulically opening and lockingOutlet ValveOne 150mm ball valve, manual operation.Anti over-flowSS float ball prevents overfilling sludge tank.
When the tank's full, ultrasonic level indicator is activated and vacuum pump is closed automatically, allow no need to shut down from the Cab.Reverse dischargePressure switch system changes positive pressure to be negative, which allows the tank inside wastewater be reversed discharged via suction boom. This improves working efficiency.Vacuum Unit                                                           Vacuum pumpLiquid ring vacuum pump, is driven from the PTO on the
gearbox, provides high airflows along with high vacuum levels for removing materials above or below liquid surfaces.
Engaged and disengaged from drivers cab.BrandKENFLO
 Max vacuum level-0.92BarAir flow rate2800m3/h.Power requirement90kW.Rotate speedMax 800r/min.Pump coolingCooling Water tank in mild steel 1,500L, mounted behind cabPump protection1)stainless steel ball valve in the tanker;2)filter;3)auto vacuum check valve.Telescopic suction boomStainless steel material. 270°horizontal rotation and 1350mm extension, 6m working radius. Vertical lift up to 6m from ground
Power Take Off
The PTO (OMSI brand) is mounted to the transmission
l        1 driving window for driving the vacuum pump
l        1 driving window for driving the water pump
l        2 driving windows for driving all the hydraulic devices

High Pressure Jetting Unit
Pressure pump brand      URACA

Flow                   290L/Min
Max Pressure            200bar
Power requirement        135kW
Pressure hose            100m, ID25mm(1″). The pressure hose with pneumatic water pressure regulation device, can be connected to the air supply system of the truck to blow out all water in case of temperatures below 0°.
Hose reel                Rear mounted, with 110° horizontal rotation.
Jetting hose be placed into pipeline via hose guide frame. And can be collected back hydraulicly .




Suction Hose
Length               20m, can be lengthened
ID                   5″
Material              steel line and rubber hose
Accessory             5″ non-return valves

Jetting Hose
Length               100m, can be lengthened
ID                   5″
Material              steel line and rubber hose

Nozzle                                                               1 jetting nozzle, 1 pointed nozzle

Optional super drilling head: Made by wear-resistant materials and equipped with drill, cut tree root and concrete waste, specially designed for completely blocked sewer.

Finishing                                                              Hose carrierTool box on each side . Length according to available place.Side hose reelWith a capacity of up to 20m of 1/2″ hose.Hand-Gun cleaner50 L/Min flow rate, 110bar.
Hydraulic equipments                                                    EquipmentAll needed control valves and equipment for a smooth and easy operation of the unit are installed.HydraulicThe unit is equipped with a suitable oil tank.
Hydraulic order for rear lid opening, tank tipping, suction boom telescoping, lifting and rotation.Additional safety features                                                Emergency stopAn emergency stop is installed on the main control panel.Working light1 working light is equipped on the right side of the truck.
Control panel
All necessary controls needed for good operation are provided and will be discussed with the customer prior to mounting, including control panel and radio remote control.


Painting                                                                SandblastingAll steel parts are sand blasted before painting.PaintTwo components anti corrosion primer and final painting at customer's choice of color.InsideThe inside of the tank is specially treated against rust.AdvertisingPaint markers according to customer's demand.

Delivery                                                                  DateIn mutual agreement.ManualWe provide operation and complete maintenance manual in English language.Training3days free operate training.
