• Fuel：Diesel
• Tank Volume：10000lites
• Drive Wheel：4x2
• Hoesrpower：170 HP
• Condition：New
• Material：Carbon Steel
• Hand Driving：LHD or Rhd
• Sewage Capacity：10000 Liters, 10cbm
• Sewage Pump：Vacuum Pump
• Brand：Chinese Famous Brand or Italy Pump
• Pressure Gauge：Yes
• Glass Window：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow Valve：Yes
• Discharge Valve：Yes
• Hand Washing Device：Optional
• Operating Video：Yes
• Logo：as Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7860*2500*3150 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)15800Curb Weight (kg)7060Curb Weight (kg)8740Overall Dimensions L*W*H(mm)7860*2500*3150 Engine BrandYuchai Fuel TypeDieselPower170HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)3950Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)4500/9000Tire No.6+1 spareTire Specification9.00R20Wheelbase (mm)4700Axle No.2Gear Box6 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeOil brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)10,000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

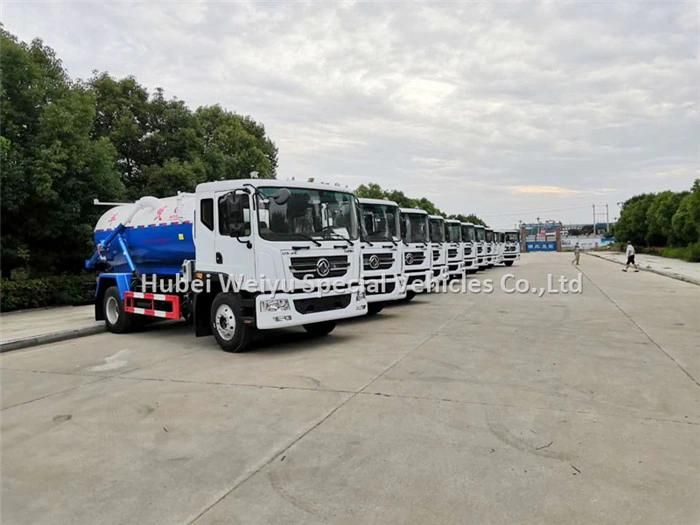

Reference photos for vacuum suction truck

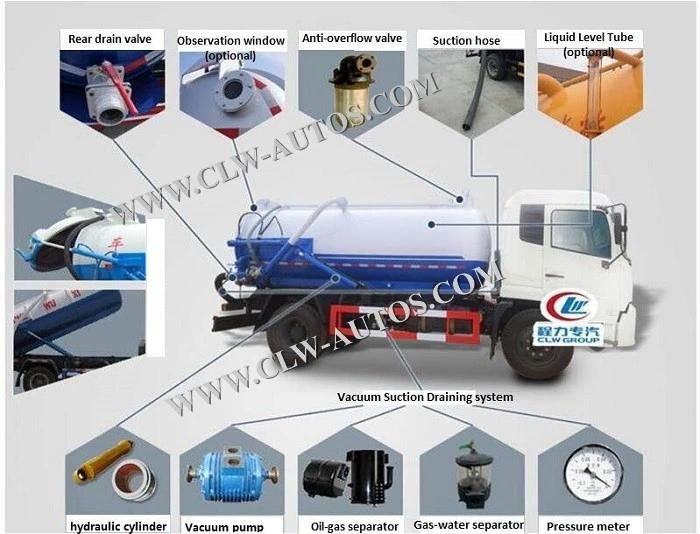

Product Diagram for sewage suction truck





Working Diagram

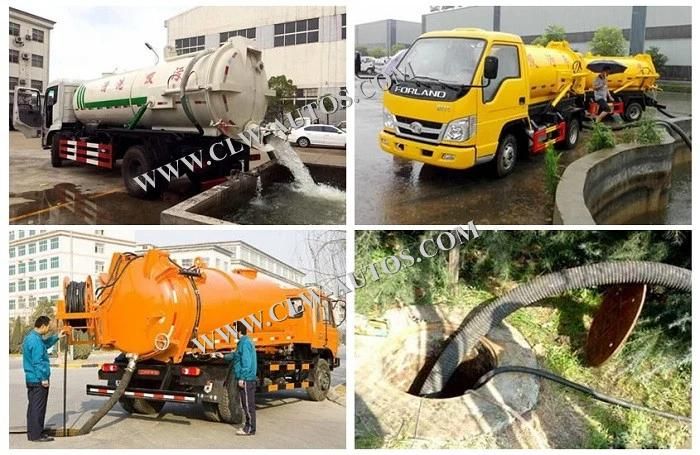

Working Show




Company Introduction




Overseas Exhibition and Local Support




Customer Visiting




Cargo Shipment Methods
