Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Compactor
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Volume：＞15000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：22ton, 23ton, 24ton, 25ton, 26ton

Base Info

  • Model NO.：CLW5086LJC
  • Fuel：Diesel
  • Drive Wheel：6×4
  • Brand：Dongfeng
  • Models：Medium
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.8-0.9 Ton,M3
  • Compression Ratio：3-4
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23s
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
  • Garbage Box Capacity：5ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm
  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Warranty：1 Year
  • Transport Package：Naked, Container, RO-RO, Bulk
  • Specification：18cbm, 18m3, 18000Liters, 25tons
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension10000*2500*3250(mm)Gross Vehicle Weight25000(Kg)Curb Weight15300(Kg)Chassis SpecificationChassis BrandDongfengDrive model6*4CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModelCummins 210HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, withABS.Power154KW/210HPEmission standardEURO 3Displacement6550(ml)Fuel typeDieselGearbox6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base4350+1350mmFront/Rear Axle Loading5000/10000(Kg)Approach/Departure Angle24/12°Tire11.00R20, 6pc with 1 spare tireMax Driving Speed98(km/h)Upperstructure SpecificationCompector BoxBox Volume18CBMBox Capacity25TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration
  1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

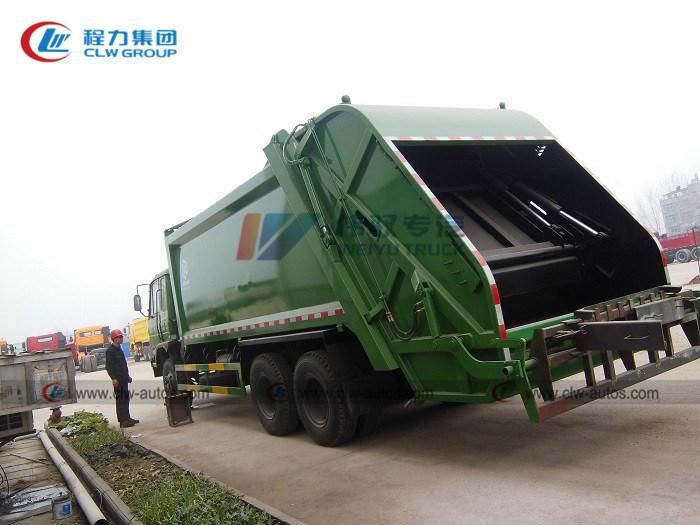

    Reference Photos
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage TruckIsuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

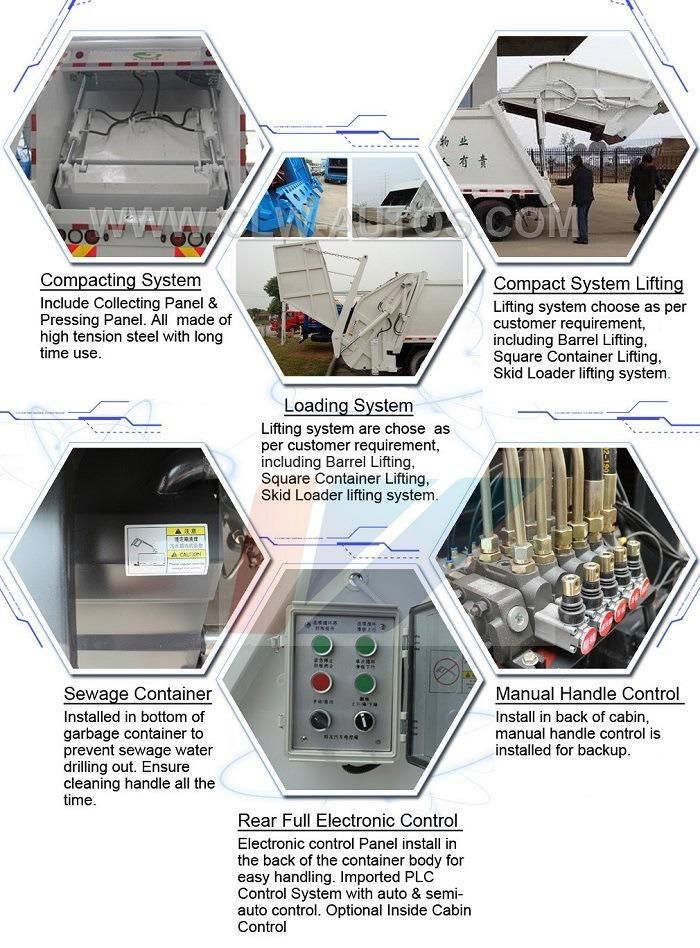

    Main Parts
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

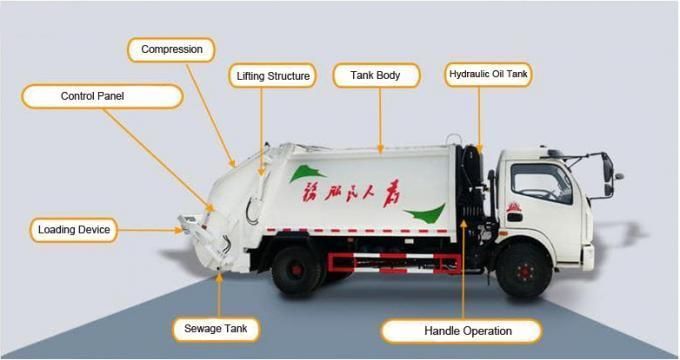

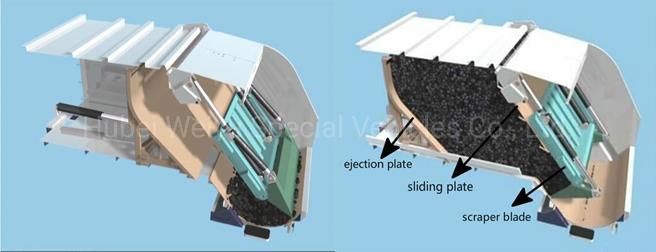

    Main Working System
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

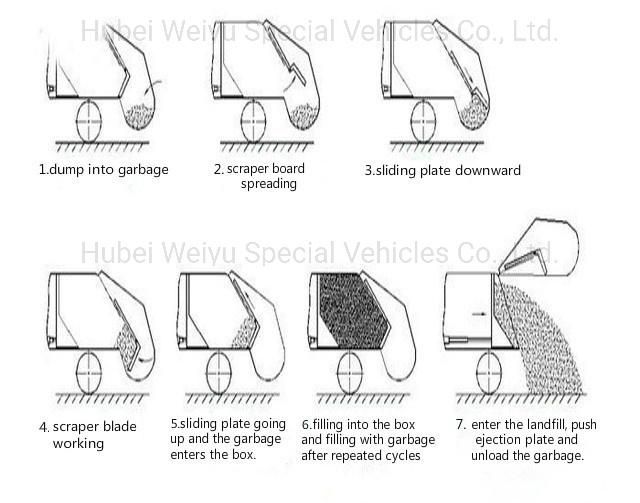

    Garbage Loading and Unloading Process
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

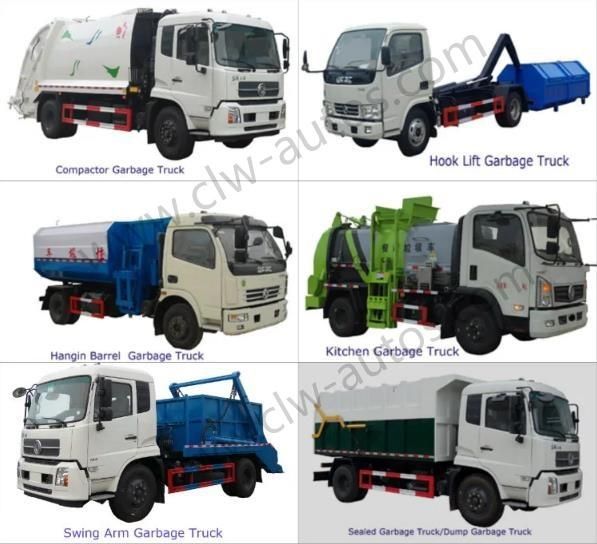

    Various Kinds of Garbage Trucks
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck

    Company Introduction
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck
    Certificates
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck
    Our Overseas Exhibition
    Isuzu 20cbm 12tons Compactor Sanitation Rubbish Collector Waste Transport Heavy Duty Self Compressed Garbage Truck


    After-sales Service

    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
