China Dongfeng 9cbm/M3 High Quality Price Ratio Power Plant Coal Mining Area Ash Dust Suppression Vacuum Suction Road Cleaning Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Type：Pure Suck-type
- Certification：ISO9000, CCC
- Transmission Type：Manual
- Emission Standard：Euro V
- Fuel：Diesel
- Payload：3t, 4t, 5t, 8t, 10t
Base Info
- Model NO.：CLW5086XCC
- Use：Stainless Steel
- Cleaning Process：Cold Water Cleaning
- Condition：New
- Truck Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
- Dimensions：8900*2600*3300mm
- Dust Tank：4cbm, 6cbm, 7m3, 8m3, 12m3
- Water Tank：1m3, 1.5m3, 2m3, 4cbm
- Drive Model：4X2, 6 Wheels, 6 Wheeler
- Material：Stainless Steel
- Operation：Self-Loading and Discharge
- Hand Driving：LHD or Rhd
- Max. Operation Ability：65000m2,H
- Max. Working Width：2700mm
- Auxiliary Engine：Famous International Brand or Chinese Brand
- Paint：Color and Logo Designed According to Customers
- Transport Package：Naked Packing
- Specification：9m3, 9cbm
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：87059099
- Production Capacity：500 Units Per Month
Description
Basic Info.
Model NO. CLW5086XCC Use Stainless Steel Cleaning Process Cold Water Cleaning Condition New Truck Chassis Brand Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc. Dimensions 8900*2600*3300mm Dust Tank 4cbm, 6cbm, 7m3, 8m3, 12m3 Water Tank 1m3, 1.5m3, 2m3, 4cbm Drive Model 4X2, 6 Wheels, 6 Wheeler Material Stainless Steel Operation Self-Loading and Discharge Hand Driving LHD or Rhd Max. Operation Ability 65000m2/H Max. Working Width 2700mm Auxiliary Engine Famous International Brand or Chinese Brand Paint Color and Logo Designed According to Customers Transport Package Naked Packing Specification 9m3, 9cbm Trademark CLW Origin Suizhou, China HS Code 87059099 Production Capacity 500 Units Per MonthProduct Description
China Dongfeng 9cbm/m3 High Quality Price Ratio Power Plant Coal Mining Area Ash Dust Suppression Vacuum Suction Road Cleaning TruckProduct Advantages
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system.
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
6. Certification: ASM, ISO, BV, SGS, CCC etc.
Product Specification
| Product Name(mm) | Dust Vacuum Truck | Outline size(mm) | 8900*2600*3300 |
| Color | White | Engine Power(kw) | 170 |
| Total Mass(kg) | 7360 | Engine displacement(ml) | 3200 |
| Rated Mass(kg) | 1830 | Vehicle weight | 3800 |
| Allowable passenger | 3 | Warranty | 1 years |
| Tire specification | 10.00R20 | Tire numbers | 7 (including 1 spare tire) |
| Fuel type | Diesel | Garbage bin volume(cbm) | 7 cbm (stainless steel) |
| Sweep rate | 99% | Cleaning width (mm) | 2100-2700 |
| Cleaning operation speed (km/h) | 5-20 | Maximum diameter of inhaled particles | ≥50mm |
| Maximum cleaning capacity (m2/h) | 65000 | Maximum Speed (km/h) | 95 |
Reference Photos
Application
Working Scene

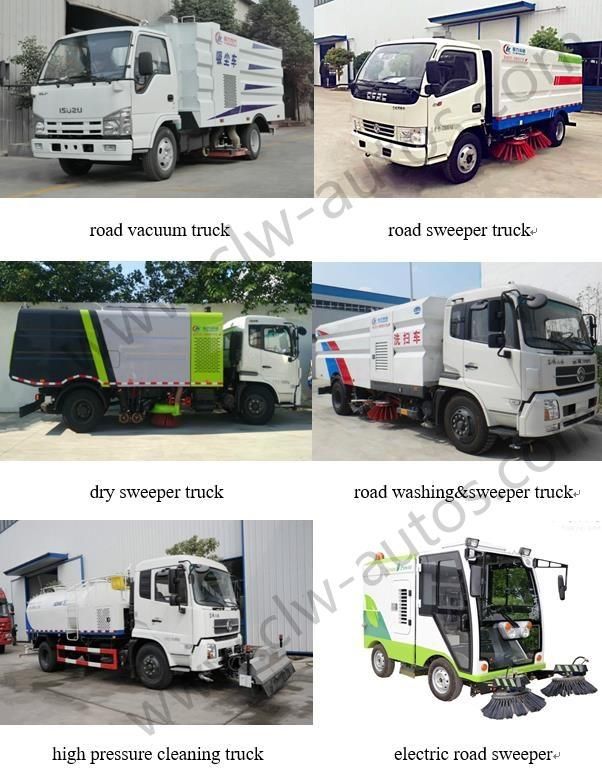

Other Related Road Cleaning Trucks
