• Model NO.：CLW5086GKC
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Truck Brand：Isuzu,Dongfeng,Sinotruk HOWO,Foton,Shacman
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Turing Angle：360 Degree
• Working Height：22 Meters
• Platform Loading Capacity：220kg
• Arm Type：Telescopic
• Delivery Time：30 Days
• User Manual：Yes
• Warranty：1 Year
• Logo：as Per Customer′s Request
• Transport Package：Bulk Ship, RO-RO
• Specification：22meters
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

ParameterOverall dimension (Length*width*high)(mm)9500×2500×31500Total Mass(kg)8500Kerb Mass(kg)8050Wheel base(mm)4175Front/rear tract base(mm)1385/1425Approach/rear angle 27/11Max speed(km/h)95Fuel type dieselEngineEngine type ISUZUDisplacement standard EURO 4ChassisChassis type isuzuDrive system 4x2Tire type 8.25-16Number of tire 6Front/rear axle loading(kg) 1015/2025passengers 2+3Cabin Single, with 2 passengers allowed, with Air conditionerSpecial parameterWorking platform rating loading(kg)200Working Height (m)22Max working radius(m)9.67Boom type  three section knuckle armMax hook height(m)9.9Loading of hook(kg)800-1000Max rotation angle(°)360
Reference Photos

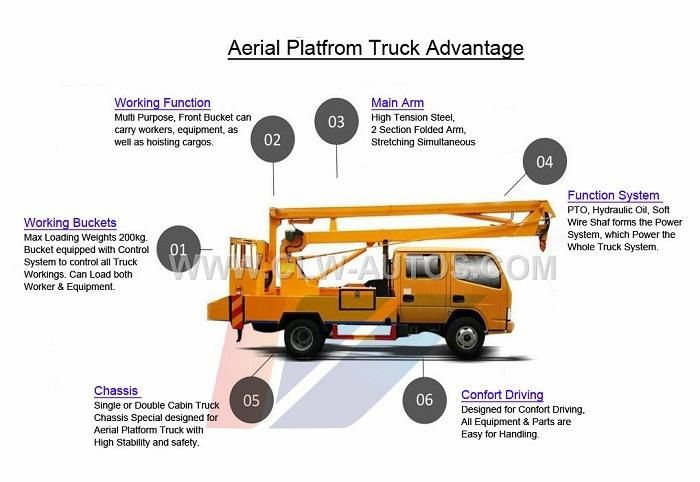

Structure Diagram

Working Scene

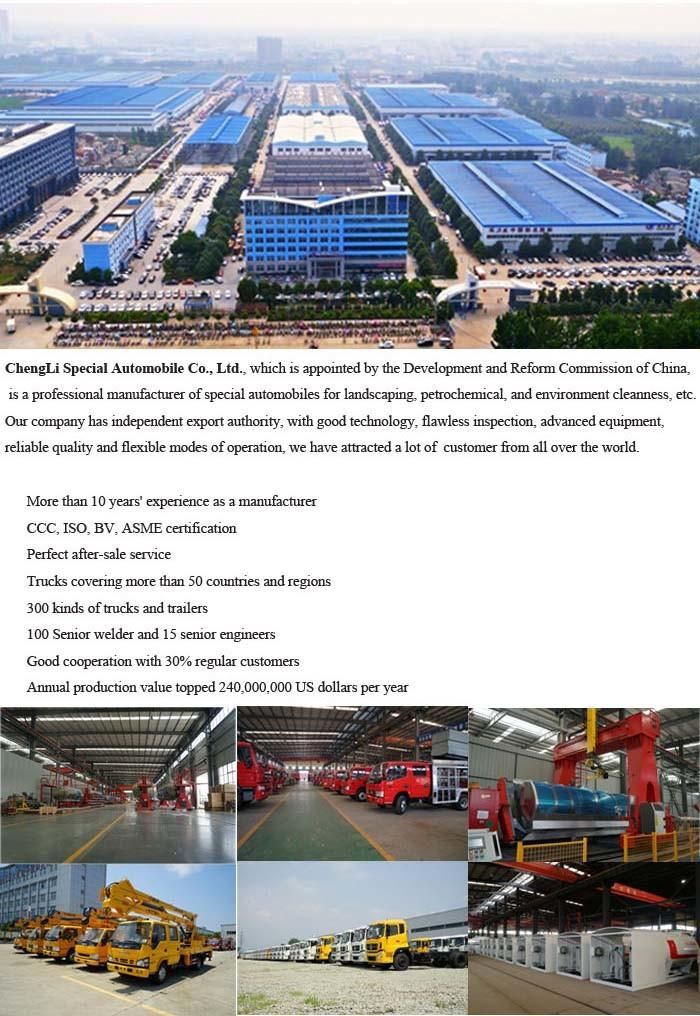

Company Introduction

Certificates


Our Overseas Exhibition
