• Model NO.：ZZ11
• Drive Wheel：4x2
• Hoesrpower：251-350hp
• Condition：New
• Transport Package：Nude Waxed
• Specification：heavy duty truck
• Trademark：SINOTRUK HOWO
• Origin：China
• HS Code：8704224000
• Production Capacity：5000pieces,Month

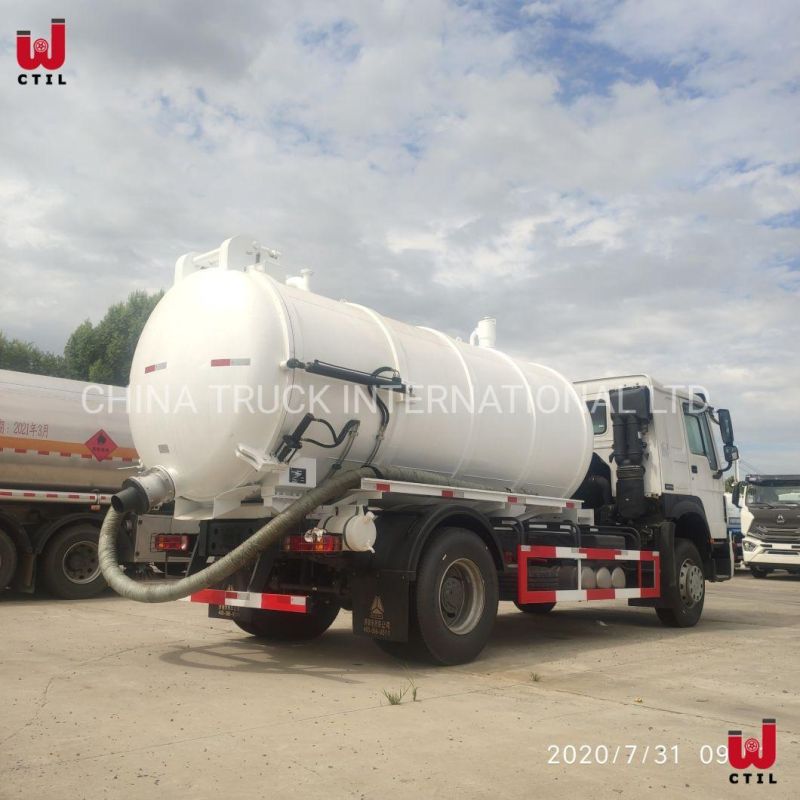

Sewage Suction Vacuum Truck Technical SpecificationProduct NameSino howo
SEWAGE SUCTION TRUCKChassis Model ZZ4257S3241WFuel typeDieselEmission StandardEuro 2Cabin HW16Whole Vehicle
main dimensions (mm)Overall dimensions (LxWxH)9500*2400*3300Wheel baseoptionalMin. ground clearance 480Weight data (kg)G.V.W25000Curb weight1200Max payload16000Whole vehicle
main performanceMax. speed (km/h)95Max. slope of climb (%)30Engine


 ModelWD615 47Maximum power336HPNumber of cylinders6Displacement (ml)9.726Gear boxModel9Number of gears9 forward gears &1 reverse  Axle Front Load capacity (ton)7Rear Load capacity (ton)18Steering Wheelleft/right hand driveLHD,RHDBrake systemService brake Air brakingElectric deviceRated voltage24VTyres&Quantity 10.00-20& 6+1Sewage Suction Vacuum Truck Special Tank DescriptionTank

 Material:high quality carbon steel
Structure:welding,vacuum tank,Cylindricalcapacity(L)6000thickness of material6mmpump

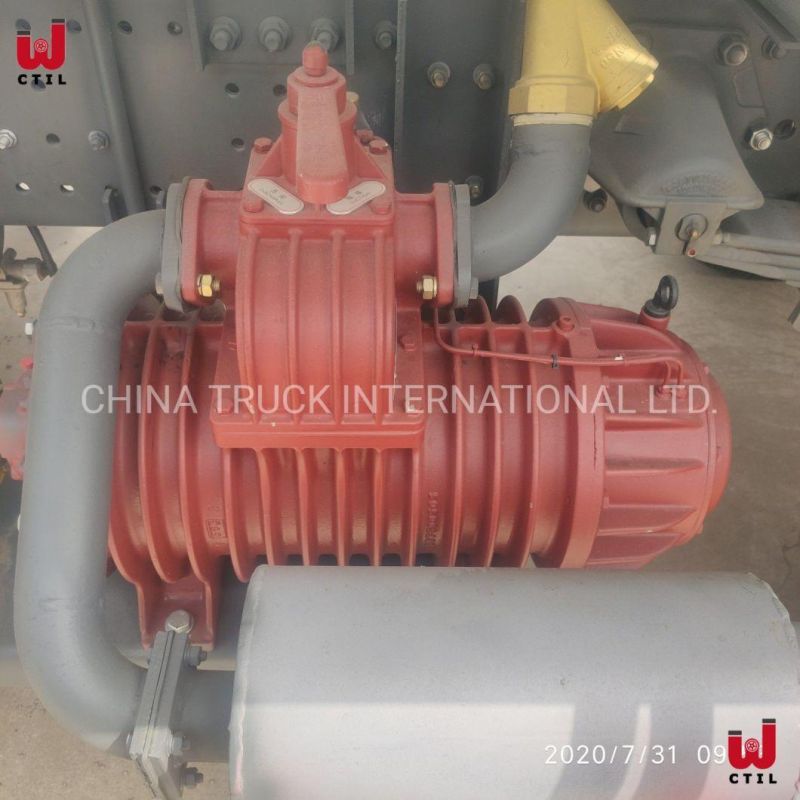

 typevacuum pumpmodel65QZ-40/45Nflux(L/S)65rating speed(r/min)500shaft power(kw)4featuresLow speed,low fuel consumption,low noise,high vacuum,high efficiencymanufactureHangzhou Weilong Pump Co.,Ltd,(Famous in China)pipe65-100mm suction and discharge pipespecial functionsuction time ≤ 5min,
effective suction range ≥ 8,
 max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45equipmentEquipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment

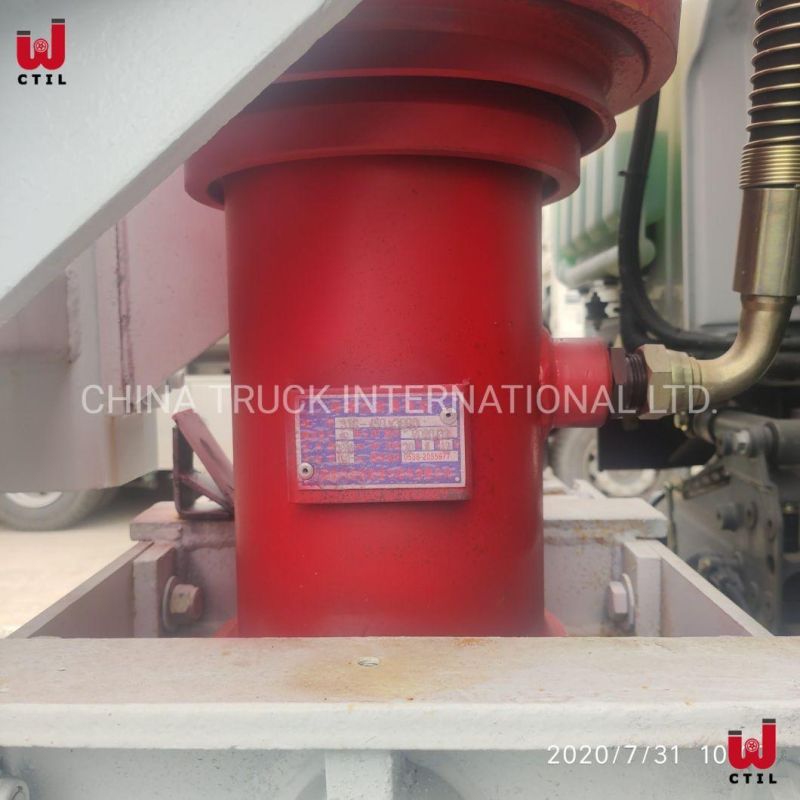

Time for full suction less than 5minhydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc

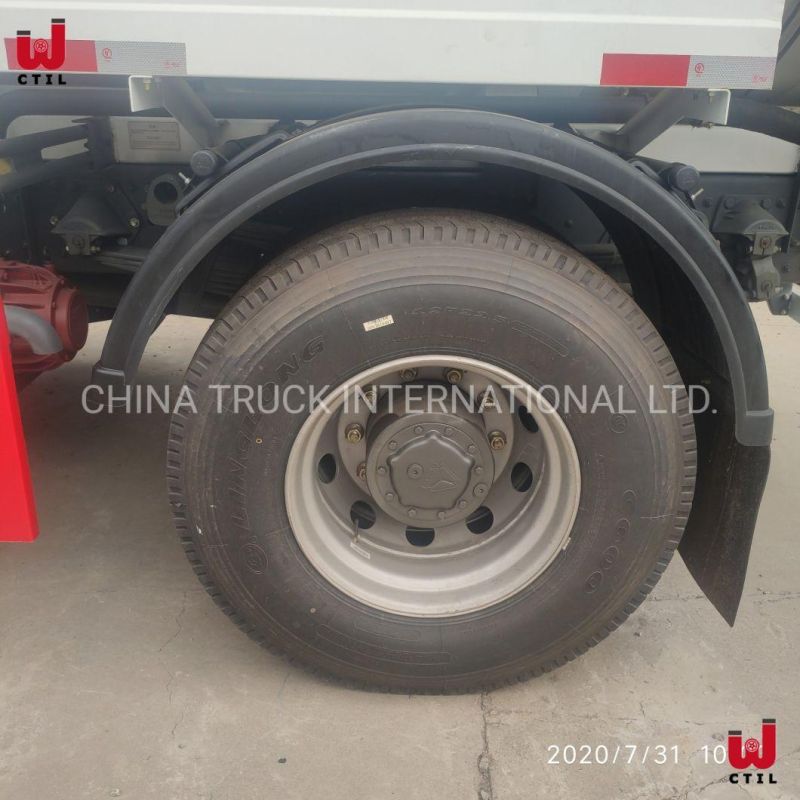

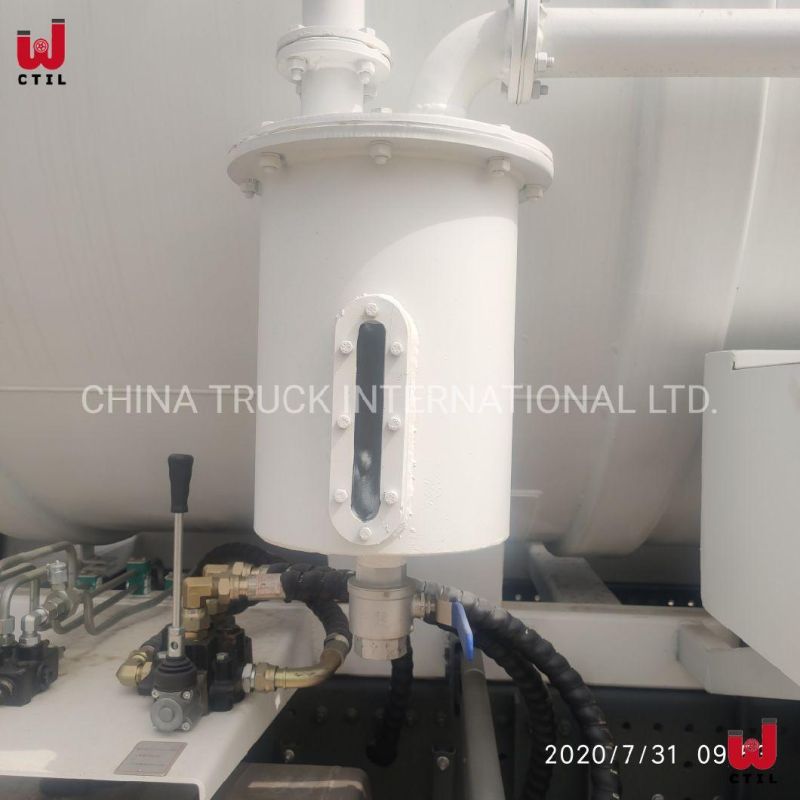

2.Deatails Photo





3. Our Factory



4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO


5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

6. Main Products



7. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

8. Company information
China Heavy Duty Truck Import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
We have more than 20 years of experience in exporting trucks. If you want to buy any truck, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
