Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Garbage Compactor Truck
  • Certification：ISO9000, CCC, CE
  • Volume：3001-6000L
  • Emission Standard：Euro 4
  • Transmission Type：Manual
  • Payload：5t

Base Info

  • Model NO.：CLW5086LJC
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Isuzu
  • Models：Small
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.8-0.9 Ton,M3
  • Compression Ratio：3-4
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23 S
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
  • Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm

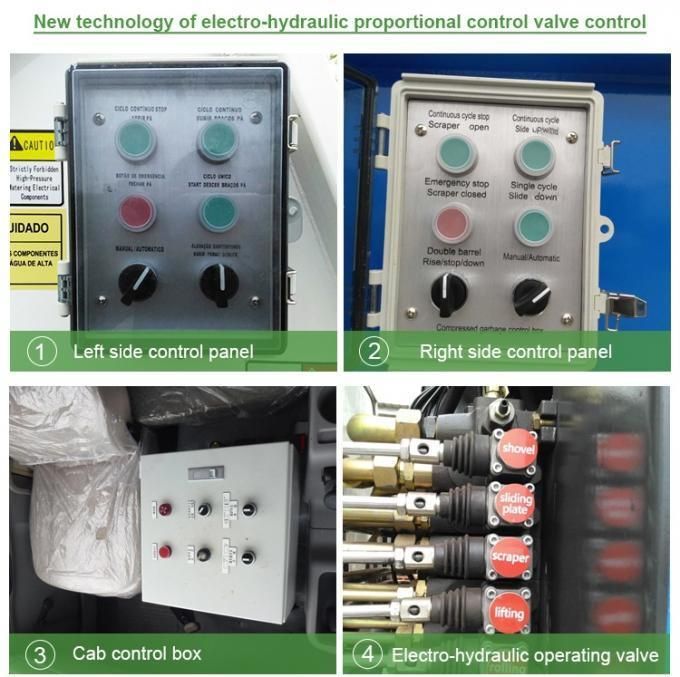

  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Warranty：1 Year
  • Transport Package：Naked Pack with Wax
  • Specification：6520*2100*2600 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension6520×2100×2600(mm)Gross Vehicle Weight7300(Kg)Curb Weight5050(Kg)Chassis SpecificationChassis BrandISUZUDrive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModel4JB1CN/98HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS.Power72KW/98HPEmission standardEURO 4Displacement2771(ml)Fuel typeDieselGearboxMSB-5MT, 4Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3360mmFront/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/12°Tire7.00-16, 6pc with 1 spare tireMax Driving Speed110(km/h)Upperstructure SpecificationCompector BoxBox Volume6CBMBox Capacity4TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration
  1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

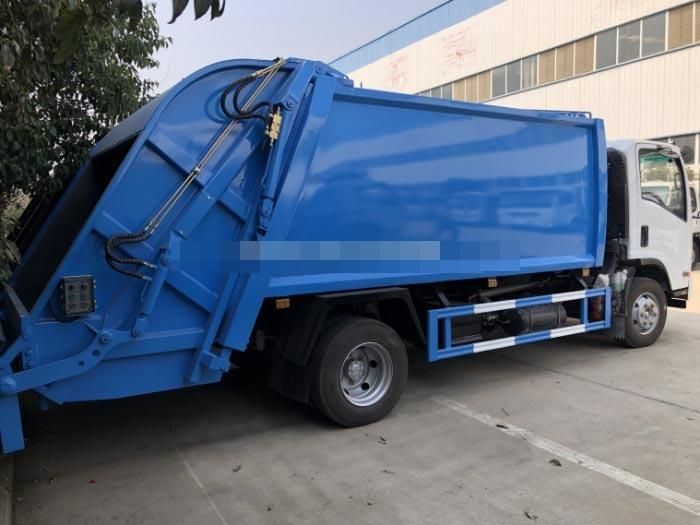

    Reference Photos
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

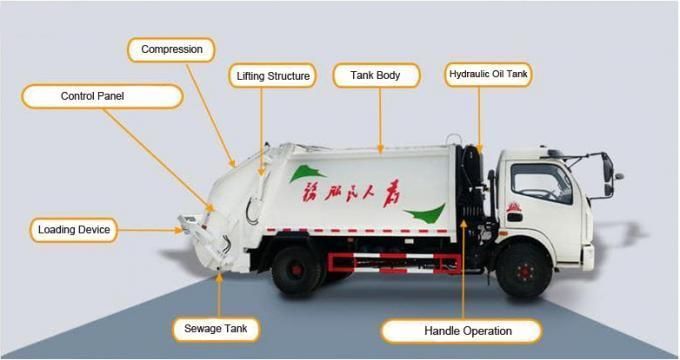

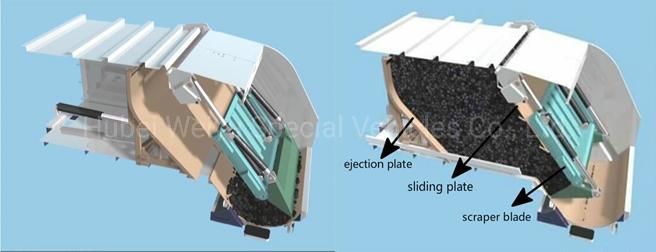

    Main Working System
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

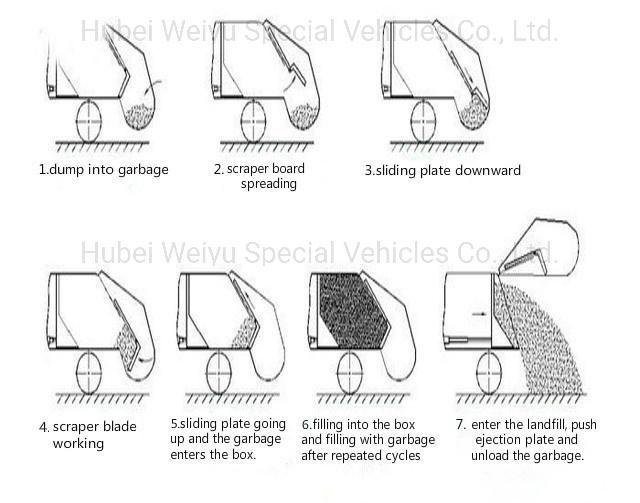

    Garbage Loading and Unloading Process
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

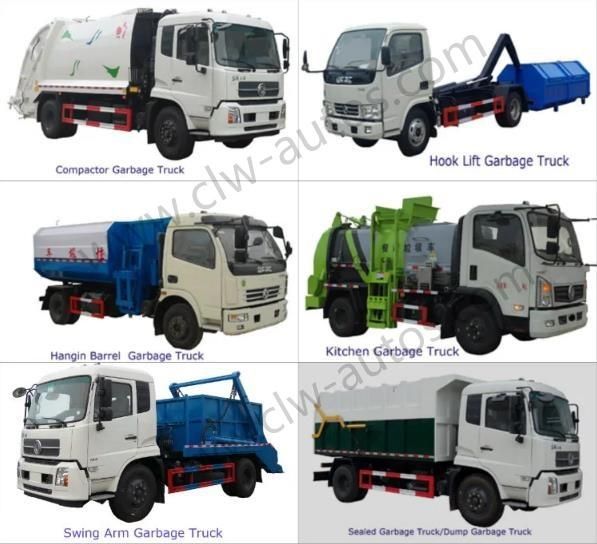

    Various Kinds of Garbage Trucks
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

    Company Introduction
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

    Certificates
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

    Our Overseas Exhibition
    Hot Sale Japanese Isuzu 4*2 5m3 5cbm Self Compressed Waste Removal Vehicles 4t 5tons Compactor Garbage Truck

    After-sales Service

    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
