• Model NO.：CLW5086GGC
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P3, P4, P5, P6
• Power Supply Mode：Own Generator-powered
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, etc.
• Drive Model：4X2, 6 Wheels
• Wheelbase：3300mm, 3360mm, 3800mm, 4500mm, 4700mm, etc.
• LED Board Type：One-Side Screen, Two-Side Screen, Three-Side Screen
• Screen Size：4m2-12m2, as Per Chassis Size
• Pixel Pitch：4mm, 5mm, 6mm; P4 P5 P6
• Picture Tube Chip Color：Full Color and Monochrome
• Control Mode：VGA Synchronous
• Color：White; Blue; Green; Yellow; Customized
• Warranty：1 Year
• Transport Package：with Foam Cover on LED Screen
• Specification：5200*1800*2750 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5200x1800x2750(mm)Gross Vehicle Weight8000(Kg)Curb Weight2560(Kg)Chassis SpecificationChassis parametersChassis BrandFoton YulingCabinSingle, Left Hand Driving, Radio + MP3EngineModelFoton Cummins ISF3.8s4R154, 4 CylindersPower82KW/112HPEmission standardEURO 3Displacement1.499LFuel typeDieselGearboxZF 6S500, 5 Forward & 1 Reverse GearFront and Rear Axle load1.5T/3TWheel base2600(mm)Overhang( Front/Rear)1095/1420(mm)Angle(Approach/departure)21/17 (°)Brake SystemAir brakeSteering GearPower AssistantTire7.00R16, 6 Pieces with 1 Spare TireMaximum speed98(km/h)SuperstructureLED Screen
 PixelOutdoor full colour display screen
P6Single module size192*192(mm)Quantity1pc, front sideDimension(LxW)3840*1728(mm)DescriptionHydraulic lifting, Waterproof, shake-proof, high brightness, long lifeScreen Lift Height1.3-1.5(m)Roller ScreenDimension(LxW)3840*1728(mm)No. of scrolling posters5-7pcsStageSize9.6m2unfold modeHydraulic control


General configuration

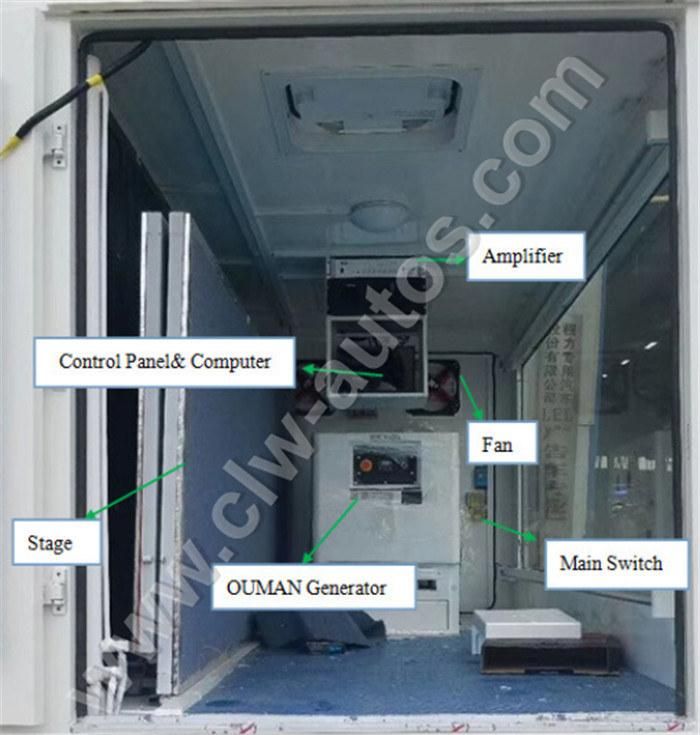

 1. OUMA brand silent diesel generator, 8KW2. One set industrial computer with control system3. Sound system: Loudspeaker 2pcs, amplifier 1pc4. Internal and external electrical distribution box.5. Circulating ventilation and cooling systems.6. 5CM composite steel frame body.7. Aluminum patterned floor.RemarksHydraulic legs 4pcs included

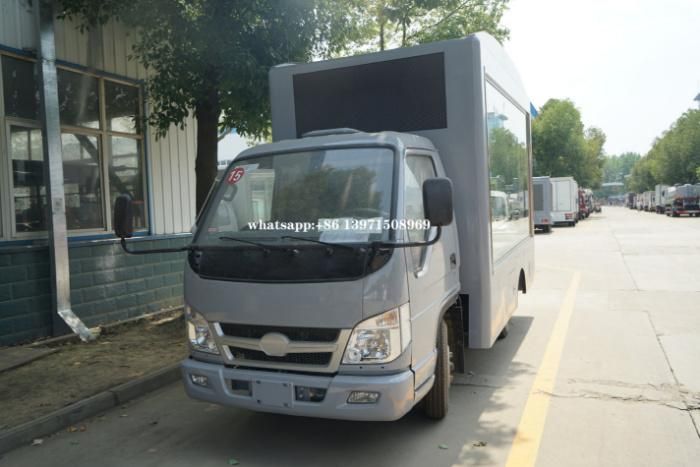

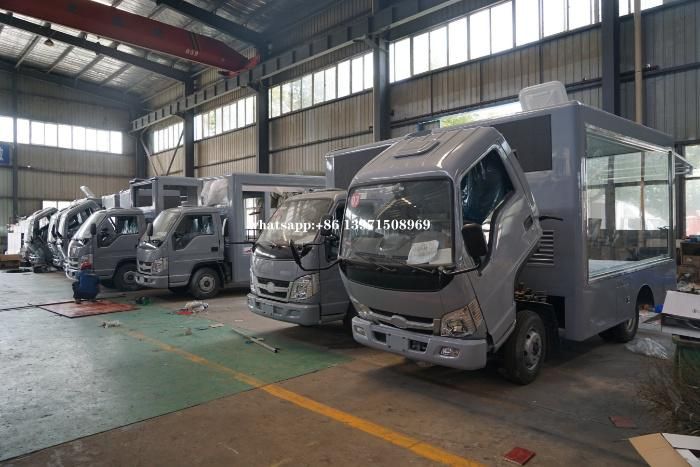

Reference Photos

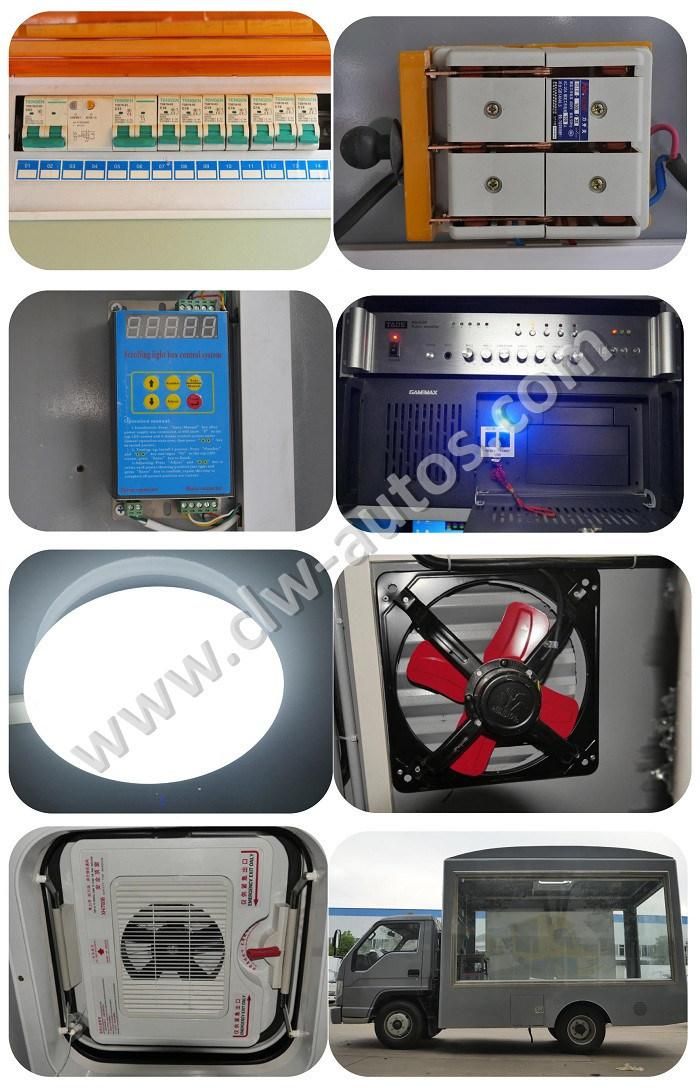

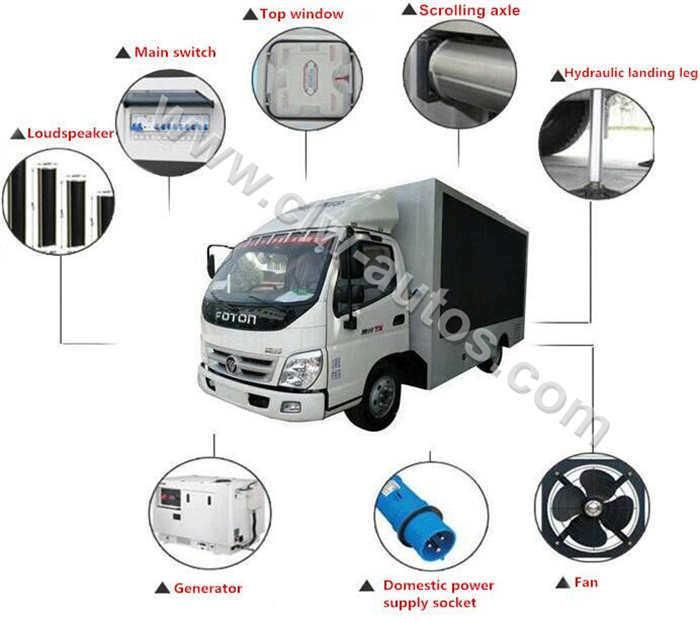

Product Details

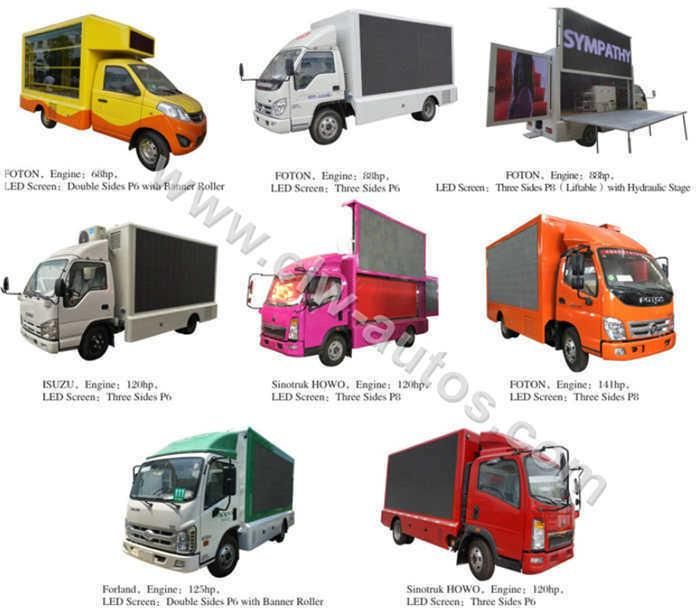

Various Kinds of Advertising Trucks
