• Model NO.：CLW5089SSC
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＜4L
• Condition：New
• Chassis Brand：Dongfeng,Sinotruk,Foton,Isuzu,FAW, etc
• Drive Mode：4*2 4*4 6*4 8*4, etc.
• Curb Weight：3800(Kg)
• Engine：180HP
• Tank Material：Q235B and Stainless Steel for Optional
• Tank Size：8.5cbm; 8cbm; 9cbm; 10cbm; 12cbm, etc.
• Tank Capacity：7t; 8t; 9t; 10t, 12t; 15t
• Tank Thickness：4mm; 5mm; 6mm
• Water Pump Flow：70000 Cbm,H
• Water Diversion Time：Less Than 15min
• Water Suction Depth：7m
• Water Sprinkle Width：15m
• Cannon Range：30m
• Warranty：1 Year
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：8.5cbm, 9cbm, 8500Liters, 8Tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension8980×2490×3080(mm)Gross Vehicle Weight11005(Kg)Curb Weight3800(Kg)Chassis SpecificationChassis BrandDongfeng TianjinDrive model4*2CabinSingle, Left Hand DrivingNumber of Passengers3 (2 in cabin, 1 in working platform)EngineModel4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower132KW/180HPEmission standardEURO 3Displacement3775(ml)Fuel typeDieselGearbox6Forwards & 1ReverseBrake SystemAir breakWheel Base4700(mm)Front/Rear Axle Loading4500/9000(Kg)Tire9.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationWater TankerDimension8.5cbmMaterialQ235B carbon steelTanker volume8500LThickness of Tanker4mmWater Pump Materialcarbon steelVertical suction7mSprinkling width15mRange of Water Gun30mPump Flow20m³/hRange of Water Pump90mOther ConfigurationHigh quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.OptionsCaution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

Reference Photos

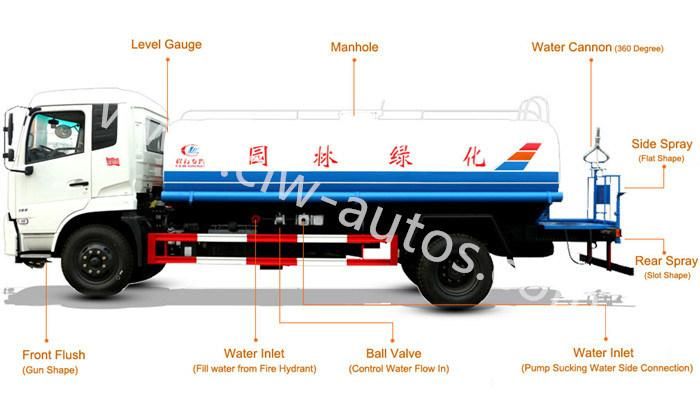

Main Structure Diagram

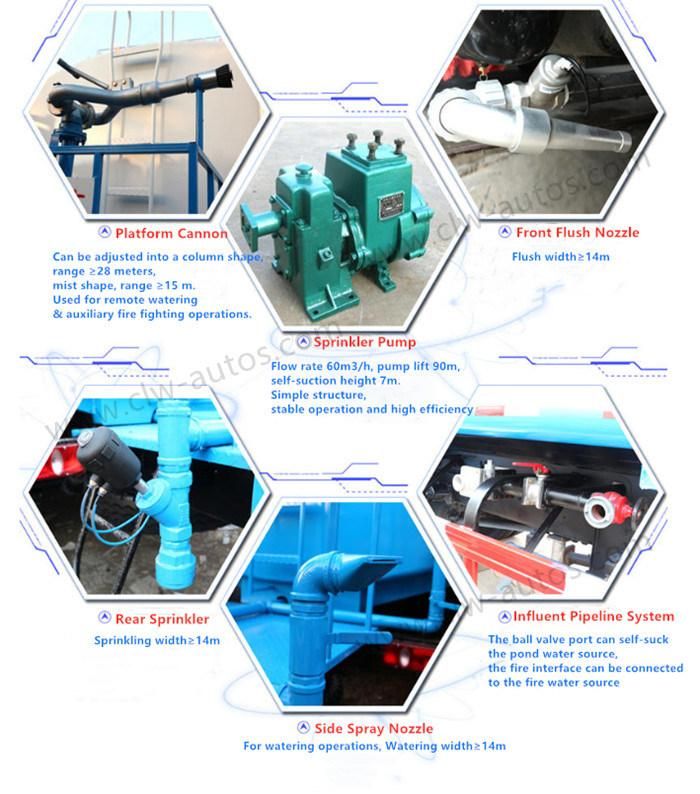

Main Parts

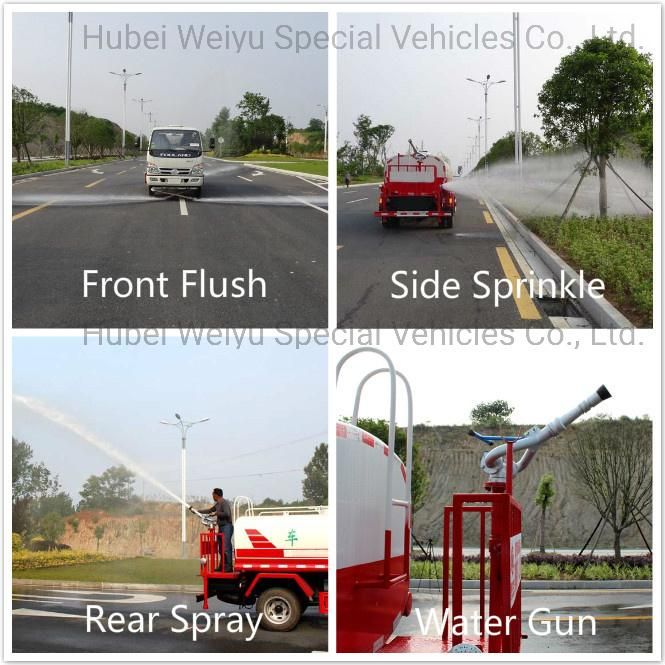

Work Scene

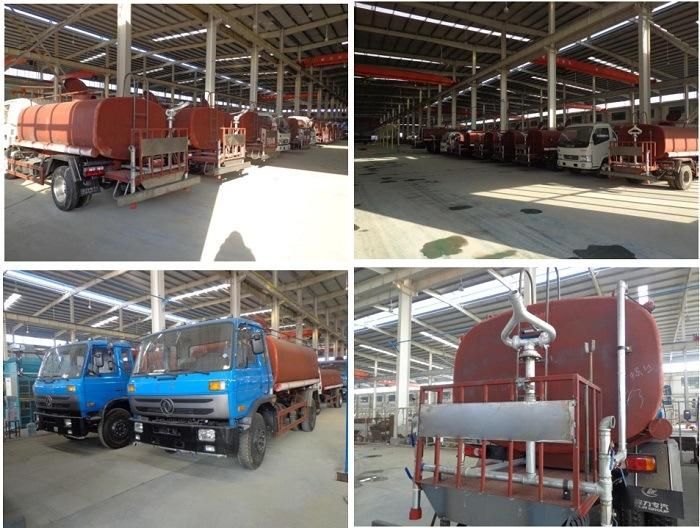

Factory Show


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
