• Model NO.：CLW5088XSC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, FAW, etc.
• Engine Power：Yuchai 196HP
• Water Tank Capacity：4cbm
• Dust Tank Capacity：5cbm
• Material：Stainless Steel
• Auxiliary Engine：Jmc 87HP
• Sweeper：2 Units
• Water Cleaning System：Front Flush, Side,Rear Spraying
• Operation：Hydraulic Control
• Monitor Inside Cabin：Yes
• Water Level Alarm System：Yes
• Operating Manual：Yes , English Version
• Logo or Paint：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：5cbm, 9cbm, 5Tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units,Month

Cabin

Driving type 4x2 LHD, single row, with A/C

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7000×2200×2700Wheel base (mm)3800Weight in KGSTare Weight7350payload5000Front axles loading capacity4000kgRear axles loading capacity7000kgMax. driving speed(km/h)98EngineBrandYuchaiHorse Power(HP)196Emission standardEuro 3Gearbox6 forwards & 1 reverseTire8.25R20,6 tires with one spareMax. Cleaning Width3.2mSweeper Speed3~20 km/hMax. Cleaning Capacity56000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Water tank4000LitersDust tank5000LitersAuxiliary EngineModel&ManufacturerJMCTypeFour-injection,water-cooling,turbo-charged,diesel enginePower87hp/64kwOil typeDiesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

2 brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

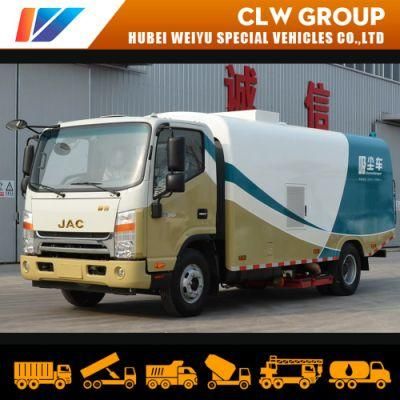

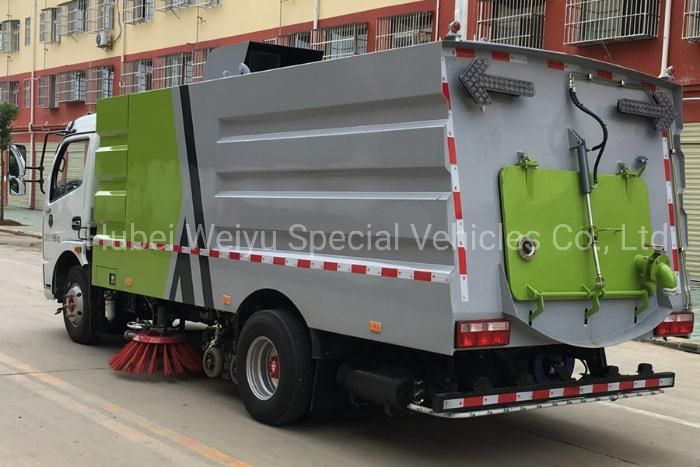

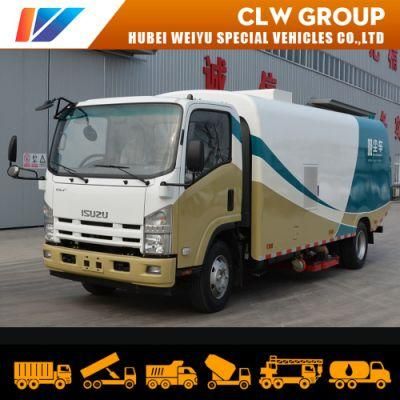

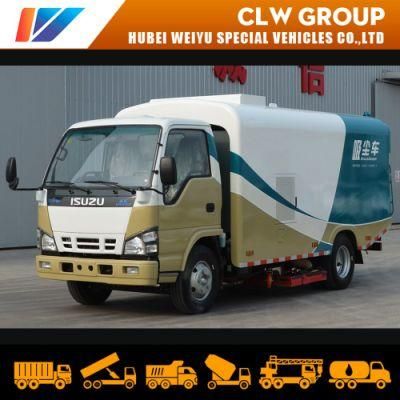

Reference Photos

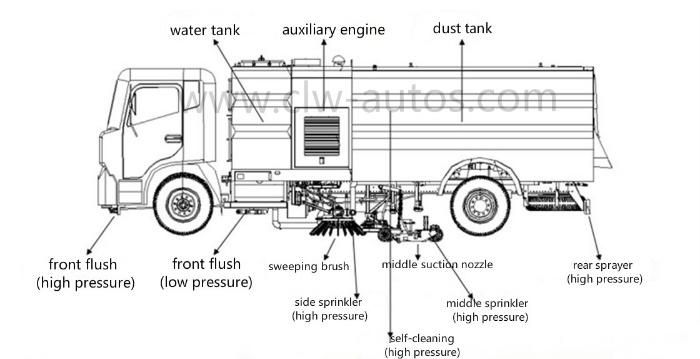

Main Structure Diagram

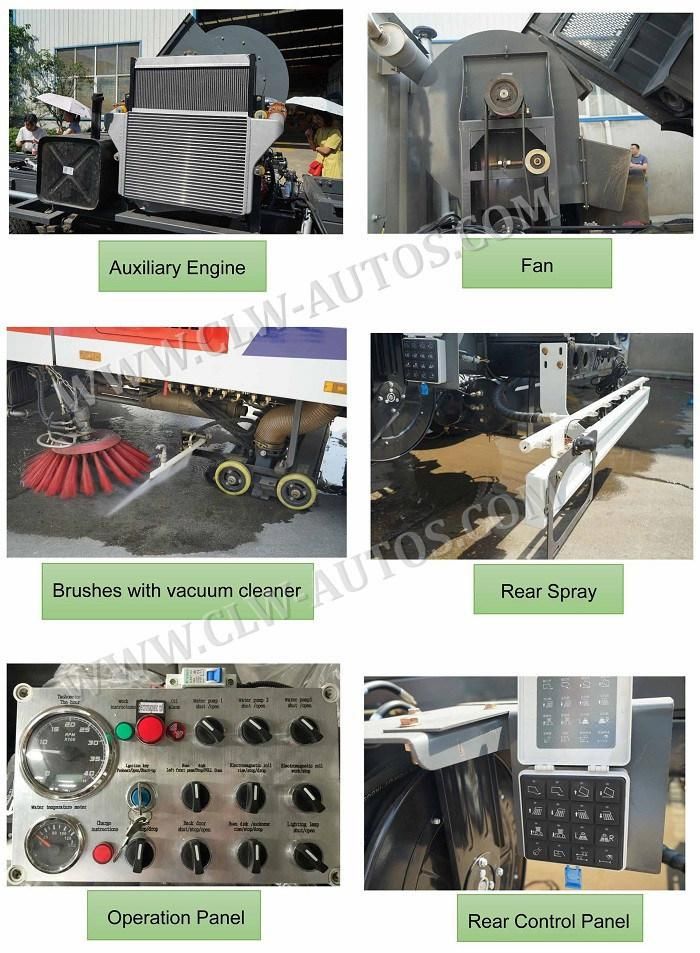

Main Parts

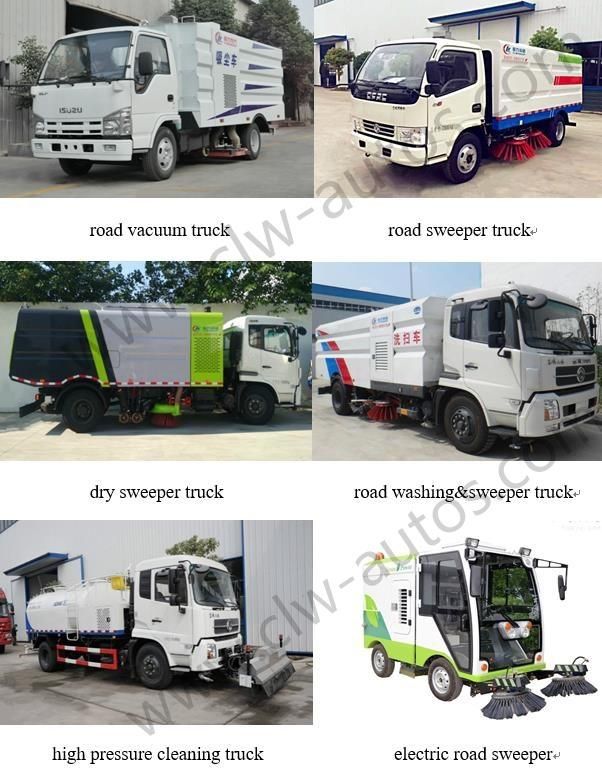

Related Road Cleaning Trucks
