• Model NO.：CLW5088XSC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, FAW, etc.
• Engine Power：Cummins 180HP
• Water Tank Capacity：9cbm
• Dust Tank Capacity：7cbm
• Material：Stainless Steel
• Auxiliary Engine：Cummins 170HP
• Sweeper：2 Units
• Water Cleaning System：Front Flush, Side,Rear Spraying
• Operation：Hydraulic Control
• Monitor Inside Cabin：Yes
• Water Level Alarm System：Yes
• Operating Manual：Yes , English Version
• Logo or Paint：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：7cbm, 9cbm, 16cbm, 8Tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Cabin

Driving type 4x2 LHD, single row, with A/C

Vehicle Main DimensionsOverall dimensions (L x W x H)mm8650×2490×3450Wheel base (mm)5000Weight in KGSTare Weight12050payload8000Front axles loading capacity5000kgRear axles loading capacity10000kgMax. driving speed(km/h)98EngineBrandCumminsHorse Power(HP)180Emission standardEuro 3Gearbox8 forwards & 1 reverseTire9.00R20,6 tires with one spareMax. Cleaning Width3.5mSweeper Speed3~20 km/hMax. Cleaning Capacity70000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Water tank9000LitersDust tank7000LitersAuxiliary EngineModel&ManufacturerCumminsTypeFour-injection,water-cooling,turbo-charged,diesel enginePower170hp/125kwOil typeDiesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

2 brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

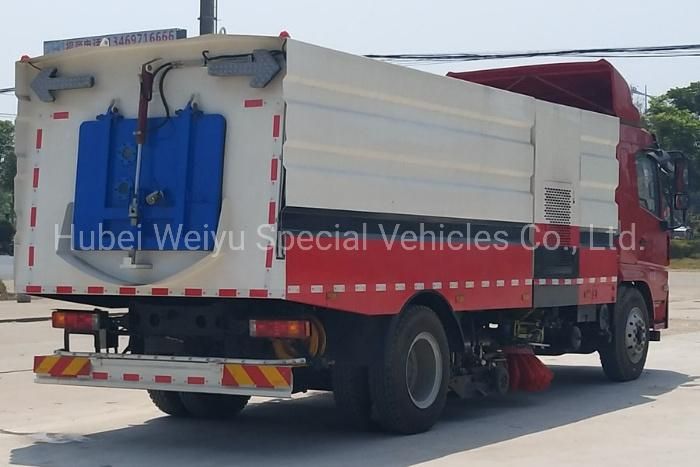

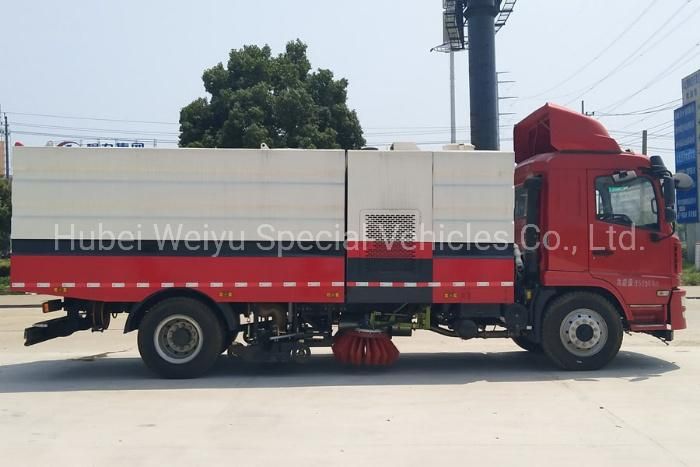

Reference Photos

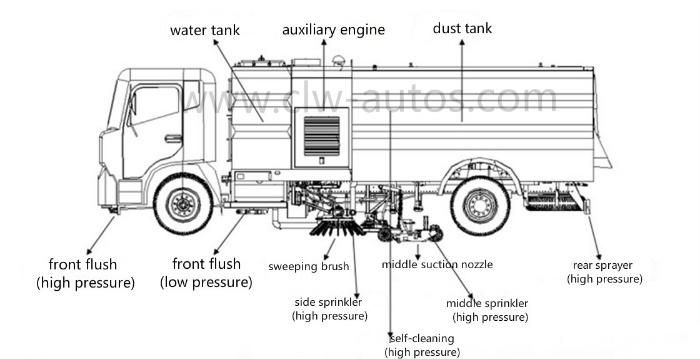

Main Structure Diagram

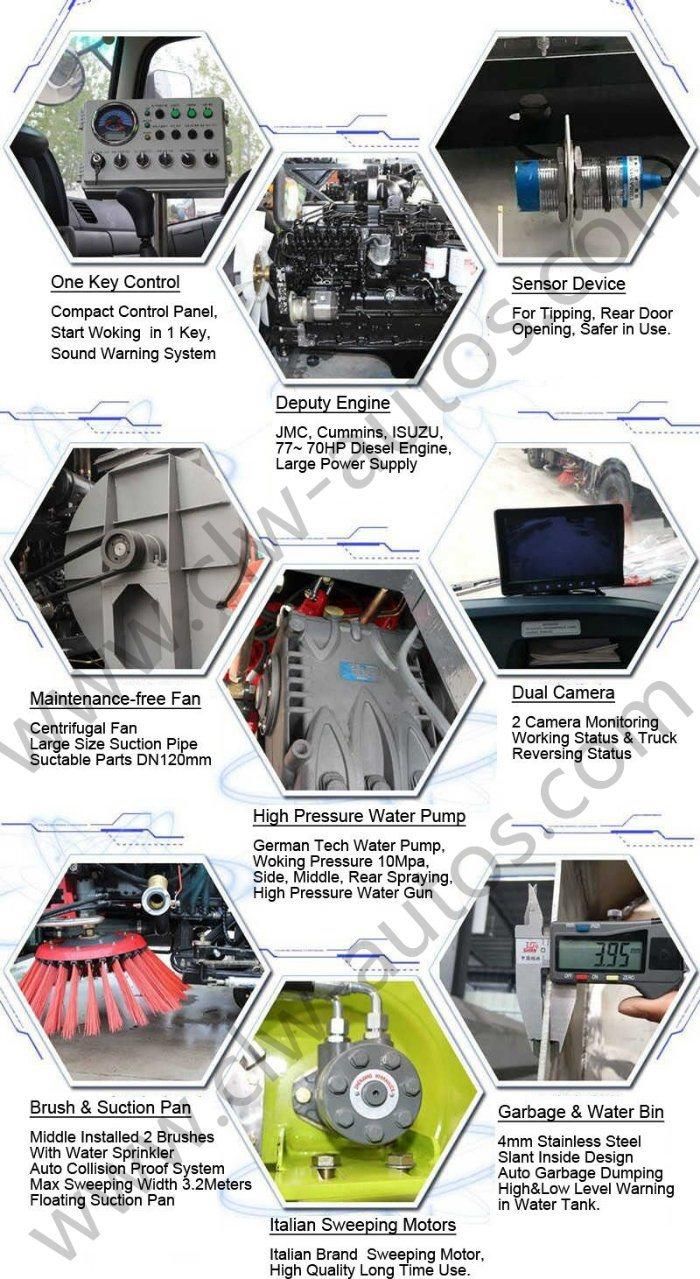

Main Parts

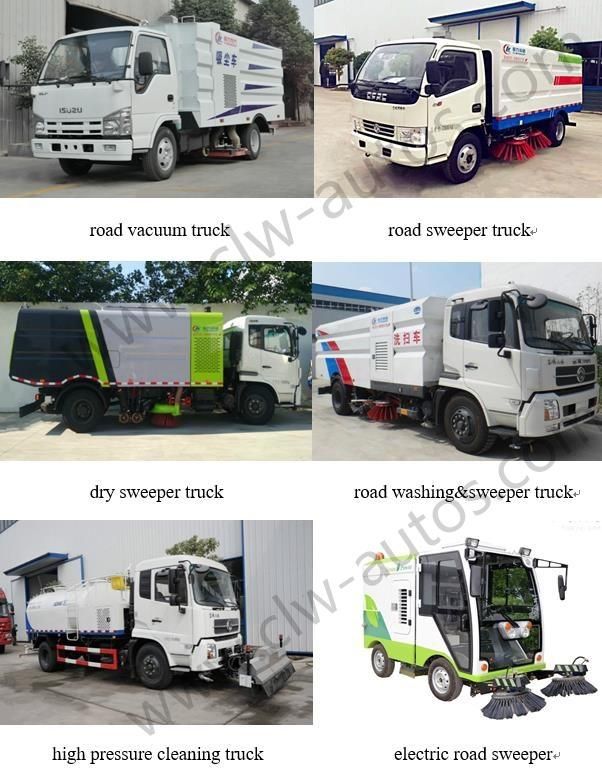

Related Road Cleaning Trucks
