• Model NO.：CLW5088XSC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, FAW, etc.
• Engine Power：Isuzu 190HP
• Water Tank Capacity：5cbm
• Dust Tank Capacity：4cbm
• Material：Stainless Steel
• Auxiliary Engine：Cummins 140HP
• Sweeper：2 Units
• Water Cleaning System：Front Flush, Side,Rear Spraying
• Operation：Hydraulic Control
• Monitor Inside Cabin：Yes
• Water Level Alarm System：Yes
• Operating Manual：Yes , English Version
• Logo or Paint：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：4cbm, 5cbm, 9cbm, 5Tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Cabin

Driving type 4x2 LHD, single row, with A/C

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7600×2300×2700Wheel base (mm)4175Weight in KGSTare Weight7350payload4000Front axles loading capacity4000kgRear axles loading capacity7000kgMax. driving speed(km/h)110EngineBrandIsuzuHorse Power(HP)190Emission standardEuro 4Gearbox5 forwards & 1 reverseTire235/75R17.5, 6 tires with one spareMax. Cleaning Width3.5mSweeper Speed3~20 km/hMax. Cleaning Capacity56000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Hopper5000liters,double layer,Stainless steel insideWater tank4000LitersAuxiliary EngineModel&ManufacturerCumminsTypeFour-injection,water-cooling,turbo-charged,diesel enginePower140hp/103kwOil typeDiesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

2 brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

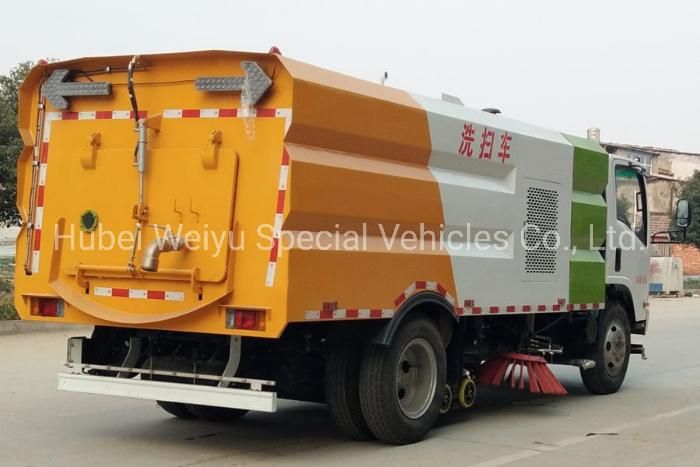

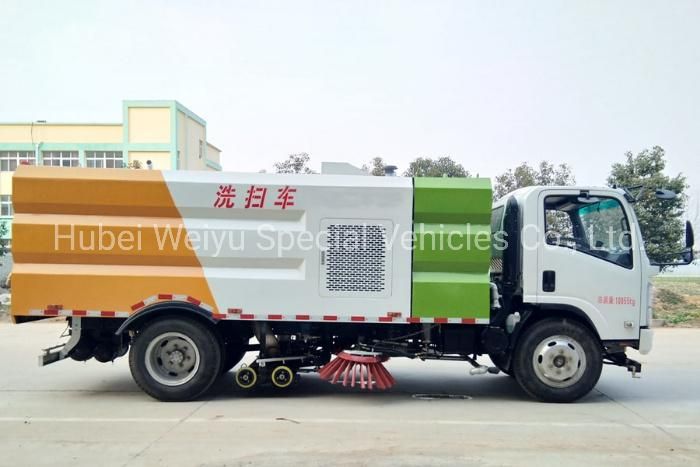

Reference Photos



Main Structure Diagram

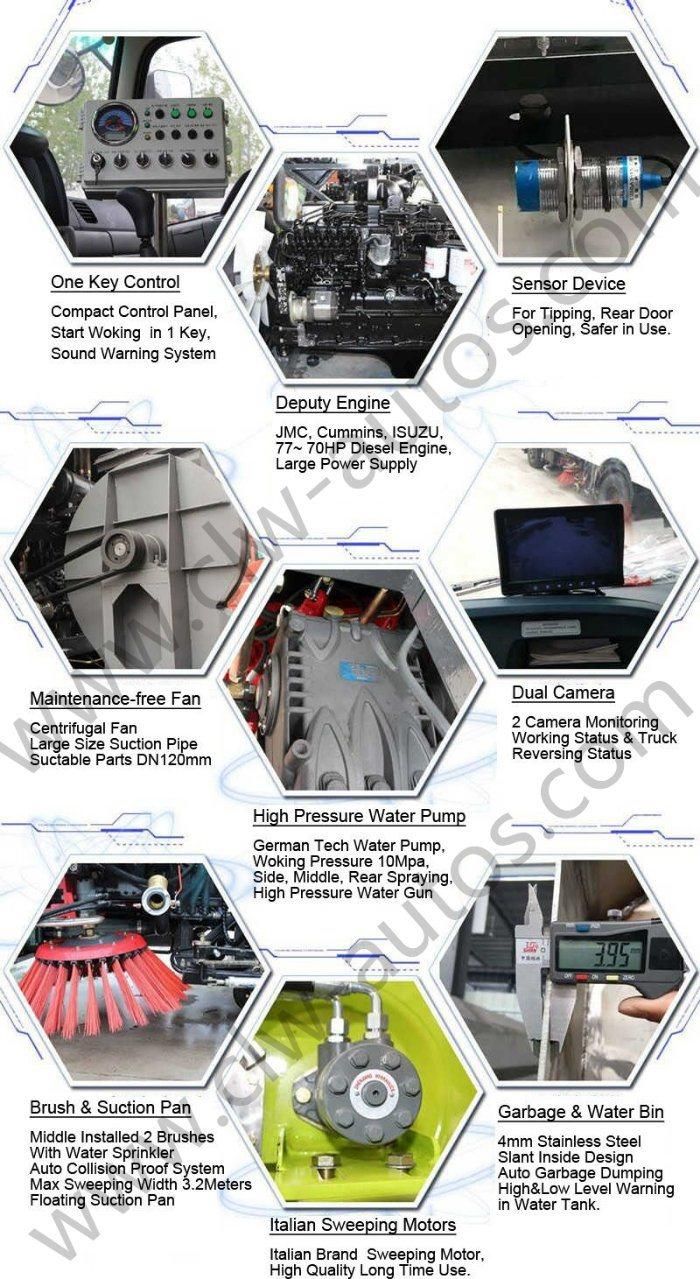

Main Parts

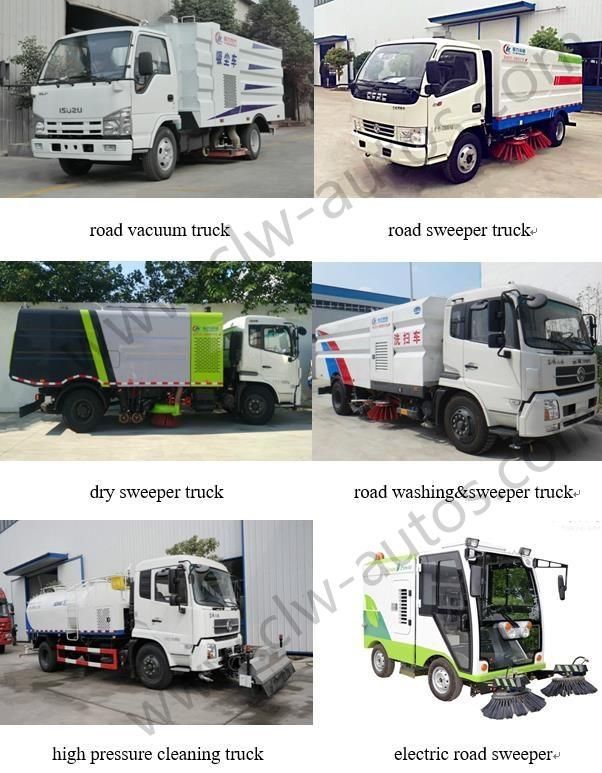

Related Road Cleaning Trucks


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
