• Model NO.：CLW5069cb
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＞8L
• Condition：New
• Loading Capacity：12000 Liters,12ton,12cbm,12m3
• Material：Carbon Steel
• Tank Thickness：4mm,5mm, 6mm
• Wheel Base：3950 mm
• Engine：Diesel, Yuchai
• Horsepower：160 HP
• Water Pump：China Famous Brand
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• Tire：9.00-20
• Logo：as Per Customer′s Request
• Water Pump Flow：20cbm,Hour
• Warranty：One Year
• Cannon Range：30 M
• User Manual：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12Ton, 12Tons, 12000liters, 12cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x2ChassisBranddongfeng Curb weight(kg)6840  kgLoading weight(kg)8965 kgGross weight(kg)16000  kgWheelbase(mm)4500 mmDimensions(mm)7000*2500*3200 mmFront Loading Capacity (Ton)4.5Rear Loading Capacity (Ton)9Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity6 pcs with one spare tireSpecifications9.00-20TransmissionManual type,5 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandWeichaiFuel typeDieselPower(kw)118 kwHorsepower(HP)160Cylinder number4Emission standardEuro 2UpperWater tankCapacity(cbm/tons)11/11Tank Dimension(mm)3500*1700*1100Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

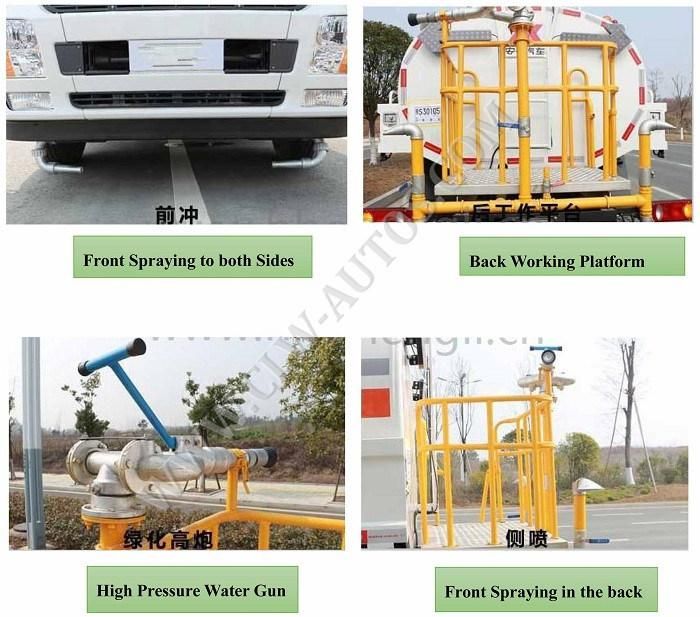

Parts Photos

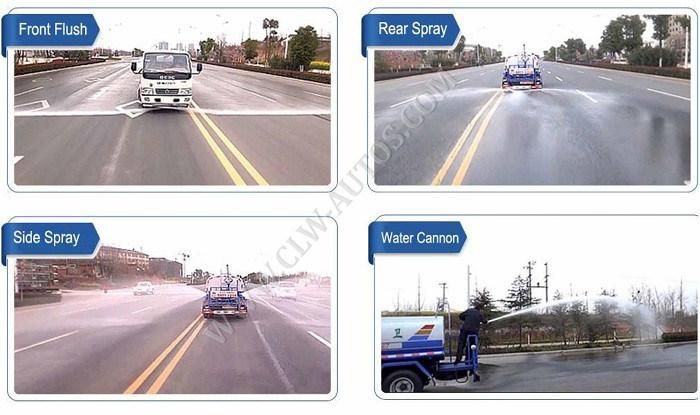

Working Show

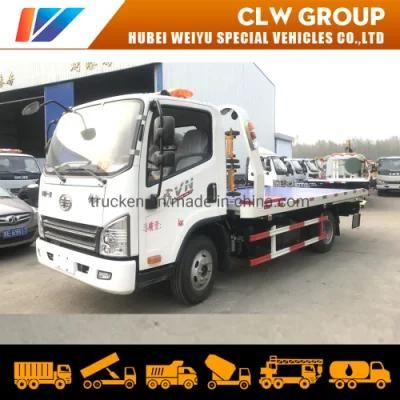

Other Special Truck Series
