• Model NO.：CLW5078kg
• Maximum Horsepower：140HP
• Condition：New
• Loading Capacity：6cbm
• Material：Manganese Steel
• Tank Thickness：5mm,6mm
• Wheel Base：4700 mm
• Horsepower：140 HP
• Gearbox：6 Forward, 1 Reverse
• Water Supply：400L

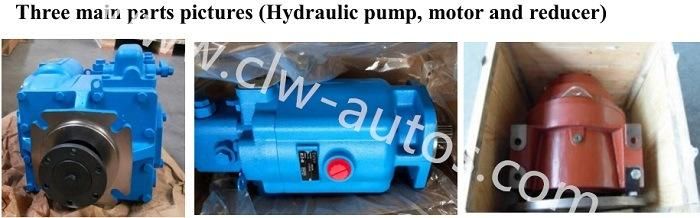

• Hydraulic Pump：Italy or USA Brand
• Motor：Italy or USA Brand
• Reducer：Italy or USA Brand
• Radiator：Chinese Famous Brand
• Logo：as Per Customer′s Request
• User Manual：Yes
• Warranty：One Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：6CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

CabinDriving type 6x4, LHDVehicle Main DimensionsOverall dimensions (L x W x H)mm7520×2500×3660Wheel base (mm)4700Wheel track (front/rear) (mm)1500/1860Approach/Departure angle(°)32/14Weight in KGSTare Weight8300payload7305Front axles loading capacity5000Rear axles loading capacity10000Max. driving speed(km/h)90EngineBrandyuchai Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)140Emission standardEuro IIGearbox6 forwards & 1 reverseSteeringLeft hand driveTire9.00R20  6 unit with one spare   Mixer DrumMixer Capacity6 cubic metersDrum thickness6mmBlade thickness4mmTanker Material:Q345 Carbon SteelFilling Rate(%)59Input Speed (m3/min)≥2.8Output Speed (m3/min)≥1.2Surplus Ratio≤0.5 Tanker Rotate Speed(rpm)0~17 Hydraulic PumpItaly Brand: PMPDrum Drive SystemHydraulic MotorItaly Brand: PMP Speed ReducerGermany Brand: ZF RadiatorKAITONG Water Tank Volume(L)400

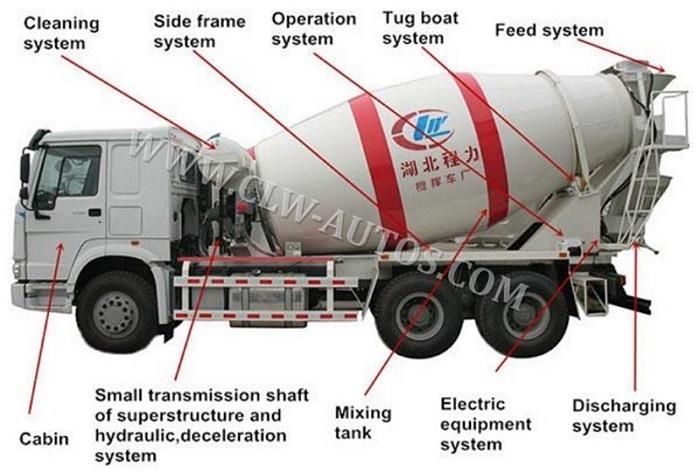

Truck Diagram

Workshop

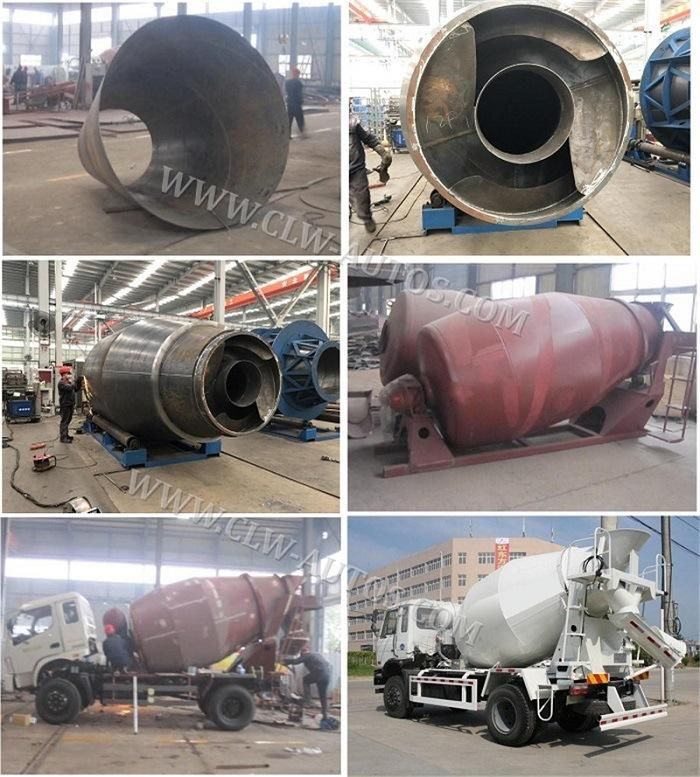

Production Procedure




Factory Overview


Overseas Exhibition and Local Support




Customer  Visiting







Contact info:
