• Model NO.：CLW5310TQZS5
• Brand：SINOTRUK
• Condition：New
• Purpose：Bus, Truck, Trailer Saving
• Gearbox：9 Forward & 1 Reverse
• Under Lift Capacity：30ton
• Max Lifting Height：12.3meters
• Crane Lift Capacity：30ton
• Hydraulic Tailgate：1200 mm
• Wire Rope：35 Meters
• Warranty：One Year
• Logo：as Per Customer′s Request
• Towing Fork：4 Sets
• Too Box：1 Set
• Auxiliary Lamp：1 Set
• Yellow Warning Lamp：1 Set
• Working Video：Yes
• User Manual：Yes
• Transport Package：Bulk Ship, RO-RO
• Specification：9345x2500x3200 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

CHASSISCabinHW76 standard cabin,Right or left hand drive,with air conditioner,allowed for 2~3 personsNo load(kg)Curb Weight13070Front axle7000*2Rear axle18000*2Full loadMax. Overall Weight31000Overall Dimensions(mm)Length11430Width2500Height3270Wheel base(mm)1800+4600+1350Track(mm)2022/1830F/R Suspension(mm)1500/2200A/D Angle(°)16/18Driving Model8X4Tyre12R22.5Max. Speed(km/h)105Max. Grade-ability(%)30Min. Turning Diameter(m)22.6Min. Ground clearance(mm)310EngineModelWD615.47Horsepower(HP)371Displacement(mL)9726TransmissionHW19710,10 forwards&2 reversesWRECKER EQUIPMENTMax. Towing Weight(kg)43000Lifting SystemMax. Lifting Weight(kg)25000Max. Lifting Weight under all extension(kg)8300Effective Length of Corbeling Arm(mm)3650Extend-retract of Corbeling Arm(mm)1750Slope Angle of Corbeling Arm(°)7Folding angle under no load(°)-7~92Folding angle under load(°)-7~16Max. Ground Distance(mm)≮900Landing Strength(KN)80*2Hydraulic HoseTianhe,Guangdong ProvinceHydraulic JointGermany technology and exported Sealing ringsHydraulic LockJiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.Swivel JointYangzhou Zhongmei Pressure Parts Co.,Ltd.Compartment plateOne-step Modeling by Germany 3P2A 1000T punching machine

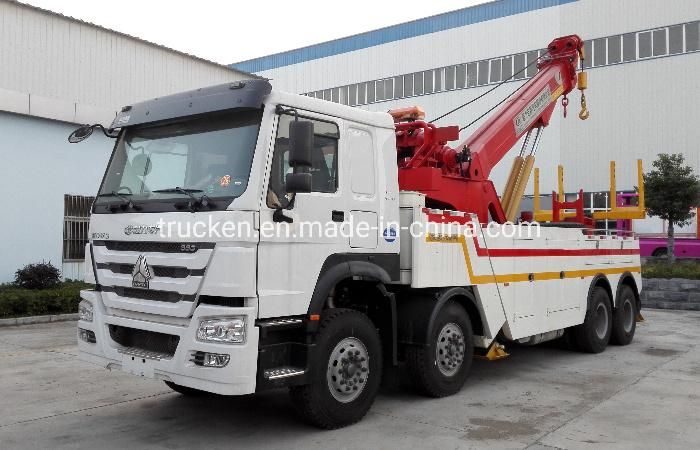

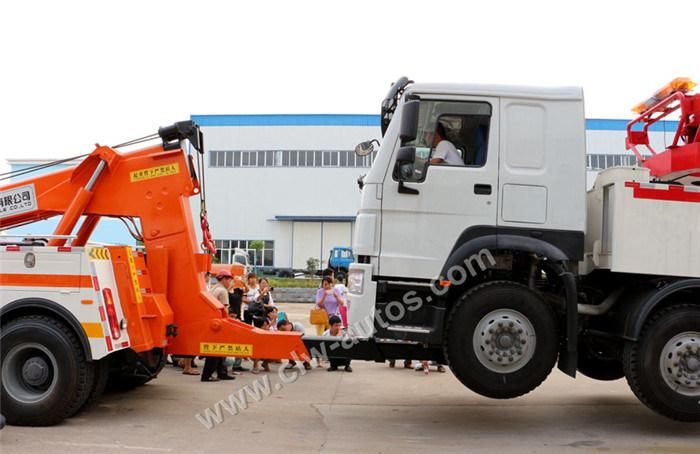

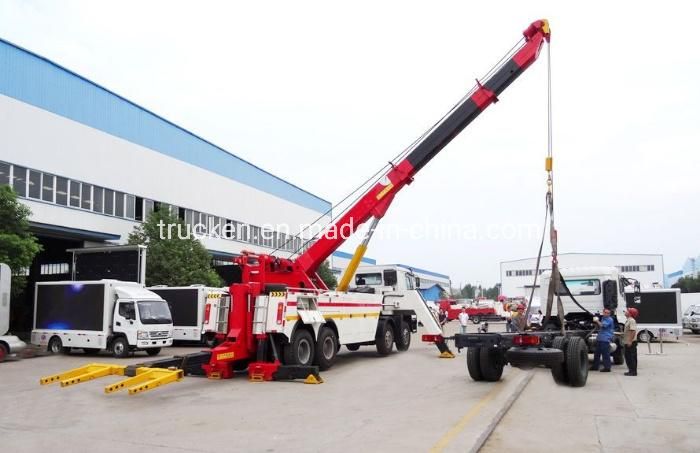

Truck Photos

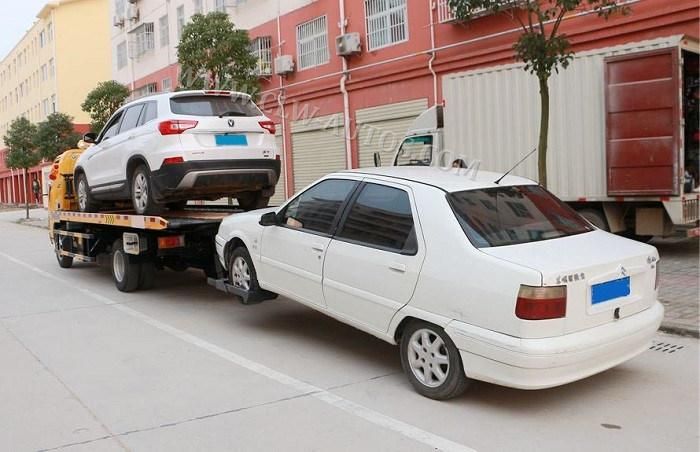

Flatbed Wrecker Tow Truck







Factory Overview




Overseas Exhibition and Local Support



Customer  Visiting






Contact Eric for more details (+86 186 0715 8551)
