• Model NO.：CLW5368YB
• Maximum Horsepower：280HP
• Condition：New
• Loading Capacity：10 Cbm
• Material：Manganese Steel
• Tank Thickness：5mm,6mm
• Wheel Base：4350+1350 mm
• Horsepower：280 HP
• Gearbox：8 Forward, 2 Reverse
• Water Supply：400L
• Hydraulic Pump：Italy or USA Brand
• Motor：Italy or USA Brand
• Reducer：Italy or USA Brand
• Radiator：Chinese Famous Brand
• Logo：as Per Customer′s Request
• User Manual：Yes
• Warranty：One Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：10 CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

CabinDriving type 6x4, LHDVehicle Main DimensionsOverall dimensions (L x W x H)mm8100×2500×3030Wheel base (mm)4350+1350Wheel track (front/rear) (mm)1500/3150Approach/Departure angle(°)32/14Weight in KGSTare Weight14100payload10770Front axles loading capacity4500 Rear axles loading capacity115000Max. driving speed(km/h)90EngineBrandYuchaiType4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)280Emission standardEuro IIGearbox8 forwards & 2 reverseSteeringLeft hand driveTire11.00R20 tubeless tires with one spare   Mixer DrumMixer Capacity10 cubic metersDrum thickness6mmBlade thickness4mmTanker Material:Q345 Carbon SteelFilling Rate(%)59Input Speed (m3/min)≥2.8Output Speed (m3/min)≥1.2Surplus Ratio≤0.5 Tanker Rotate Speed(rpm)0~17 Hydraulic PumpItaly Brand: PMPDrum Drive SystemHydraulic MotorItaly Brand: PMP Speed ReducerGermany Brand: ZF RadiatorKAITONG Water Tank Volume(L)400

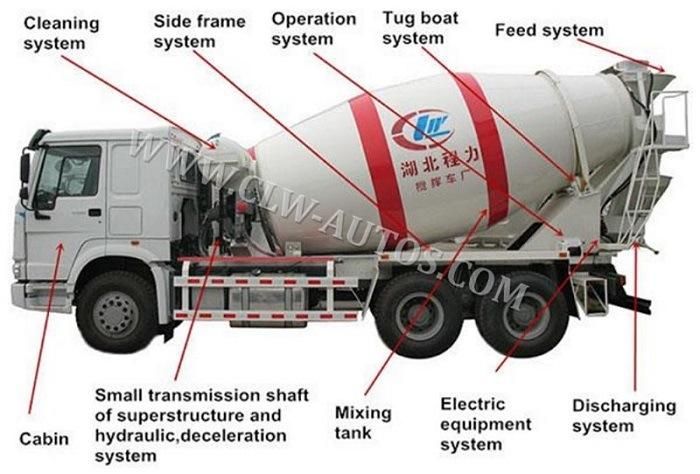

Truck Diagram

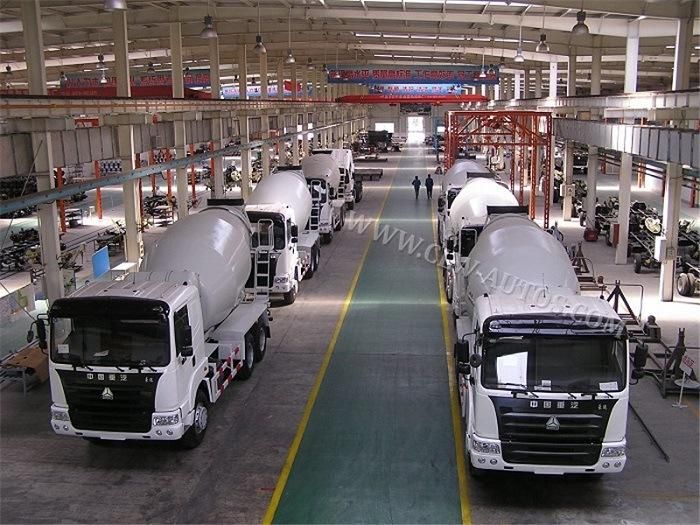

Workshop

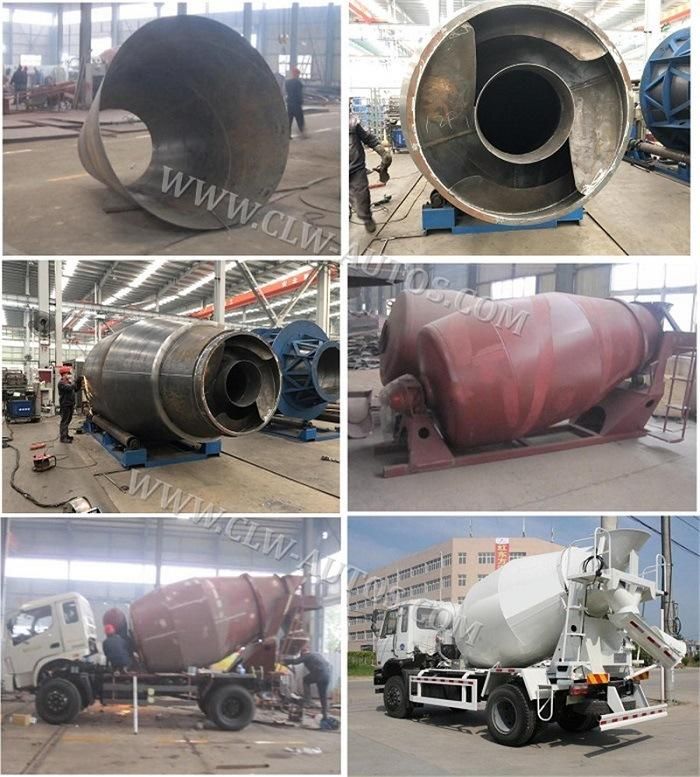

Production Procedure




Factory Overview


Overseas Exhibition and Local Support




Customer  Visiting







Contact info:
