• Model NO.：Aerial Work Platform
• Certification：ISO9000, CCC
• Emission Standard：Euro 2- 3-5 - 6
• Hoesrpower：120HP
• Payload：7t
• Fuel：Diesel
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Tire：7.00r-16
• Cabin：HOWO
• Fuel Tank(L)：200L
• Drive：LHD
• Work Lift Height：12-18m
• Boom Crane Loading Capacity：1000kg
• Wheelbase (mm)：3360mm
• Transport Package：Nil
• Specification：18m, 16m, 14m 12m
• Trademark：DRZE
• Origin：China
• HS Code：8705909990
• Production Capacity：10000
• Package size per unit product：880.00cm * 250.00cm * 340.00cm
• Gross weight per unit product：6000.000kg

Overview AERIAL PLATFORM TRUCK#DescriptionsSpecifications and typesGeneralTruck Brand  DRZChassis BrandSinotruk howoApprox. Dimension7600*1995*3220 mmGVW./Kerb Wt.5815 /5490kgCabCab Capacity2+3 persons' seatAir ConditionerAir Conditioner is optionalChassisDrive Type4X2,LHD or RHDFuel TypeDieselEngine Make & ModelChaochai enginePower120hpDisplacement3856 mlEmission StandardEURO II or EURO III or Euro IVWheelbase/No.of axle3300 mm / 2Tyre Specfication7.00-16Tyre Number6 tyres and 1 spare tyreMax Speed90 km/hPaintAutomative metallic paintSuperstructureMax working height10m 12m 14m 16mWorking cage200kg capacityBeamHydraulic controlSlewing360 continuous rotationEquipments

Four hydraulic outriggers are equipped, stable and reliable

Dual control system both in the working cage and on the deck.

Safety device: relief valve, balance valve, double way hydraulic lock ,

motor emergency system

Insulated aerial platform ,hoist hook with cables optional

The above information is for reference only. We can produce according to your needs so, If you have

any questions you can contact me at any time.Sinotruk HOWO  Aerial Work Platform truck 18 meters Cherry Picker

fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,



 Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:

Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



Specifications



Sinotruk HOWO 4x2 Aerial Working Truck

Cabin2080 Standard cab, with two seatsWheelbase3360 mmOverall dimensions(LxWxH)6422*1990*2995mmTare Weight5450kgEngineYUNNEI , Euro II emission,116 HPClutchReinforced diaphragm clutch, diameter 430mmGear boxWLY6T46, 6 forwards & 1reverseBreaks

Service brake: dual circuit compressed air brake

Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Steering Gearpower steering, hydraulic steering with power assistanceTire8.25R16 All steel radial tire, 1pc including 1 spare tireWorking Platform360°turning(left or right), H-shape legs 360°Dimensioin1100X570X1000mmExtendable boom sectioin2002/3/4Max Lifting Weight990KG 1000KG,1500KG,2000KGMax. Working Radius8m,10m,12m,13m,14m,15m,16m,17m,18mBoom TypeStraight/FoldableLifting Max. Height8m,10m,12m,14m,16m,18m,20m
 Ask for better price   CHASSIS MAIN DESCRIPTIONChassis BrandSinotruk HOWOCabRight hand drive, 1880 single line , 3 seatsOverall Dimensions6605*2200*2940 mmTare Weight5370 kgFront Overhang1065/2180 mmWheelbase3360 mmApproach/Departure angle(°)27/13EngineBrandChaochaiModelCY4102-E3CHorse Power(HP)120hpEmission standardEuro IIIGear BoxWLY6T100, 6 forward & 1 reverseAxles number2 axles, front axle 2t, rear axle 3.5tTires7.00R16, 6 pieces + 1 spareLeaf spring11/9+7HPower steeringYesBrakeAir brakeElectric heatYesElectric voltage24vParameters for high altitude operation platformMax working height12mMax working radius5.8mMax working radium while in the max working height

≥5.6m



Max working height while in the max working radius≥5.6mMax loading weight of the basket in the top200kgLanding gear

Type: H shape

Quantity : 4 pieces

Max outrigger transversal span :3300 mm

Max Longitudinal span: 2700 mm

Lifting hook

Lifting weight:≤1000kg, safe weight: 800kg

Max lifting height: 6.4m

Operation system

Rotary platform and lifting basket can operate;

Operate type: manual or hydraulic

Lifting arm3 joints folding armslewer device360 degree continuous turningWalking floordiamond plate



Certifications

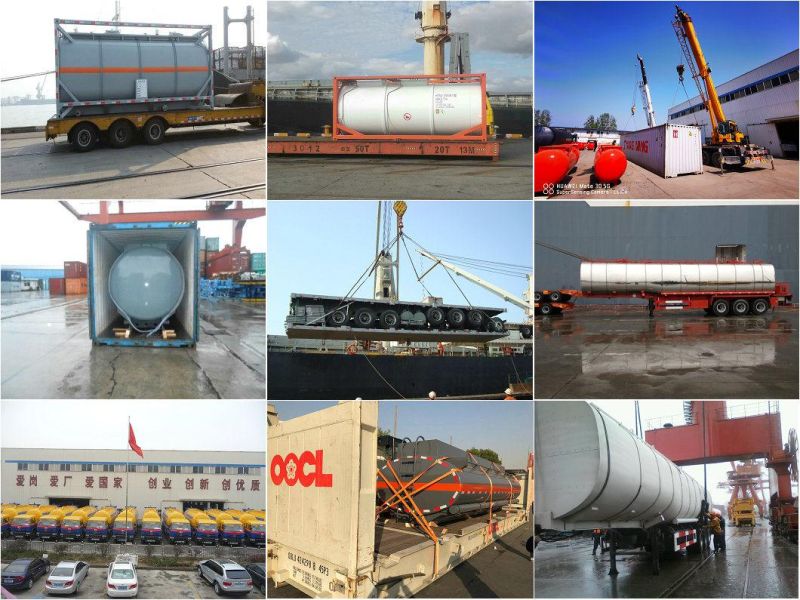

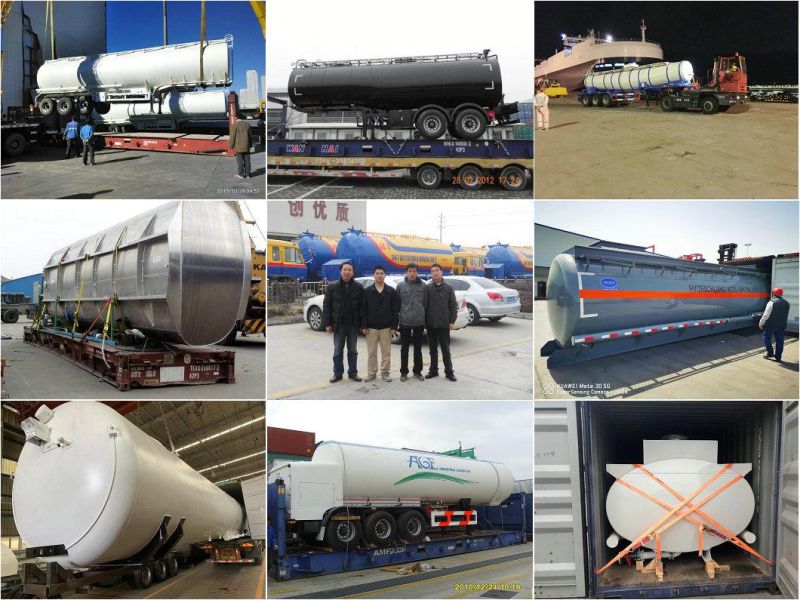

Packaging & Shipping
