• Model NO.：CSC20190424
• Transmission Type：Manual
• Payload：20T
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type
• Condition：New
• Product Name：Mobile Garbage Station for Hooklift Garbage Truck
• Station Type：Mobile Garbage Compression, Garbage Compactor
• Capacity of Station：4m3, 6m3, 8m3, 10m3, 12m3, 14m3, 16m3, 18m3 etc
• Truck Brand：Dongfeng, Sinotruk HOWO, JAC, Foton etc
• Drive Type：Right Hand Drive, or Left Hand Drive
• Drive Model：4X2, 6 Wheels, 6X4, 10 Wheels.
• Truck Type：Hook Lift, Hook Lifting Garbage Truck
• Engine Horse Power：116HP, 120HP, 140HP, 170HP, 190HP etc.
• Transport Package：Naked or Waxed Before Shipment
• Specification：8CBM to 18CBM, 20CBM
• Trademark：Chusheng
• Origin：Suizhou Hubei
• HS Code：8701200000
• Production Capacity：10000 Units Per Year

Basic Info.

Model NO. CSC20190424 Transmission Type Manual Payload 20T Fuel Diesel Drive Wheel 4×2 Brand Dongfeng Models Medium Usage Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type Condition New Product Name Mobile Garbage Station for Hooklift Garbage Truck Station Type Mobile Garbage Compression, Garbage Compactor Capacity of Station 4m3, 6m3, 8m3, 10m3, 12m3, 14m3, 16m3, 18m3 etc Truck Brand Dongfeng, Sinotruk HOWO, JAC, Foton etc Drive Type Right Hand Drive, or Left Hand Drive Drive Model 4X2, 6 Wheels, 6X4, 10 Wheels. Truck Type Hook Lift, Hook Lifting Garbage Truck Engine Horse Power 116HP, 120HP, 140HP, 170HP, 190HP etc. Transport Package Naked or Waxed Before Shipment Specification 8CBM to 18CBM, 20CBM Trademark Chusheng Origin Suizhou Hubei HS Code 8701200000 Production Capacity 10000 Units Per Year

Product Description

Mobile Refuse garbage Compactor Station 12 M3 12CBM Garbage Compressed Station Hooklift Garbage Truck

We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, JMC, garbage trucks.

the Parameter of 16M3 mobile refuse garbage compactor station garbage compressed station:

Condition	New condition
Dimension	6200×2495×2500 mm
Tank capacity	16 cbm
Total weight	5300 kg
Turn-over volume	3 m3
Height of equipment feeding port	1500 mm
Bottom beam width	1060 mm
Guide wheel track	2200 mm
Central height of the hoist	1570 mm
Hydraulic system rated pressure	21 Mpa (Italy gear pump)
Compression force	280 KN(Luzhou oil tank)
Compaction density	0.8 t/m3
Running noise	≤65 dB
Motor power(Kw)	5.5 Kw (Customized special motor)
Power supply	380V, Three phrase,15A, Waterproof design
Push-head Cycle time	≤42 s
Compactor garbage box each cycle's capacity	1.2 m3
waste quantity	>92 m3/h
Model of rear door discharging	Quick change hydraulic joint
Equipment	Taiwan PLC control system, Xinjie brand monitor, Italian hydraulic valve.

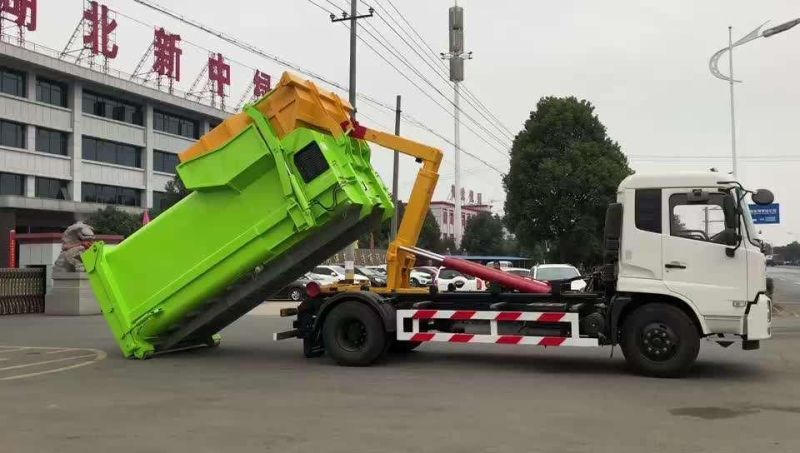

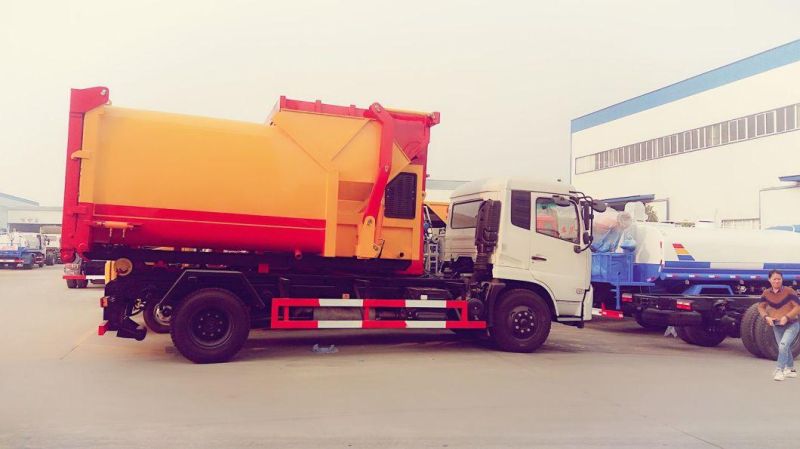

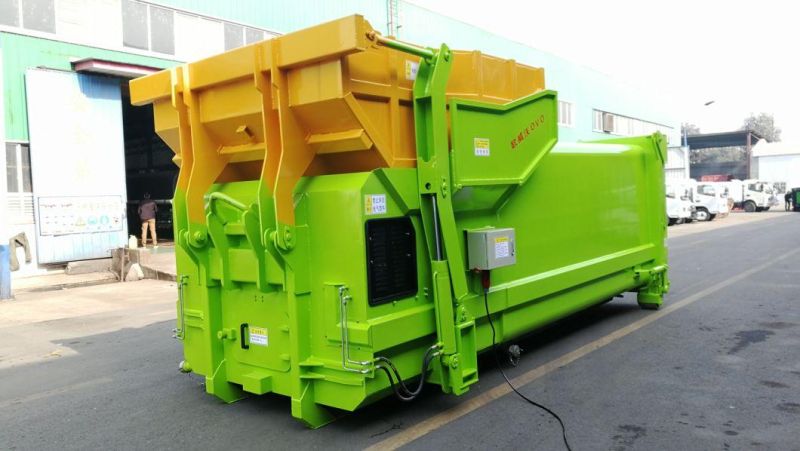

The pictures of Mobile Refuse garbage Compactor Station 12 M3 12CBM Garbage Compressed Station Hooklift Garbage Truck:






Company information:

Our company information:

1. Hubei Chusheng Vehicle Co.,Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.


Our Entrance of factory:

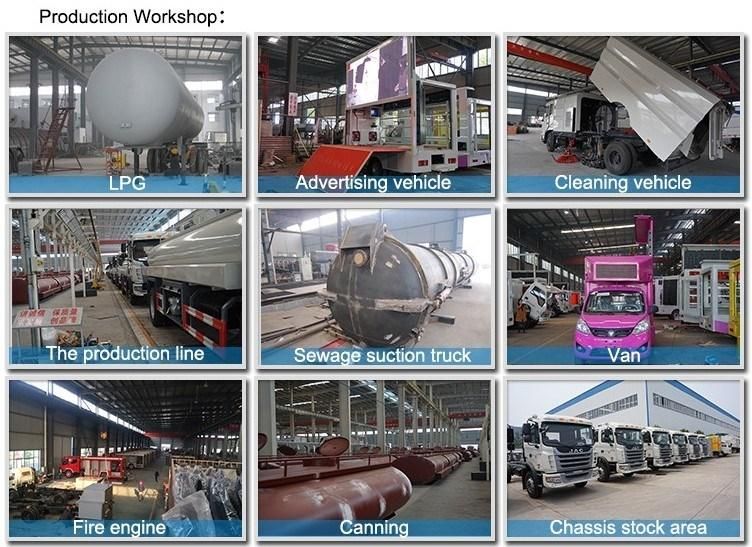

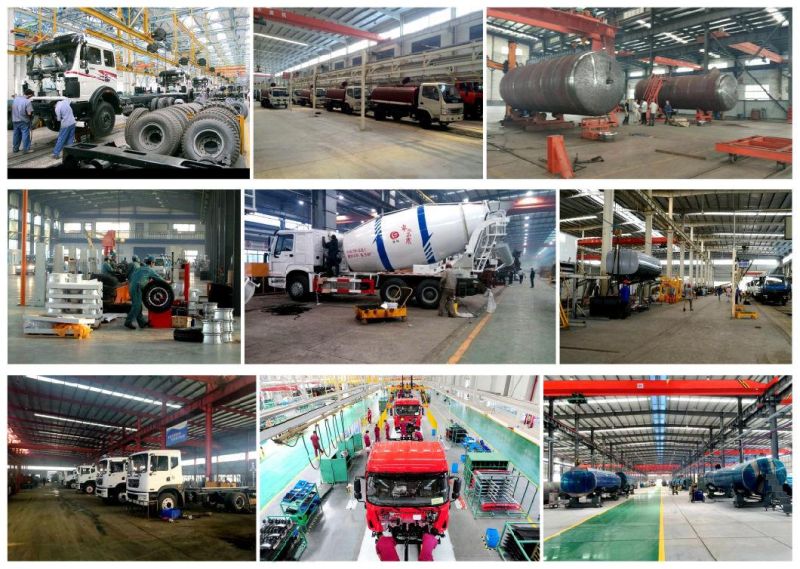

Workshop and Equipment:



Our Quality Certificate:




Welcome to send inquiry to us, and welcome to visit our factory for cooperation.
