• Model NO.：CLW
• Payload：15t
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：＜150hp
• Condition：New
• Truck：Fire Truck
• Allowable Passengers in Cab：2+3
• Capacity of The Upper Tank：2cbm, 2000litres
• Air Conditioner：A,C or Without A,C
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Steering Wheel：LHD or Rhd
• Fire Truck Type of Upper Body：Water, Water Foam Tank, Dry Powder
• Max. Working Height：60 M
• Transport Package：Naked, Waxing and So on
• Specification：CCC, ISO9001
• Trademark：CLW
• Origin：Hubei, China
• Production Capacity：800sets,Month

Dongfeng Fire Truck Drive Model4X2ChassisEQ1042CapacityWater tank:1500L
Foam tank:500LVehicle Main DimensionsDimensions(L x W x H)(mm)6310X1980X2400Water tank dimensions1000x1700x1000Foam tank dimensions500x1700x700Wheel base (mm)3300Overhang (front/rear) (mm)1032/1853Wheel track (front/rear) (mm)1508/1458Approach/Departure angle(°)23/15Weight in KGSGVW.4495Curb Weight2705Max. driving speed(km/h)90EngineModelCY4102Type4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)95 HPengine capacity(ml)3707Emission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)120Tire7.00R15tire , 6 + 1(spare)Brakesdual circuit compressed air brakeCabfour doors, double row EquipmentWater tanker: 1500L  Foam Tanker:500L
Low pressure pump :CB10/20
Flow: low pressure 20L/S
Pressure: low pressure 1.0MPa
PL30 Fire Pump  Flow: 20L/S
Pressure: 1.0MPa
Fire distance (water):≥50m

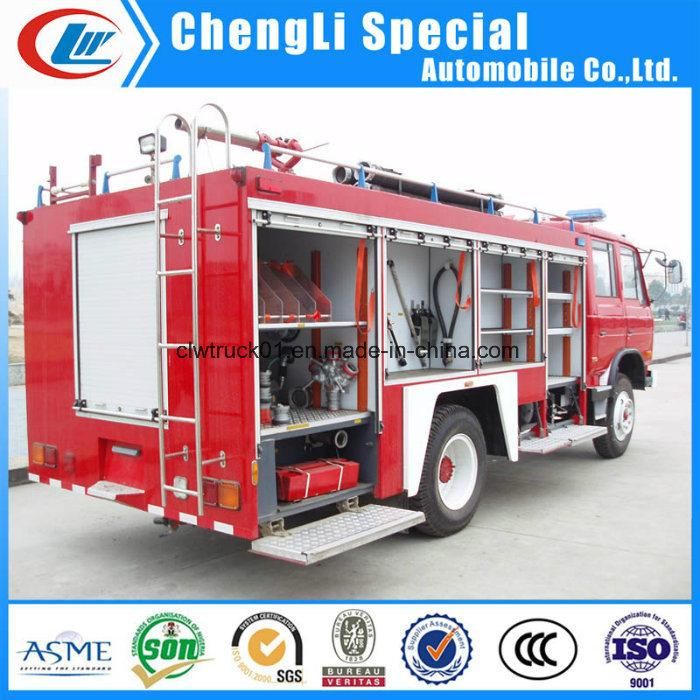

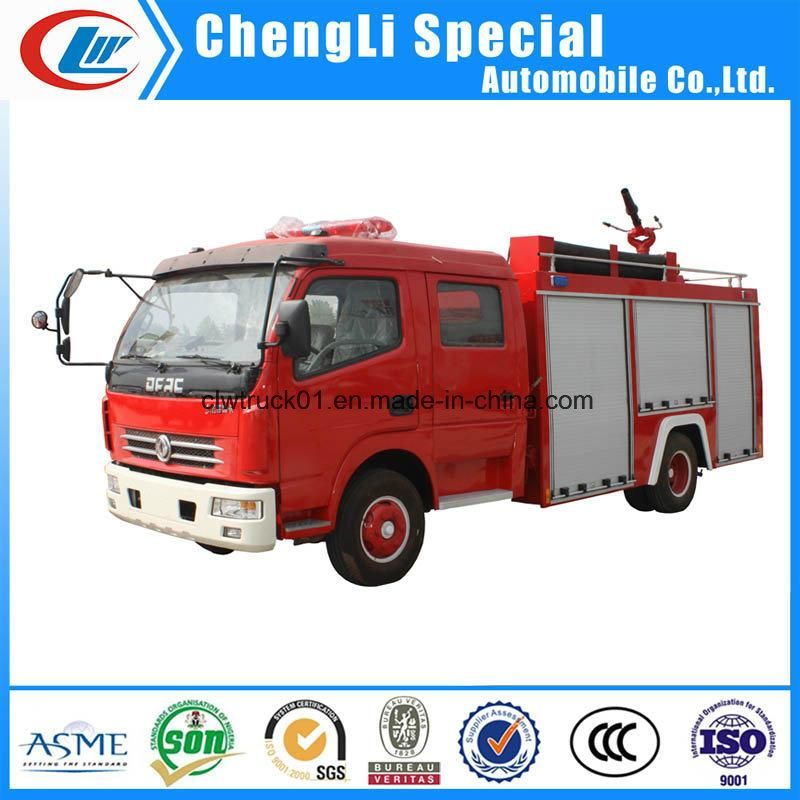

Product photo for reference:







Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Packing and Shipping



Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.

Other Products


1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )




Customised Truck & Trailer Solutions to Meet Your Requirements
