• Model NO.：CLW
• Payload：15t
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Truck：Fire Truck
• Allowable Passengers in Cab：2+3
• Water Diversion Time：Less Than 35s
• Air Conditioner：A,C or Without A,C
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Steering Wheel：LHD or Rhd
• Fire Truck Type of Upper Body：Water, Water Foam Tank, Dry Powder
• Fire Monitor Range：More Than 45m
• Transport Package：Naked, Waxing and So on
• Specification：CCC, ISO9001
• Trademark：CLW
• Origin：Hubei, China
• Production Capacity：800sets,Month

DescriptionI'SUZU Fire Fighting TruckDrive Model4X2ChassisQL1050CapacityWater:2000LVehicle Main DimensionsDimensions(L x W x H)(mm)6205X1900X2700Wheel base (mm)3360Overhang (front/rear) (mm)1015/1830Wheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Weight in KGSGVW.4085Curb Weight2050Max. driving speed(km/h)90EngineModelI'SUZU Engine:4KH1-TCType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging
and inter-coolingHorse Power(HP)130 HPengine capacity(ml)2999Emission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)150Tire7.00R15tire , 6 + 1(spare)Brakesdual circuit compressed air brakeCabfour doors, double row  Water tank materialhigh quality steel plate, antiseptic treatmentPTOType: Sandwich type (full power PTO).
Handle: Manual control
Cooling type: Forced water cooling, Splash lubricationPiping SystermSuction pipeline, outlet pipeline, residual water pipeline and cooling water pipelineFire Pump1 . Tank  capacity: 2000L
2 . Fire pump model:CB10/20
3 . The flow rate of fire pump: 20L/S
4 . Pressure of fire pump : 1.0mpa
5 . Fire cannon mode PS20
6 . Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0MpaOther Equipment1,one ingate, with fast lock and open device
2,one overflow safety device and air breather
3,one fluid level gauge
4,one drain outlet, with ball valve, stainless steel valve element
5,two water filling nozzle outside of the tanker
6,one inlet piping connect to water tank and pump

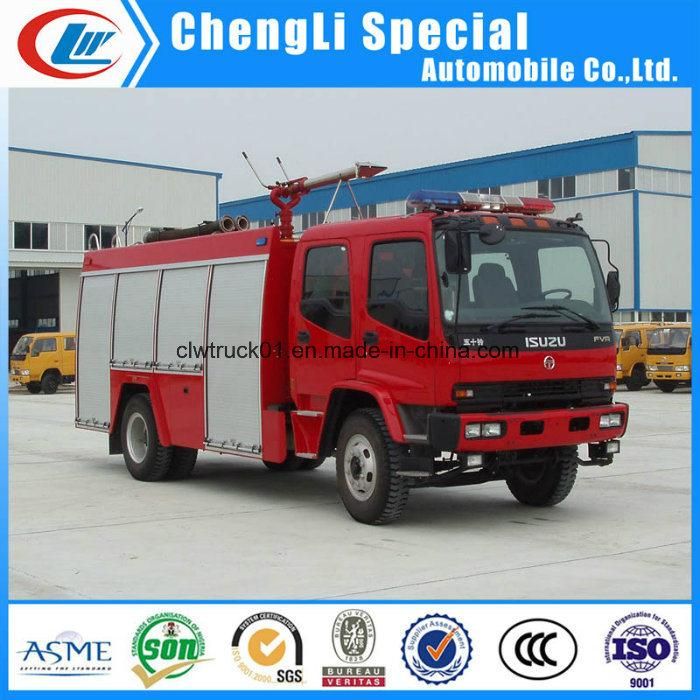

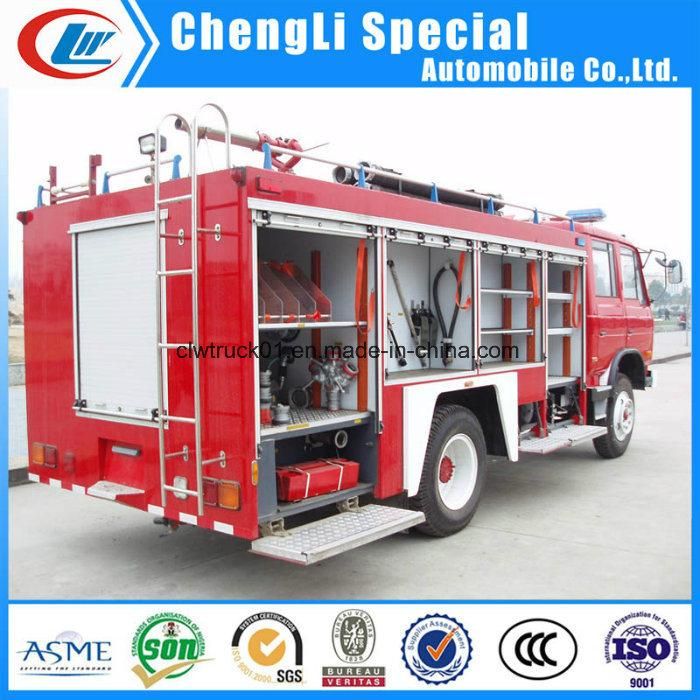

Product photo for reference:







Quick details of the Fire Fighting Truck:

1, I'SUZU 4X2 fire truck
2, Gross Weight: 18750kg
3, Overall Dimension: 6205X1900X2700 mm
3, Cabin: 2 rows, 4 doors
4, Front/rear suspension: 1015/1830
5. Drive Mode: 4X2 LHD/RHD, Diesel Engine
6. Water and Foam: 6: 2, Gunshot>55 meters distance

Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Packing and Shipping



Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.

Other Products


1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Customised Truck & Trailer Solutions to Meet Your Requirements
