Specialized Vehicle

12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck

CLW Heavy Industry Co., Ltd.
  • Type:Compactor
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Volume:6001-10000L
  • Emission Standard:Euro 3
  • Transmission Type:Manual
  • Payload:9ton, 10ton, 12ton, 13ton, 15ton

Base Info

  • Model NO.:CLW
  • Fuel:Diesel
  • Drive Wheel:4×2
  • Brand:Dongfeng
  • Models:Medium
  • Usage:Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
  • Condition:New
  • Truck:Garbage Truck
  • Drive Type:4X2,4X4,6X4,8X4
  • Steering Wheel:LHD or Rhd
  • Recovery Tank:200L
  • Tanker Body Material:Steel-Q345A or Stainless Steel
  • Shape:Arc and Rectangular Box
  • Operation Type:Hydraulic Operation
  • Garbage Compact Ratio:1,3 - 1,4
  • Box Thickness:4,5,6 mm
  • Compression Density:0.6-09 Ton,M3
  • Transport Package:Waxed Before on Board
  • Specification:CCC and ISO9001
  • Trademark:CLW
  • Origin:Suizhou, Hubei
  • Production Capacity:1500units,Month

Description


General
Truck Name
Garbage Compactor  truck
Drive Type
4 * 2 , left   hand drive   or right hand drive
Loading  Capacity
10 m ³
Gross Vehicle Weight(kg)
16000
Curb  Weight (kg)
9805
Overall Dimensions L*W*H(mm)
8470 ×24 90 × 325 0
Engine
Engine Model
ISDe210 40
Engine Brand
Cummins
Fuel Type
Diesel
Power
155 kw/ 21 0HP
Emission Standard
Euro  II
Displacement(ml)
6700
Engine Type
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis
Chassis  Brand
Dongfeng
Front/Rear Axle Load( KG )
6000 / 10000
Tire No.
6
Tire Specification
9.00-20 Nylon tire or 9.00R20 steel tire
Wheelbase (mm)
4500
Axle No.
2
Gear Box
6  speed  forward with 1 reverse,  manual
Brake
Air  break
Radiator
Suitable for tropical climate
Front/rear suspension(mm)
1 430 /2 540
Leaf Spring No.
8 / 10+8

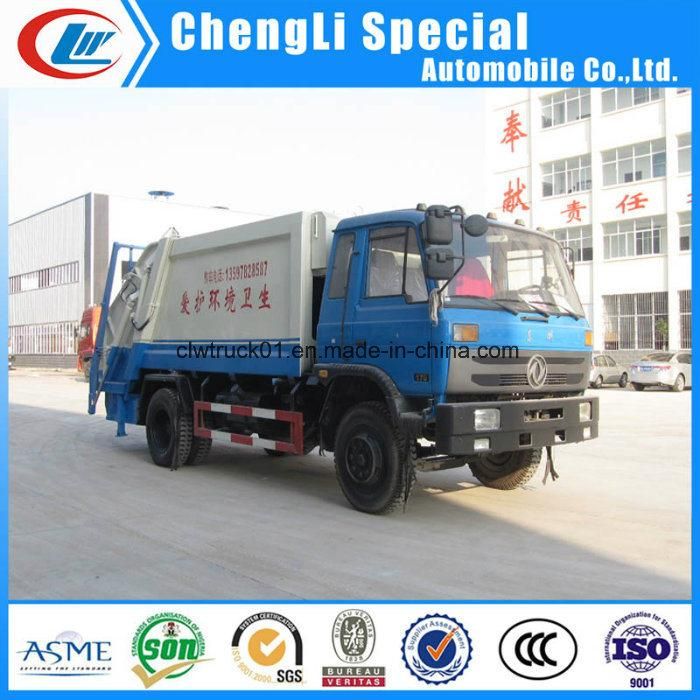

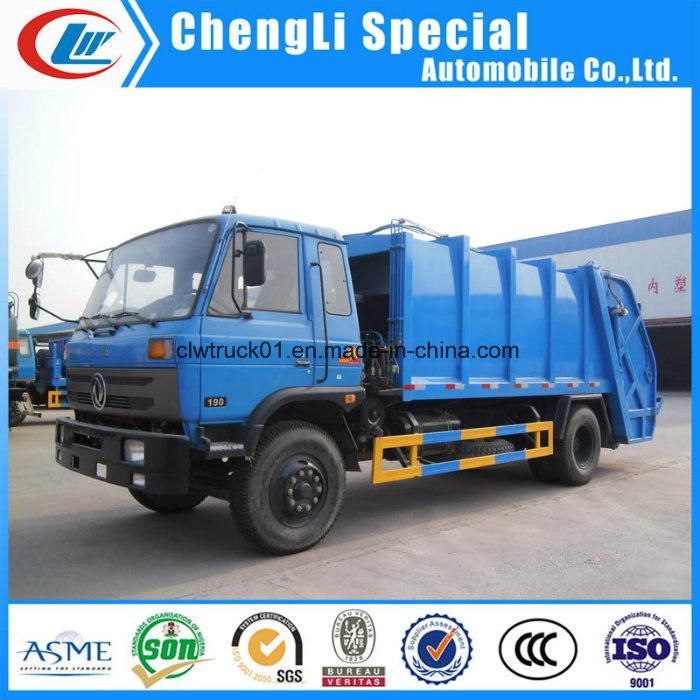

Product photo for reference:
12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck

12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck


Company Information

ChengLi Special Automobile Co., LTD
 is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck


Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

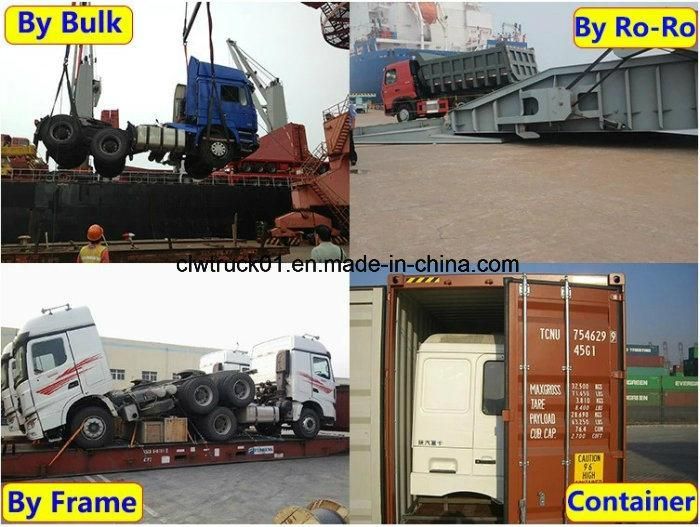

Packing and Shipping
12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck



Certificates

12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck

Other Products

Our main products:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )


12cbm Dongfeng 10tons Hydraulic Lifting Garbage Truck


Customised Truck & Trailer Solutions to Meet Your Requirements
