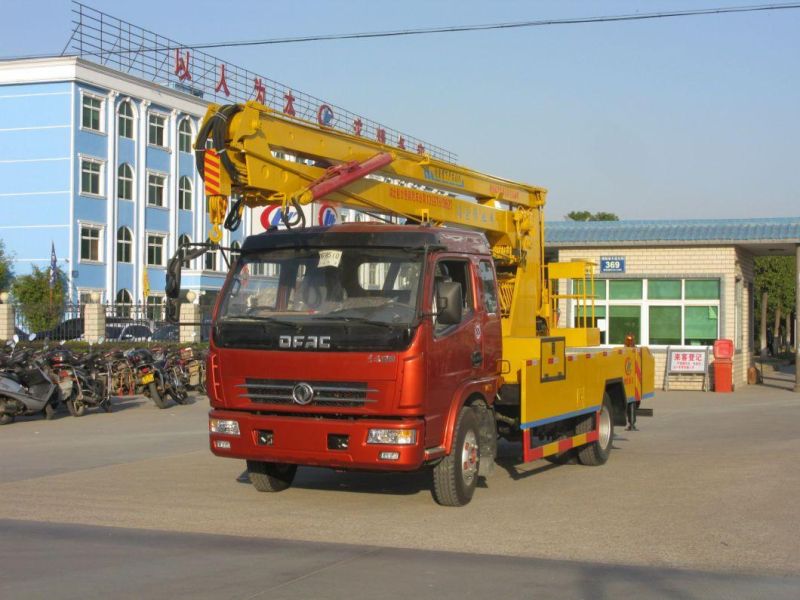

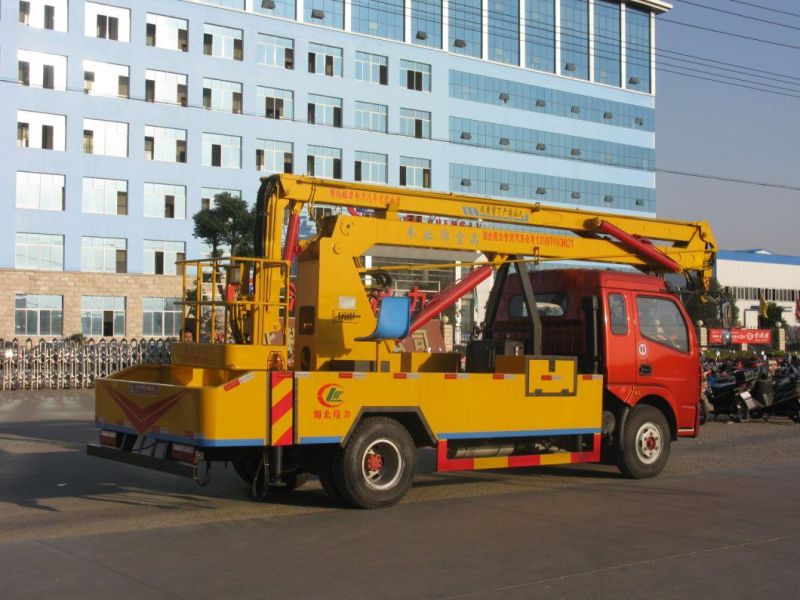

24m High Altitude Operation Aerial Platform Truck in 24metes Bucket Manlift Truck with Bucket Insulation Overhead Working

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Type：Z
  • Certification：ISO9000, CCC, EPA, EEC
  • Emission Standard：Euro 2
  • Hoesrpower：90HP - 190HP
  • Payload：5-15ton
  • Fuel：Diesel

Base Info

  • Model NO.：CLW5040JGKZ4
  • Transmission Type：Manual
  • Drive Wheel：4x2
  • Condition：New
  • Produce Name：High Altitude Operation Truck
  • Bucket Loading Weight：200kg
  • Turning Angle：360 Degree
  • Warranty Time：1 Year
  • Delivery Time：30 Days
  • Max Working Height：18meters
  • Working Radius in Max Height：3meters
  • Front Legs：H Shape
  • Color and Logo：Customized
  • Hook Weight：800kg
  • Lifting Height：14m, 16m, 18m, 20m, 22m
  • Bucket Size：1000X650X1200mm
  • Arm Type：Folded or Telescopic
  • Max Working Radius：8.0meters
  • Working Height in Max Working Radius：10.1meters
  • Transport Package：Naked Package
  • Specification：20meters
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8701909000
  • Production Capacity：500unit,Month

Description

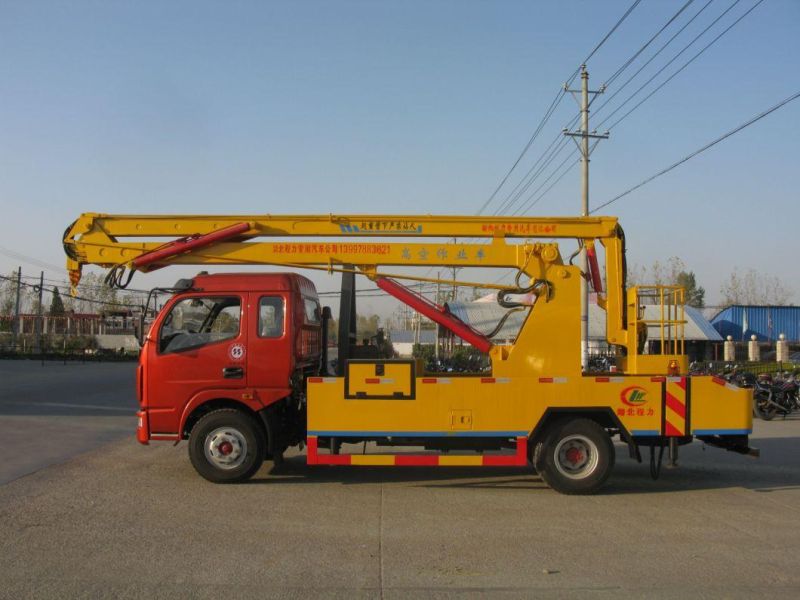

18Meter Aerail Platform TruckOverall dimensions8450×2050×3050 mmMaximum Height18 metersMaximum operation radius7.9 metersGross vehicle weight6705 kgMass in working order6380 kgWheel base4200 mmF/R track base1015/2280mmApproach/departure angle24/10°CabinDongfeng, Right/Left Hand Driving, with A/C.EngineCummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter coolingDisplacement/ HP3900 Liter / 140HPMax speed90 km/hTire specification900R20Traction system4x2Number of axles2Equipment1. Max operation height:18m
(including 1.7meter person height, net height is 16.3meter),
2. Max operation radius≤7.9m,
3. Max working platform height≤16.3m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
