• Model NO.：CLW547831
• Use：Stainelss Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Purpose：Road Sweeping,Street Cleaning
• Sweeping Width：2.5meter to 3.0meter
• Dust Container：3.5cbm

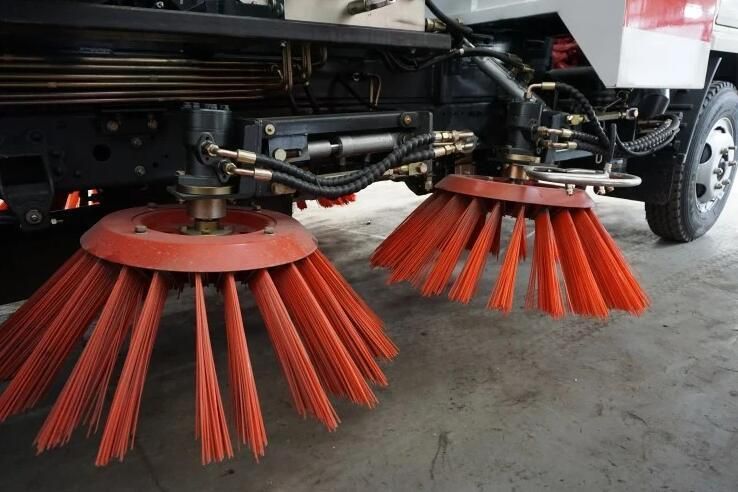

• Brush：4 Brushes, 1 at Each Side
• Auxiliary Engine：Jmc 77HP Engine
• Garbage Container Sweeping System：Automic Water Cleaning
• Max. Suction Particle：Diameter 120mm
• Sweeping Speed：2.5meter to 3.0meter
• Water Container：1.5cbm
• Function：Road Sweeping,Road Cleaning
• High Pressure Cleaning：Optional
• Suction Pan：1 Unit with 2 Hose
• Garbage Discharging：Tipping System,Dumping System
• Brush Function：Automatic Retreating for Collision
• Working Light：Optional
• Transport Package：Naked Packing
• Specification：5CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909990
• Production Capacity：500 Unit,Month

Dongfeng Truck ChassisConditionNew condition/Right hand drive/4x2ChassisBrandFOTONCurb weight(kg)100kgWheelbase(mm)3300 mmDimensions(mm)6300 x 2000 x 2600 mmOverhang (front/rear) (mm)1032 / 1868Wheel track (front/rear) (mm)1506 / 1404Approach/Departure angle(°)19/12Axle Load(kg)2000/4000Max. driving speed(km/h)90 km/hTireSpecifications6pcs with one spare tireNumber7.00-16ClutchReinforced diaphragm clutchGear boxManual type, 6 Forwards & 1 ReverseCabinLeft Hand Driving, 2 Passenger Allowed, with A/CEngineModelChaochai Diesel Engine, 4 CylindersDisplacement(ml)3856 ml / ccPower(kw)/Horsepower(HP)73 kw/99 HPEmission standardEuro 4BrakesService brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceSweeping SystemTankGarbage tankTank materialStainless steel 304Tank volume(cbm)1.5 CBMWater tankTank materialStainless steel 304Tank volume(cbm)3 CBMAuxiliary engineModelJMC Engine 77HPPower(kw)57 kwBrushQuantity(pc)4 pcsWorking area(m)2.7-2.8 mRemarks1, With water sprayer-bar
2, Rear vacuum cleaner
3, Blower
4, Rear LED pilot lamp
5, Self unloading box body
6, The color will be designed on basis of your requirements.
