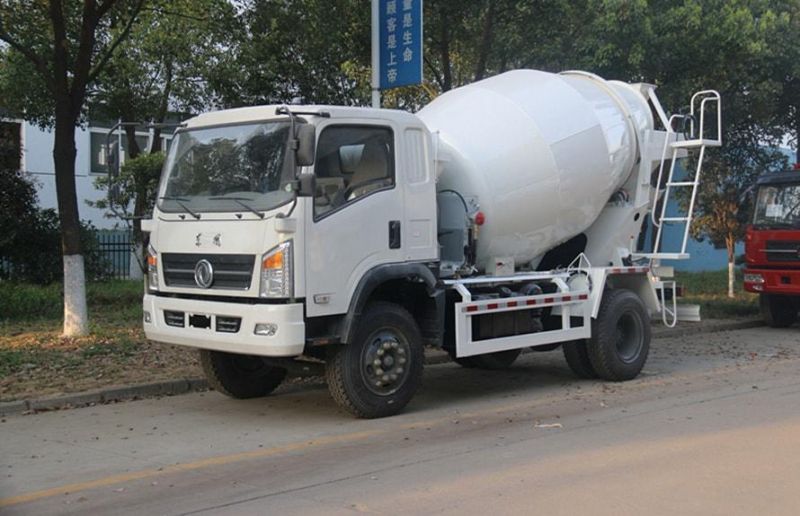

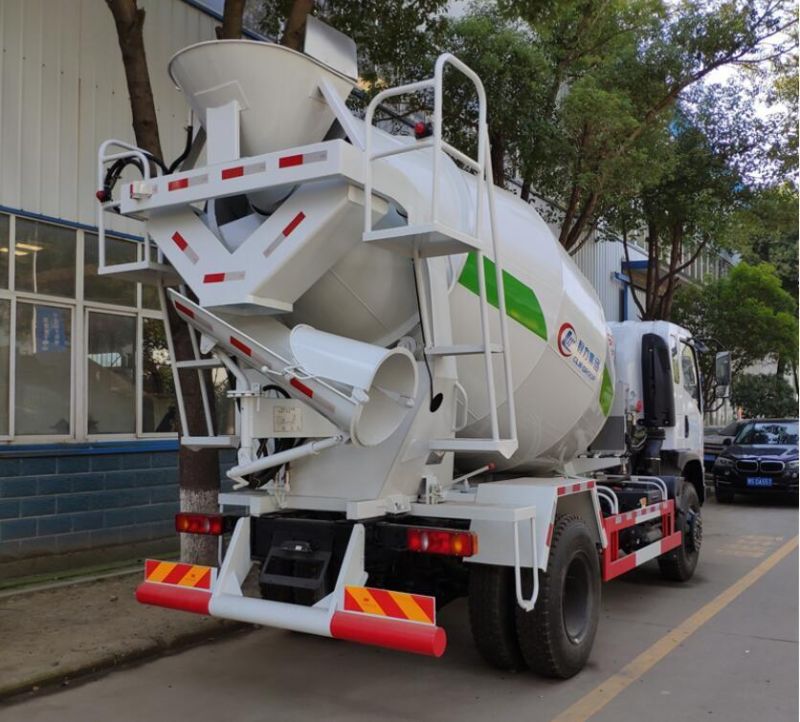

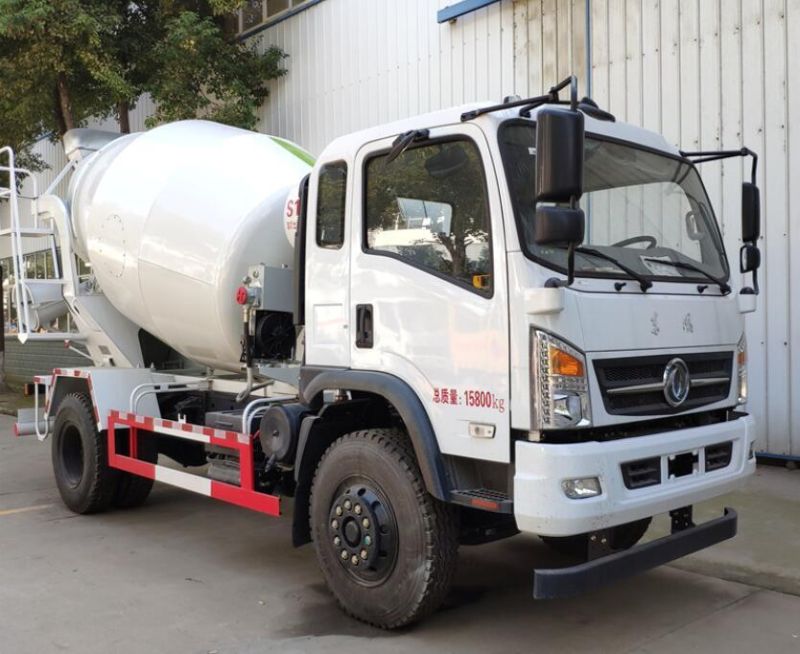

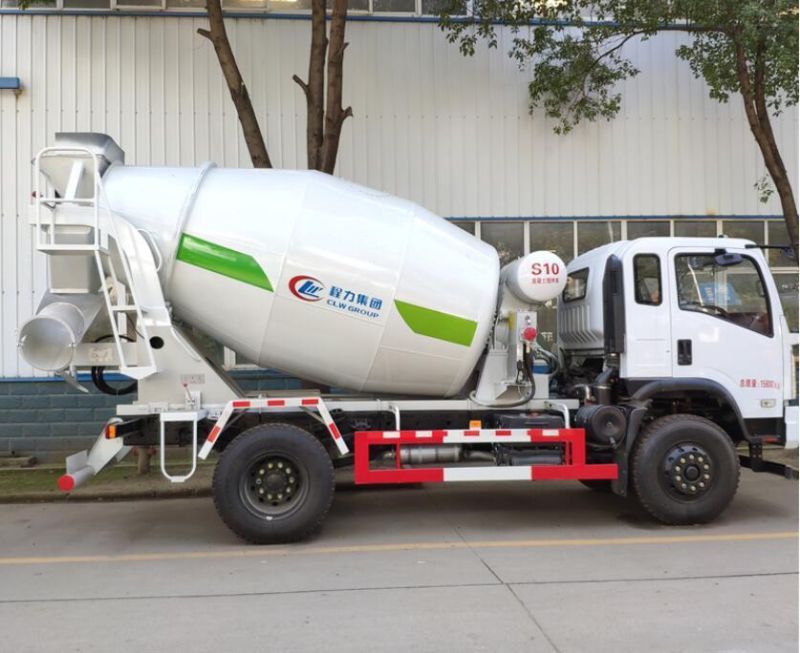

Dongfeng 4X2 6m3 Cement Concrete Mixer Truck Construction Equipment
HUBEI RUILI AUTOMOBILE CO., LTD.- Certification:ISO9000, CCC, CE
- Transmission Type:Manual
- Emission Standard:Euro 5
- Displacement:3.5
- Payload:8t
- Fuel:Diesel
Base Info
- Model NO.:CLW5091
- Drive Mode:4x2
- Maximum Horsepower:<200hp
- Condition:New
- Delivery Time:Shipped in 30 Days After Payment
- Brake:Air Brake
- Material:High Strength Steel
- Hydraulic Motor:Eaton, Sauer or Chinese Brand
- Axle Load:3600 , 10000kg
- Logo:as Per Customer′s Request
- Warranty:One Year

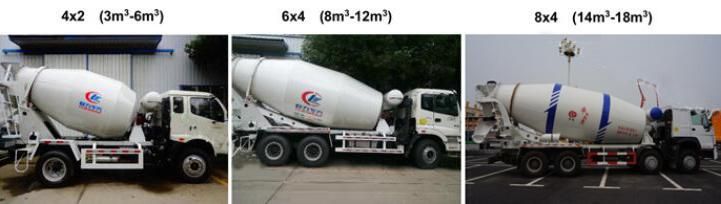

- Mixer Drum:3m3, 4m3, 5m3, 6m3
- Hydraulic Pump:Eaton, Sauer or Chinese Brand
- Reducer:Zf, Bonfiglioli or Chinese Brand

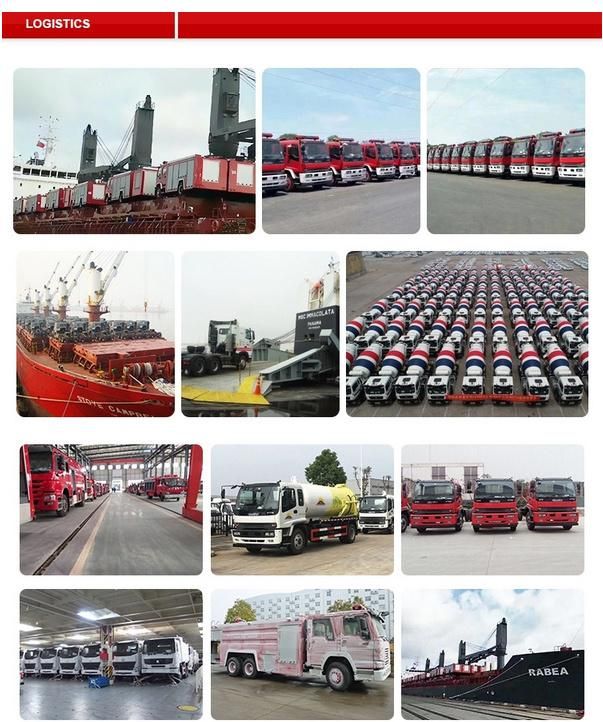

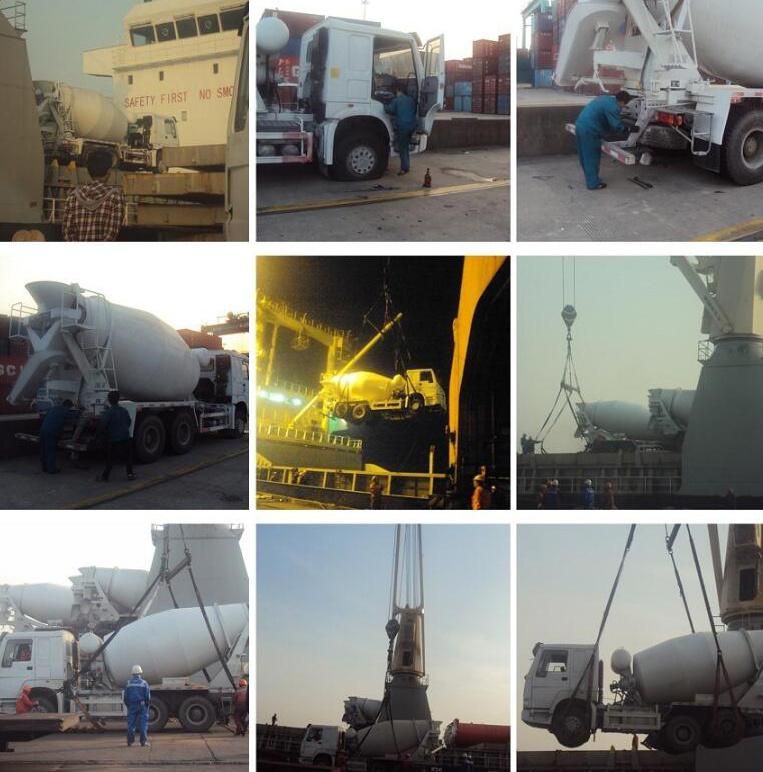

- Transport Package:RO-RO Ship, Bulk Ship, Container
- Specification:7520 X 2500 X 3660mm
- Trademark:CLW
- Origin:Suizhou, China
- HS Code:8705909090
- Production Capacity:500 Unit,Month
Description
ConditionNew condition/Left hand drive/4X2 Chassis Brand DONGFENG Gross vehicle weight 16000 kg Curb weight(kg) 7530 kg Wheelbase(mm) 3800 mm Dimensions(mm) 7520×2500×3660 mm Overhang (front/rear) (mm) 1400/2290 mm Axle Load(kg) 3600/ 10000kg Max. driving speed(km/h) 90 km/h Brake Air brake Tire Number 6pcs with one spare tire Specifications 9.00R20 Fuel tank(L) 200 L Transmission 6 Forwards and 1 Reverse with PTO Cabin It can accommodate three people, With Air conditioner Engine Brand YUCHAI Horsepower(HP) 160 HP Emission standard Euro 5 Upper Mixer drum Max. Capacity 6 CBM Material Alloy steel Q345, 4mm thickness Vane Material Alloy steel Q345, 4mm thickness Specification Feeding Speed (m3/min) ≥2.8 Discharging Speed (m3/min) ≥1.2 Discharging Residual rate(%) ≤0.5 Mixing Tank Rotating Speed (RPM) 0-17 Discharging range 180° full range Driving system Option Option 1 Option 2 Option 3 Hydraulic Pump US EATON 5423 SAUER 75 SUNNY 56 Hydraulic Motor US EATON 5433 SAUER SUNNY 63 Reducer Germany ZF4300 brand Italy Bonfiglioli China local brand Radiator China local brand Water supply system Water Tank Capacity (liters) 300 Water supply type Pneumatic water supply Control system Control Way Connecting Rod Controlling Structure Features
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
- The color is optional
