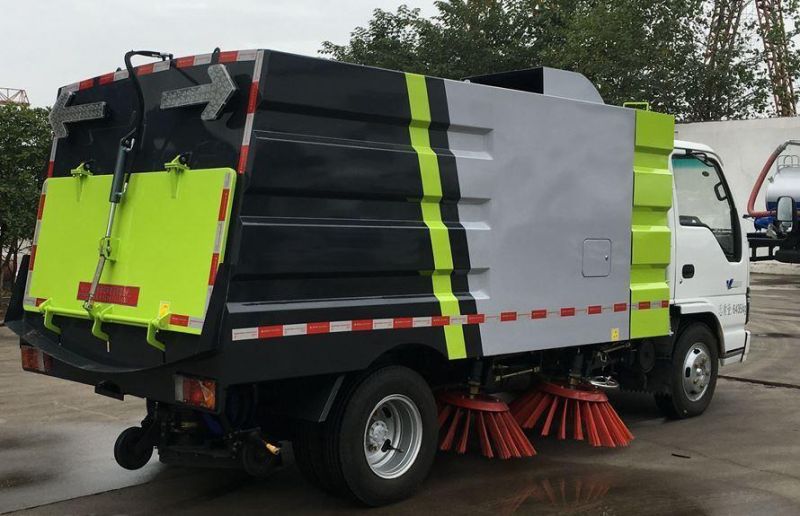

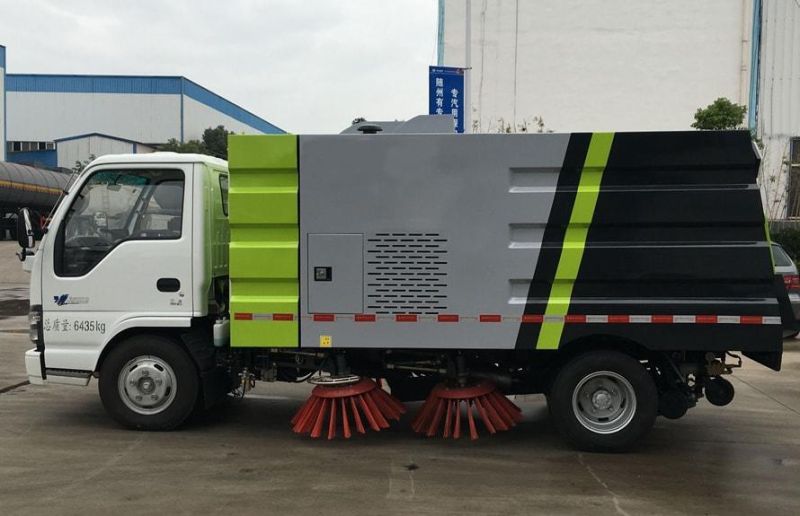

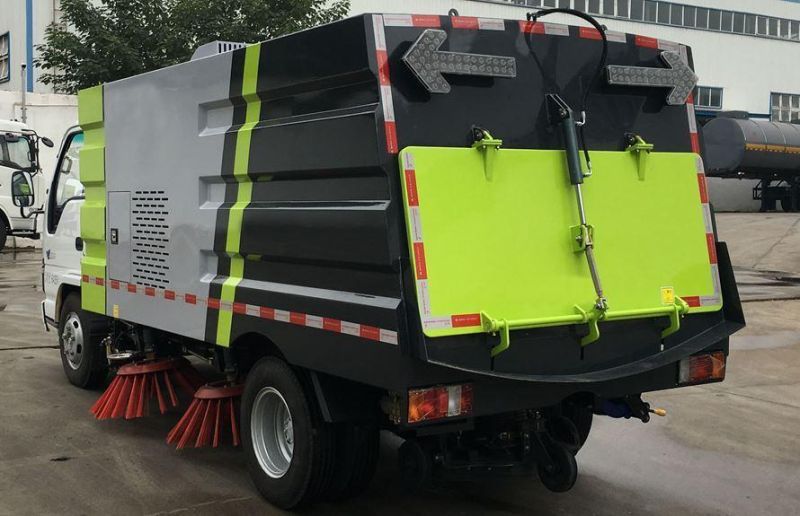

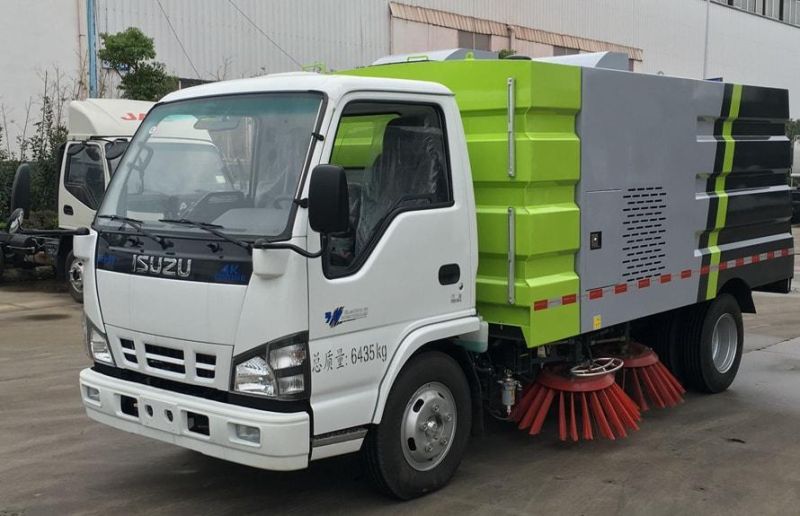

• Model NO.：CLW5081
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Cleaning Capacity：40000m2,H
• Material：Stainless Steel
• Warranty：1 Year
• Sweeping Width：2.8m
• Color：Customized
• Garbage Box Volume：2m3, 4m3, 5m3, 8m3
• Suction Rate：96%
• Sweeper Rotation Speed：80 R,Min
• Transport Package：Naked Packing
• Specification：5900x1980x2450mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Unit,Month

Technical Parameters

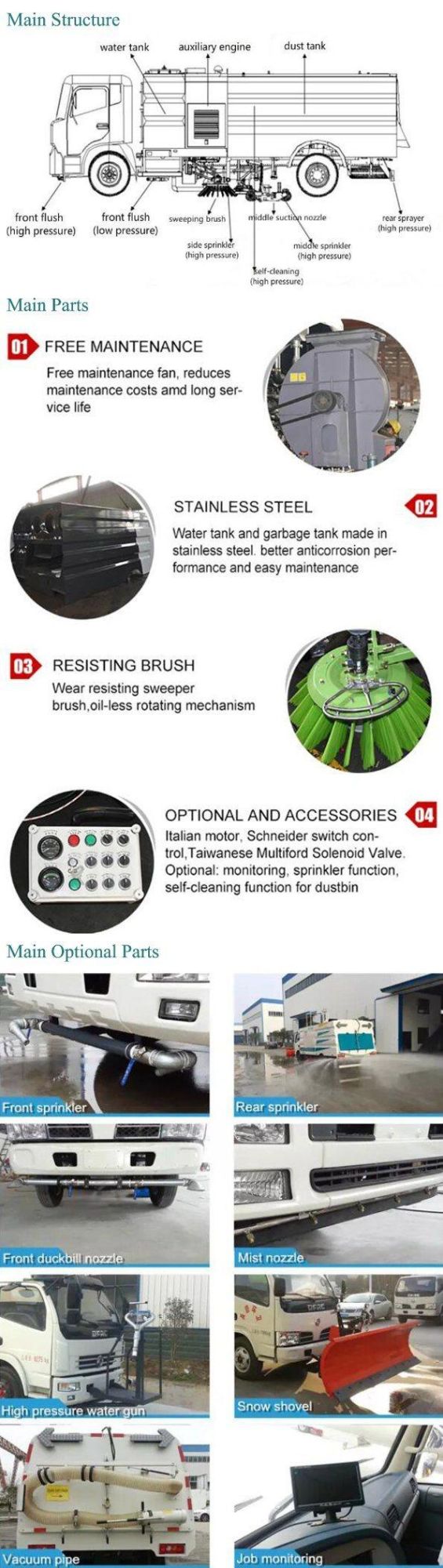

 ConditionNew condition/Left hand drive/4x2Overall Dimension(mm)5900x1980x2450Gross Vehicle Weight(Kg)6995Loading Weight(Kg)1900Curb weight(kg)4965ChassisBrandISUZUModel100pWheelbase(mm)3360 mmOverhang (front/rear) (mm)1015/1815 mmWheel track (front/rear) (mm)1504/1425 mmApproach/Departure angle(°)24/16°Axle Load(kg)2580/4720 kgMax. driving speed(km/h)110 km/hClutchReinforced diaphragm clutchBrakesOil brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity(pcs)6pcs with one spare tireSpecifications7.00-16 nylon tireGear boxManual type, 5 Forwards & 1 ReverseCabSingle row seat. With air conditioner.EngineModel4JB1CNDisplacement(ml)2771 mlPower(kw)/Horsepower(HP)72 kw/98 HPCylinder quantity(pcs)4 pcsDiámetro x carrera(mm)φ93×102mmEmission standardEuro IVUpperTankGarbage tank       Tank materialStainless steelTank volume(cbm)4.0 cbmWater tankTank materialStainless steelTank volume(cbm)1.5 cbmAuxiliary engineModelISUZUPower(kw)/Horsepower(HP)55 kw/75 HPFuel typeDieselSweeping SystemTypeFours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down.Sweeper Diameter(mm)900 mmWorking area(m)2.7-3.0 mSweeper rotation speed(r/min)80 r/minCleaning capacity40000m2/hSweeper angle
AdjustmentForerake 4°-6°and extroversion 2°-4°Remarks1, Rear LED pilot lamp
2, Self unloading box body
3, Rear vacuum cleaner
4, The tank color is optional
