• Model NO.：Crane Car carrier
• Fuel：Diesel
• Bearing Capacity：Light
• Brand：JAC
• Condition：New
• Tablet Size L * W  ：5600 * 2200(mm)
• Rope Length：23(M)
• Twisted Rope Speed：8(M , Min)
•  Max Quality Flat-Panel：3000(Kg)
• Maximum Tractor Speed：40 Km , H
• Transport Package：Nil
• Specification：Wrecker Truck Mounted Crane
• Trademark：Dongrun Ze
• Origin：China
• HS Code：8705909990
• Production Capacity：10000

WRECKER TRUCK WITH CRANE

#

Descriptions

Specifications and types

General

Truck Brand

Chengliwei (our brand)

Chassis Brand

Dongfeng

Approx. Dimension

9200*2500*3500 mm

GVW./Kerb Wt.

16000 / 9995kg

Cab

Cab Capacity

3 persons' seat

Air Conditioner

Air Conditioner is optional

Chassis

Drive Type

4X2,left hand drive

Fuel Type

Diesel

Engine Make & Model

Dongfeng /Yuchai engine

Power

220 Ps / 162KW

Displacement

6700 ml

Emission Standard

 EURO III or Euro IV

Wheelbase/No.of axle

4200,4500,4700,5100     mm / 2

Tyre Specfication

10.00-20,10.00R20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Automative metallic paint

   Operation control system

            Electrically hydraulic control



           Towing weight

                     5710KG

Crane

              Crane mode

     SQ6.3SA

              Crane weight

     2500 kg

              Max loading weight

     6300 kg

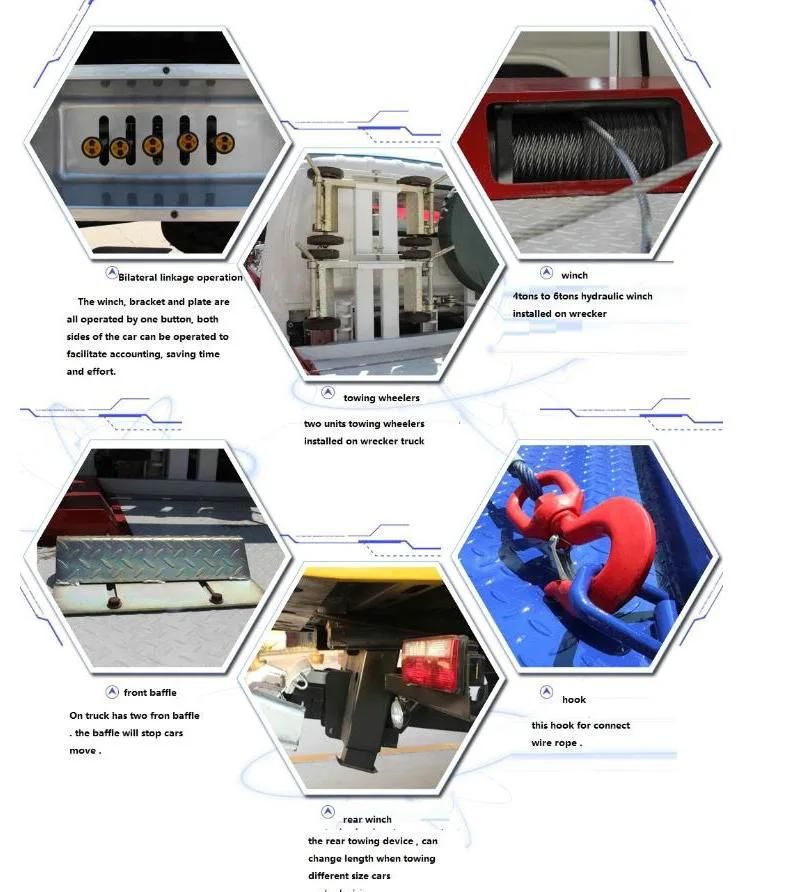

Equipments

Equipped with hydraulic pressure system

Equipped with high-altitude signal lamp

Equipped with one winch, steel wire rope length=21M

The above information is for reference only. We can produce according to your needs so,

Specification of DF 145 Wrecker / Recovery Truck ItemSpecificationItemSpecificationGeneralTruck NameWrecker / Recovery TruckOverall Dimension (mm)7800,8000×2498×2960Truck BrandDongfengGross / Curb Weight (kg)15700 / 11205Truck ModelEQ5161GFJ6Approach / Departure Angle (°)32 / 17,
32 / 15Max. Speed (km/h)85Front / Rear Overhang (mm)1245 / 2255,
1245 / 2655ChassisChassis BrandDongfengChassis ModelEQ5161GFJ6Wheel Base (mm)4700;
5100Leaf Spring9/14+10

Traction System

4 x 2Quantity of Axles2Cab Capacity1+1+4Front / Rear Axle Load (kg)5900 / 9800;
5700 / 10000TransmissionmanualFront / Rear Wheel Tread (mm)1940 / 1860Tyre Model9.00-20,
9.00R20,
10.00-20,
10.00R20Quantity of Tyre6Engine (Motor)BrandDongfengType of FuelDieselModelISDe160 30
ISDe185 30
YC6J170-31
B170 30
B190 30
YC6J170-33
B190 33
B170 33Displacement (ml)4500
6700
6500
5900
5900
6494
5900
5900Max. Power (KW)118
136
125
125
140
125
140
125Emission StandardEuro 3-5-6  Cylinder Stator4Max Torque (N.m)600Quantity of Valves Per Cylinder*Maximum Torque Speed (rpm)1400Cylinder Diameter × Stroke (mm)107 x 124Motor Rated Rotating Speed (rmp)2500Full Load Minimum Fuel Consumption Rate (g/KW.h)*Air Intake FormTurbocharged inter-cooledCompression Ratio17.3 : 1Noise From 1 Meter (dB)*Motor Net Weight (kg)*ABSyes

NOTE:

1. Any part can be customized depending on customers' demand.

2. 12 months whole vehicle warranty

3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

4. MOQ: 1 unit



If you have any questions you can contact me at any time

The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.







There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :

First type : Boom towing truck

- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts.  slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.

Second type :Wheel lift wrecker towing truck

(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire.   wheel lift wrecker tow truck  are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.

Third type :Integration towing truck  (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle.  heavy trucks are also manufactured using integrated lifts.

Forth type --Flat plates wrecker truck  (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.

Fifth type ---Lifting platform  wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.
