Overall dimensions

7680X2500X2850mm

Wheel base

3500+1250mm

Front/rear wheel track

1916/1876mm

Front/rear suspension

1510/1800mm

Approach/departure angle

35/34

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner.

Color

White, other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

6700ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co.,Ltd

Tire

Size

12.5R20 steel wire tire

Number

6+1 nos

Clutch

350 diaphragm clutch

Fuel tank

350L

Front axle

4.1 tons

Rear axle

4.4 tons

Drive form

6X6

Rated voltage

24V,DC

Transmissions

6 speed forward 1 reverse

Steering device

Power assisted steering

 More Details:

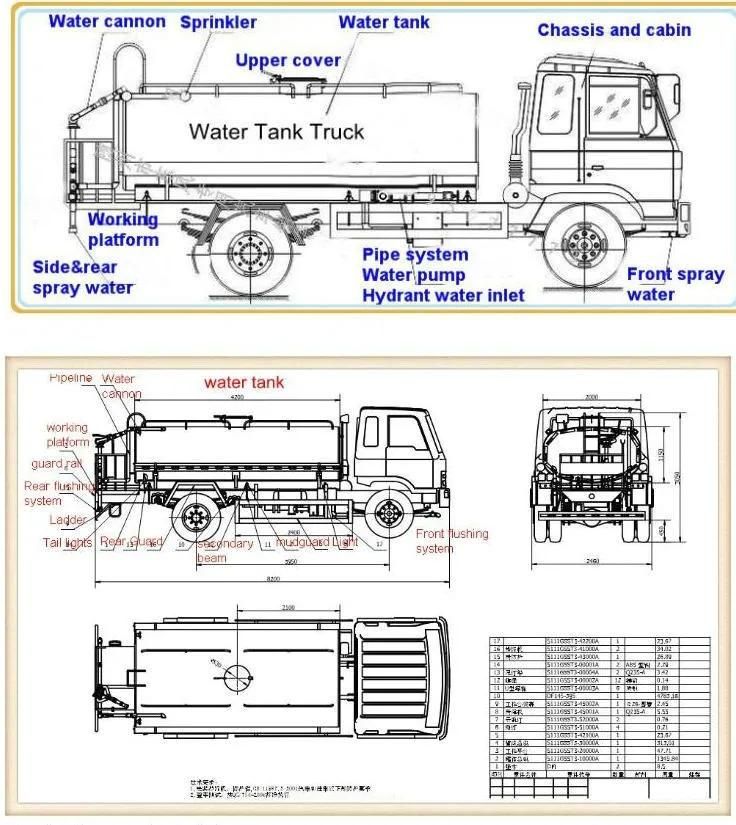

1.basic component :antirust tank, connecting device, special self suction sprinkler pump, pipeline, spray outlet, work platform

2. tank body adopts high quality carbon steel plate produced in WISCO, using a large machine molding, junction of the tank
head and body using advanced arc welding process.

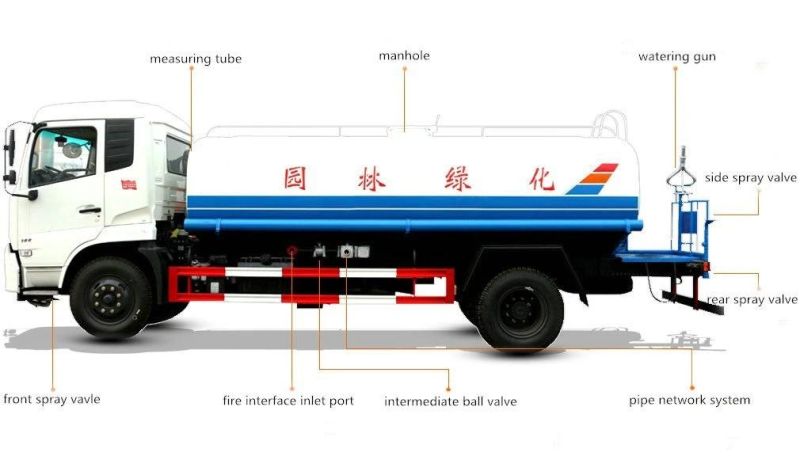

3.standard configuration: The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed
14 meters,the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump ,
with virescence sprinkler gun, the sprinkler gun can rotate 360 degrees, also can be adjusted into mist, range ≥ 15m,  vertical suction process 7M.

4.functional use: widely used in sprinkler, spray, cooling, dust removal, flushing dust booties, spray pesticides,motor pump station,etc.

5.optional configuration: medicine wheel, drug pump, tank anti-corrosion rust-proof, multi-directional water joints.



 Model    EQ2220GD5DJ Technical specifications

1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..

3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)

Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, SAIVECO, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucks

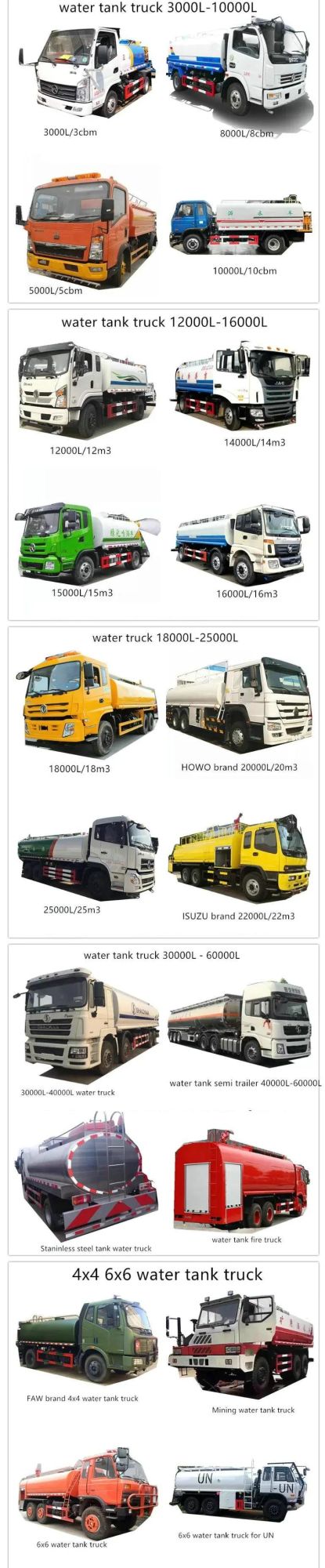

4. water tank truck pictures for refe,

Please contact with us if you need more information of the truck:

Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle

Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Certifications
