HOWO Truck Mounted Outdoor Advertising with LED Billboard Display Screen
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- Warranty：24
- Type：LED Advertising Truck
Base Info
- Model NO.：HOWO Outdoor Advertising Truck
- Application：Outdoor Activity
- Displacement：3.5L
- Intergrant：Power Supply System
- Passenger Number：3
- Fuel Type：Diesel Oil
- LED Tube Core Type：IV
- Self-powered：Without Self-powered
- LED Screen Type：PH10
- Power Supply Mode：Own Generator-powered
- Screen Dimension：5900*2025*2995
- Display Function：Video
- Steering：LHD ,Rhd
- Transport Package：Container
- Specification：3840*1760mm ( 6.8m2)
- Trademark：DRAU
- Origin：Cn
- HS Code：8705
- Production Capacity：3000
- Package size per unit product：605.00cm * 250.00cm * 320.00cm
- Gross weight per unit product：6800.000kg
Description
Classification
Item
Unit
Parameter
Vehicle
Vehicle model
DRZ5047XXCZZ4 led advertising truck
Manufacturer
mm
5995×2025×2995
Curb weight
kg
4300
Traction system
4×2
Max speed
km/h
90
Chassis
Chassis model
ZZ1047C3414D145
Manufacturer
ZhongQi Automobile Co., Ltd
Number of axles
2
Wheel base
mm
3360
Tire specification
7.00-16LT 8PR
Number of tires
6
F/R track base
mm
1605/1520
Engine
Engine model
4DW93-84E4
Fuel type
Diesel
Power
kw
64
Engine horse power
hp
87.04
Displacement
ml
2540
emission standard
Euro III
Driver's cab
Brand
HOWO
Model
Flat head, single row
Allowable seats
2
Steering
Left hand drive
Transmission
5-speed with over drive
Operation control system
Electrically hydraulic control
Air-conditioning
Optional

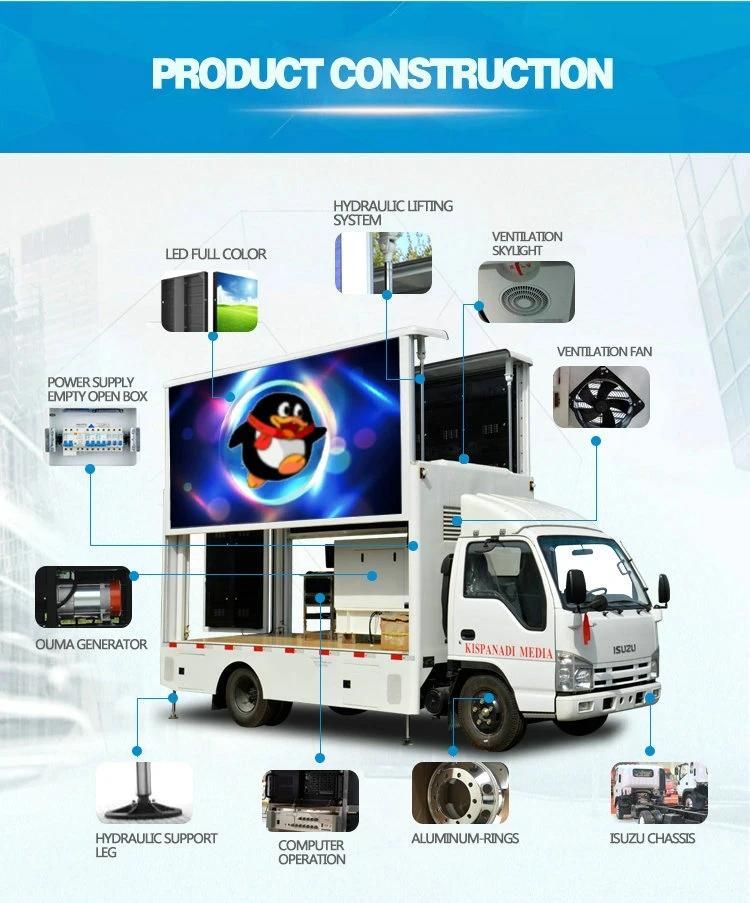

Standard equipment
1> One side waterproof P8 full color led screen;
2> The other side advertising light box with subtitle;
3> The rear side monochrome screen to display the text;
4> 5cm composite steel box, wooden floor;
5> Inside and outside the electric distribution box;
6> Loop ventilation cooling system;
7> Ouma silent diesel generator;
8>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.
Color & Painting
According to customer's requirements
FOB Shanghai
USD
LED Billboard Truck Box Boby Customizing
led screen left and right size
3840*1760mm ( 6.8m2)
rear door led screen size
1280*1440mm (1.84 m2)
Equipment configuration
1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen
2> 5cm composite steel box, wooden floor;
3> Inside and outside the electric distribution box;
4> Loop ventilation cooling system;
5> Ouma silent diesel generator;
6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier .
Color & painting
According to customer's requirements
Price
P5 full color screen x all 3 sides, $22000-$27000FOB
P6 full color screen x all 3 sides, $20000-$25000FOB
Options
(1) Lifting system 1.5m height for side led screen, add$900/one side
(2).4 hydraulic legs,add $500
(3) 9.6m2 hydraulic stage, add $700
(4) External stitching stage, add $50/m2
other
P8 :3840*1792=6.88
P6 : 3840*1728=6.65
Rear Screen :1280*1440=1.84
5995×2050×3100
3308
5595*2025*2995
3360
5995×2100×3050
3300
5995×2000×2900
3360
5995*2040*2990
3360
5595*2025*2995
3360
5990*1990*2950
3300
5995*2030*3050
3360
5995*2150*2900
3360
8760*2365*3675
4700
P8:5376*2304=12.38
P6: 5376*2304=12.38
Rear Screen 1600*1600=2.56
7290*2330*3350
3800
P8:4864*2048=10
P6: 4800*2112=10.13
Rear Screen 1600*1600=2.56
5250*1900*2750
2800
P8:2560*1536=3.93
P6:2496*1536=3.83
Rear Screen 960*1280=1.64
5100*1710*2640
3070
P8:2304*1536=3.54
P6:2496*1536=3.83
Rear Screen 960*1280=1.64
5000*1960*2590
2900
4650*1700*2400
2765
P8:2304*1408=3.14
P6:2304*1345=3.1
1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.
2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms?TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
