• Model NO.：sewage suction truck
• Fuel：Diesel
• Drive Wheel：8X4
• Brand：Dongfeng
• Models：Small
• Usage：Dump
• Condition：New
• Dimension：10995,11685*2500X3300
• Drive Type：Left,Right Hand Driver
• Color：as Customer′s Demand
• Horse Power：230-380HP
• Transport Package：Nude Package
• Trademark：SATA
• Origin：Shandong, China
• Production Capacity：100000 Units,Year

Basic Info.

Model NO. sewage suction truck Fuel Diesel Drive Wheel 8X4 Brand Dongfeng Models Small Usage Dump Condition New Dimension 10995/11685*2500X3300 Drive Type Left/Right Hand Driver Color as Customer′s Demand Horse Power 230-380HP Transport Package Nude Package Trademark SATA Origin Shandong, China Production Capacity 100000 Units/Year

Product Description

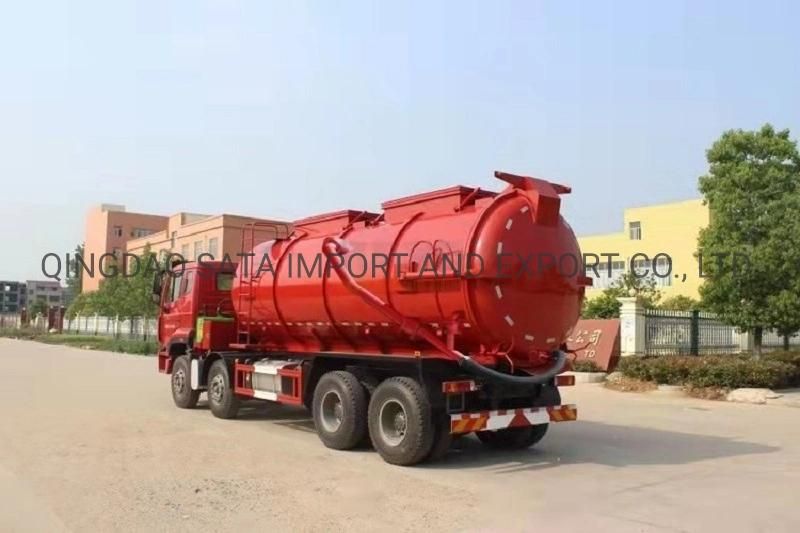

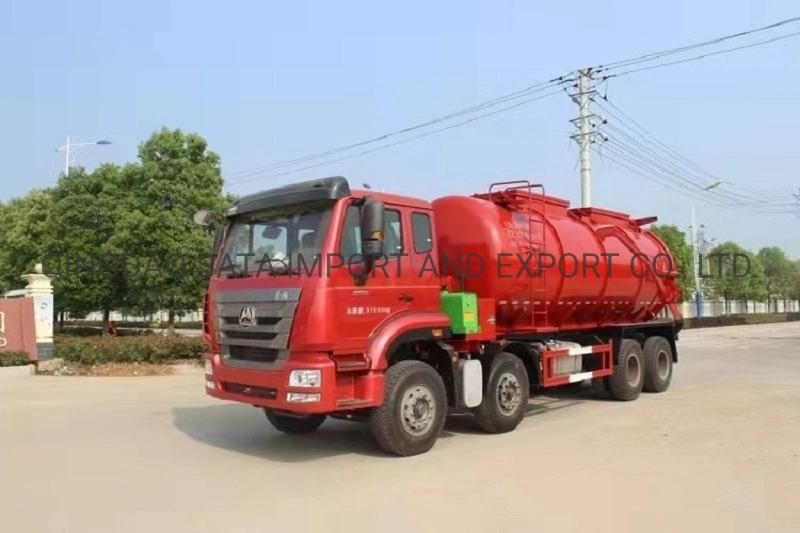

Sinotruk 8x4 Multi-functional  Sewage Suction Truck
Production features:
1. The separator effectively isolates water vapor to reduce the amount of water vapor in the vacuum pump;
2. Reinforced 100 mm PVC discharging tube effectively handles compression, wear, and aging;
3. The tank's non-overflow valve can prevent overflowing caused by excessive suction; The combined pressure and vacuum gauge allows convenient observation of suction
and internal pressure during discharging.

Specification:
chassis model:

Model	ZZ1317N4347W	ZZ1317N4647W
cabin	Single  seat enclosed cabin	Single  Seat enclosed cabin
Overall dimensions (L*W*H)	10250×2480×2900	10730×1520×2900
Tank capacity	1.5	2
Engine type	WD615.69 WD615.47	WD615.69 WD615.47
TRANSMISSION	HW19710	HW19710
Tire	11.00R20	12.00R20
Curb weight	10440	10700
payload	31000	31000
Max. speed	95	95
Pumping ratio(L/s)	25-34	25-34
Max.vacuum degree(MPa)	-0.08	-0.08
Suction time(min)	10-13	10-13
Suction depth(m)	≥6	≥6

10-23m3 model:

Model	CSC5181GXWD
cabin	HW76 Cabin with sleeper berth
Overall dimensions(L*W*H)	10250×2500×3650
Tank capacity	23-35
Engine type	HOWO brand ,WD series
Tire	12.00R20
Curb weight	10879
payload	31000
Max. speed	95
Pumping ratio(L/s)	87
Max. vacuum degree(MPa)	0.8
Suction time(min)	10-12
Suction depth(m)	≥8.5

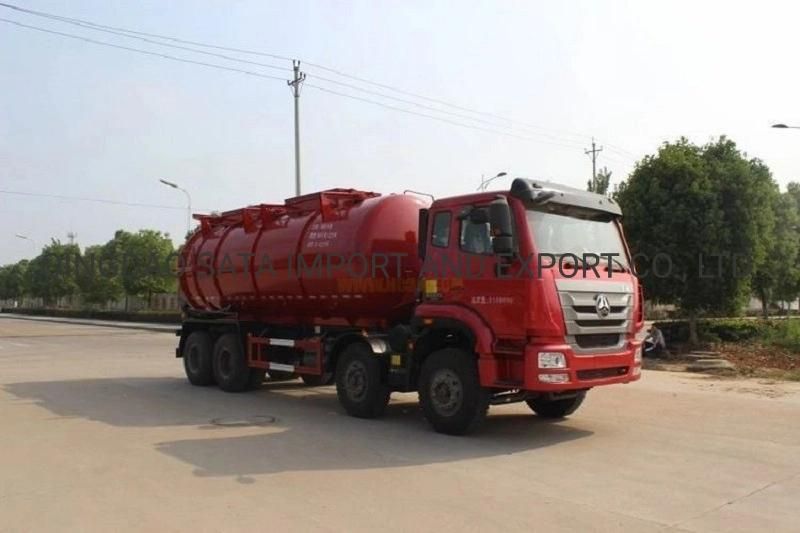

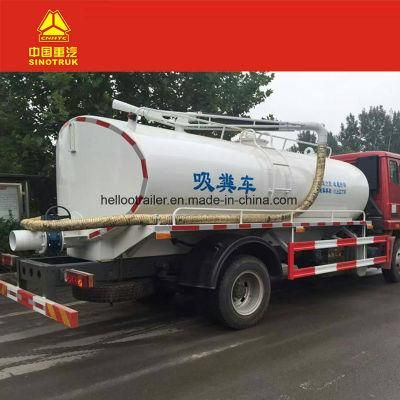

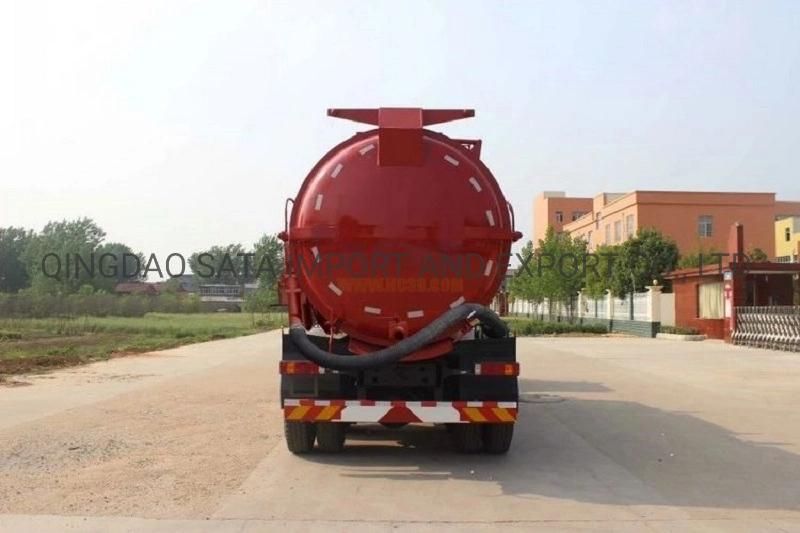

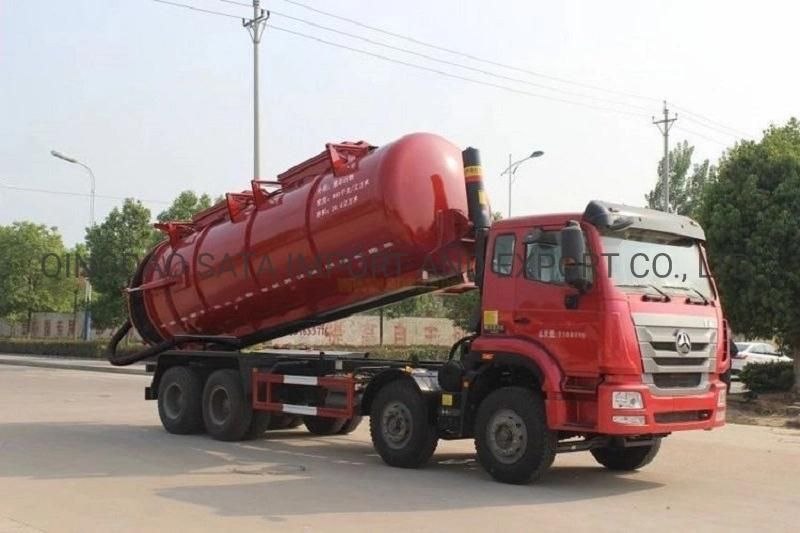

Pictures show:








Also we can provide five major solutions for urban and rural sanitation construction:

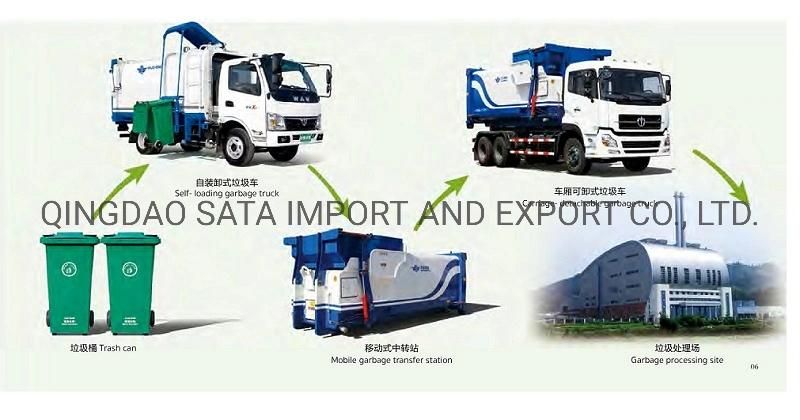

Project 1:Trash can+Self-loading garbage Truck+Garbage transfer station
In this project,the trash is lifted by self-loading garbage truck,and then poured into the garbage truck,at last,the garbage is transported to transfer station for centralized processing.
One trash can could serve 15-20 households,and each garbage truck can equipped with 500 trash cans.Only one person is needed for all the operations on every garbage truck.

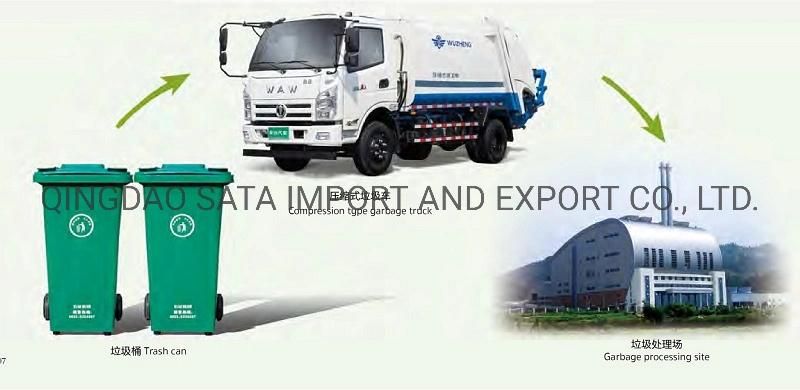

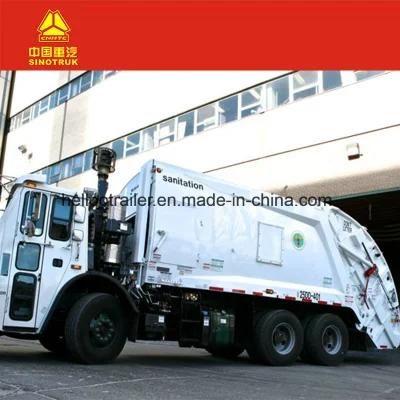

Project 2:Trash can +Compressed Sanitation truck+Garbage disposal site

In this project,the garbage is poured into and automatically compressed in the garbage truck,and then the garbage will be transported to the garbage disposal site.This efficient solution is suitable for the cities and towns which had dense population.

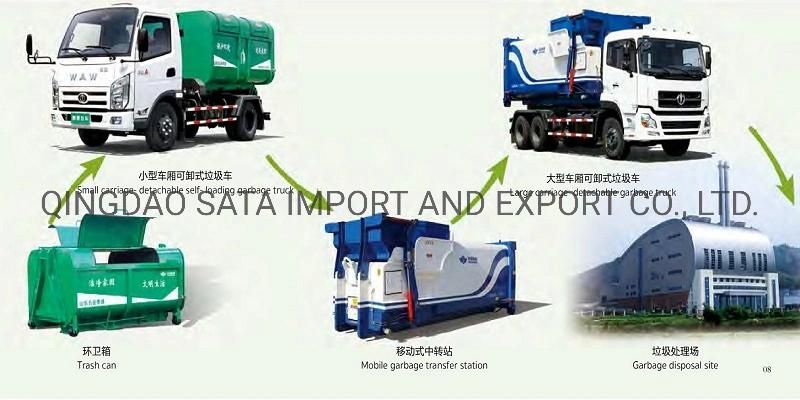

Project 3:Trash can+Small Carriage-detachable self-loading garbage truck+Garbage transfer station+Carriage-detachable garbage

In this project,the trash is placed on both sides of the road along where the residents live,and the small carriage-detachable self-loading garbage truck can transport the garbage to the transfer station for compression,and then through Carriages-detachable garbage truck,the garbage will be transported to garbage disposal field.
One garbage box serves for every 150 people,each vehicle can complete the collection and transportation of 20 garbage boxes.Only one person is needed for all the operations of every truck.

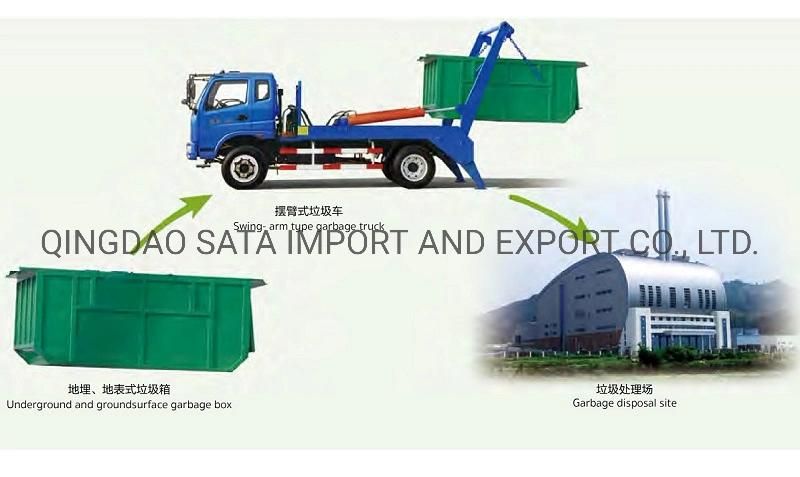

Project 4:Underground and ground garbage truck+Swing-arm garbage truck+ Garbage processing site

In this project,the garbage box is placed on the ground or in bottom tank,and the users dump garbage in the garbage truck,which will be lifted and transported to the processing station for centralized processing by the truck with swing arm.

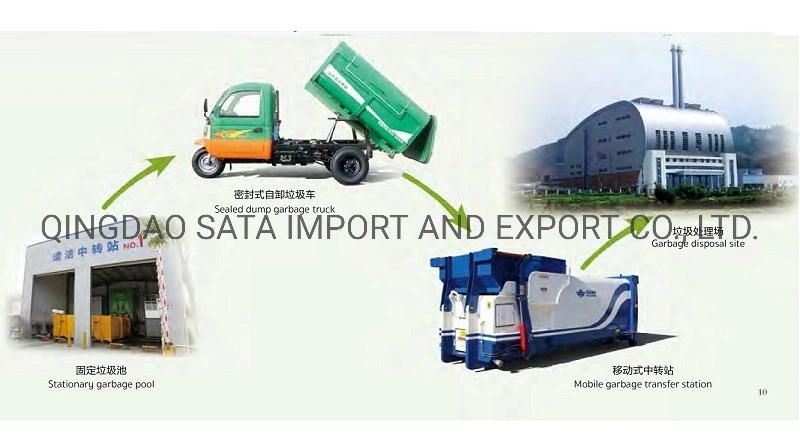

Project 5:Stationary garbage pool+Sealed dump garbage truck+Transfer station

In this project,garbage is collected through garbage pool and transferred to garbage truck manually,and then the vehicle will transported garbage to transfer station for compression,and then come to the landfill of the garbage.
Sealed dump garbage truck had more than 20 types including tri-wheel vehicles and trucks,and we can also achieve optional customization according to the special requirements of users.

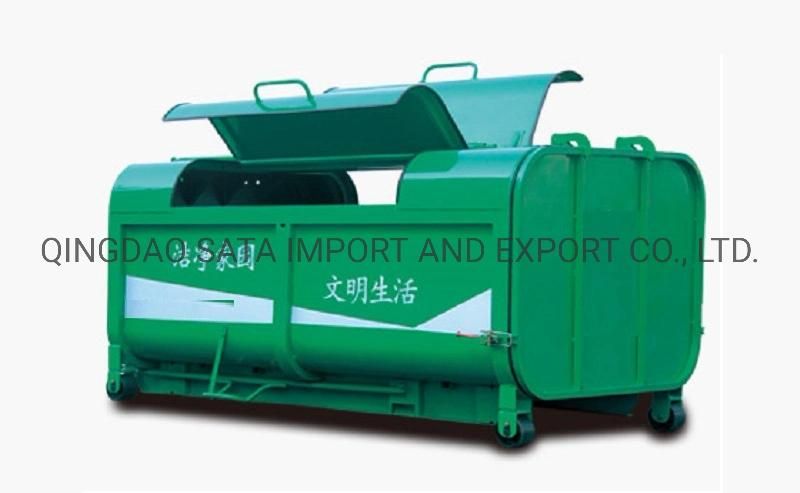

Trash can:




Our Services:
1.12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2.We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3.With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4.Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5..Drive model: 4*2, 6*4, 8*4;
6. Number of beehives: 40 48 64 80 96 100 240 .etc
7. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
8.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
9.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6

Packaging & Shipping
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container

Trust us:
1.12 years export experience for vehicles, good at controlling our products' quality.
Choosing us ,you choose professional supplier.
2.The good faith management is our philosophy,and welcome visits our company at any time.
3.According to your order, we provide suitable trailer.
4.We also provide rational packing and shipping program, let shipment save money and security.
Just trust us,you will get a satisfactory answer.
