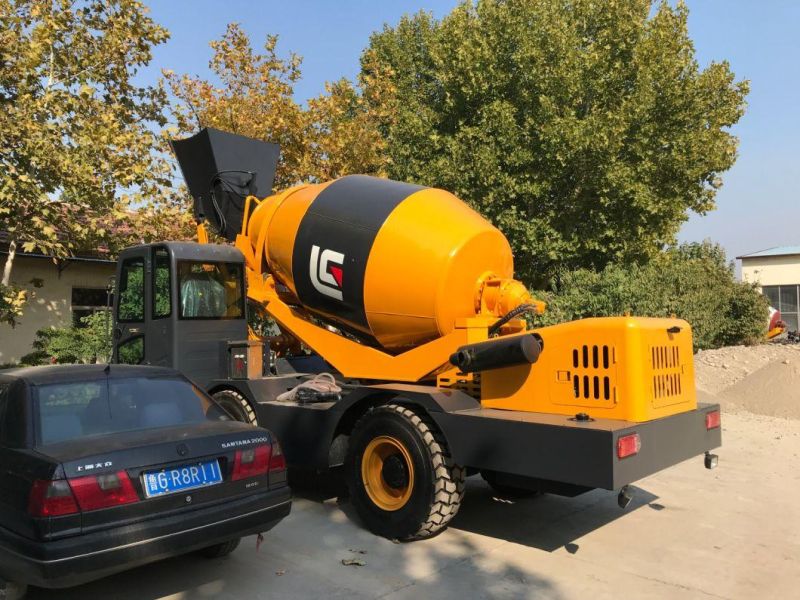

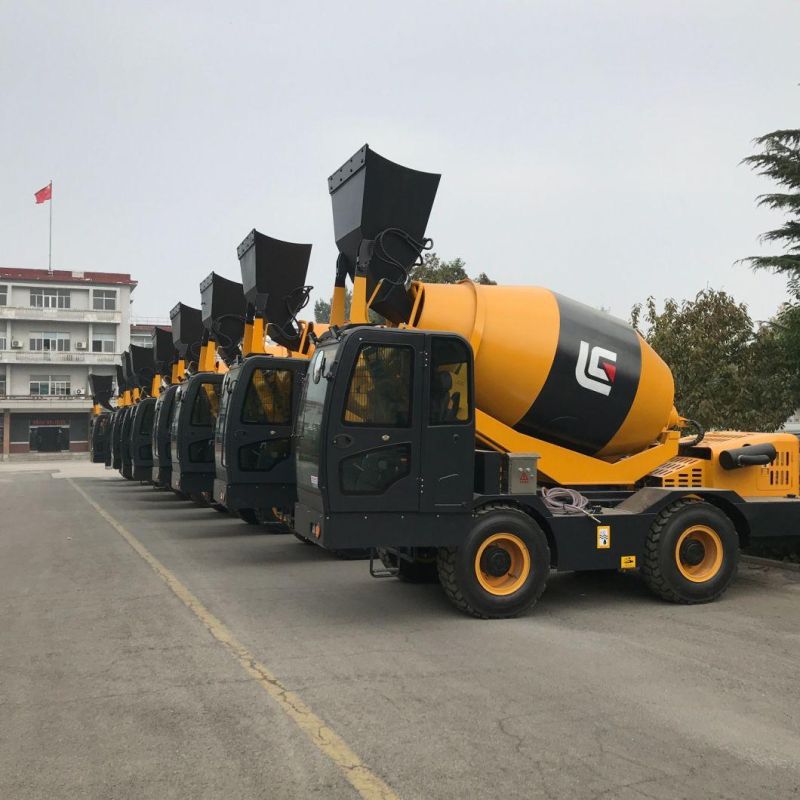

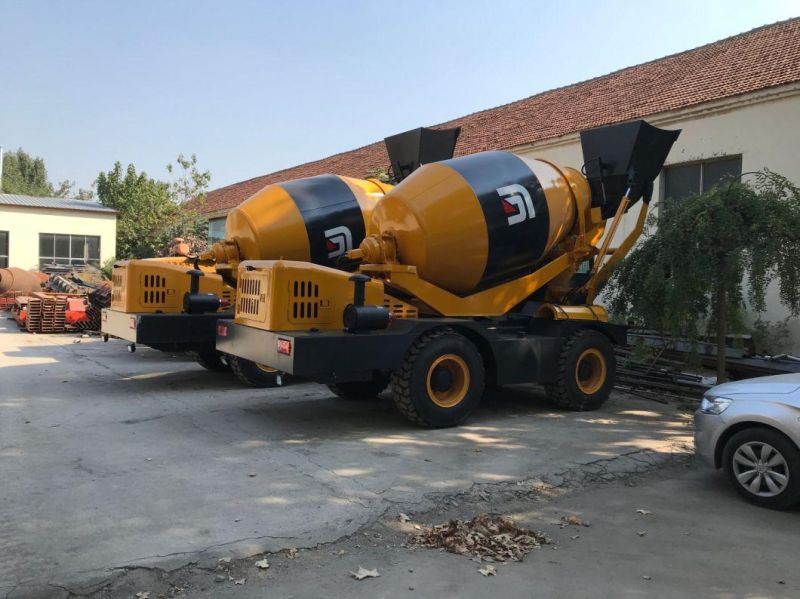

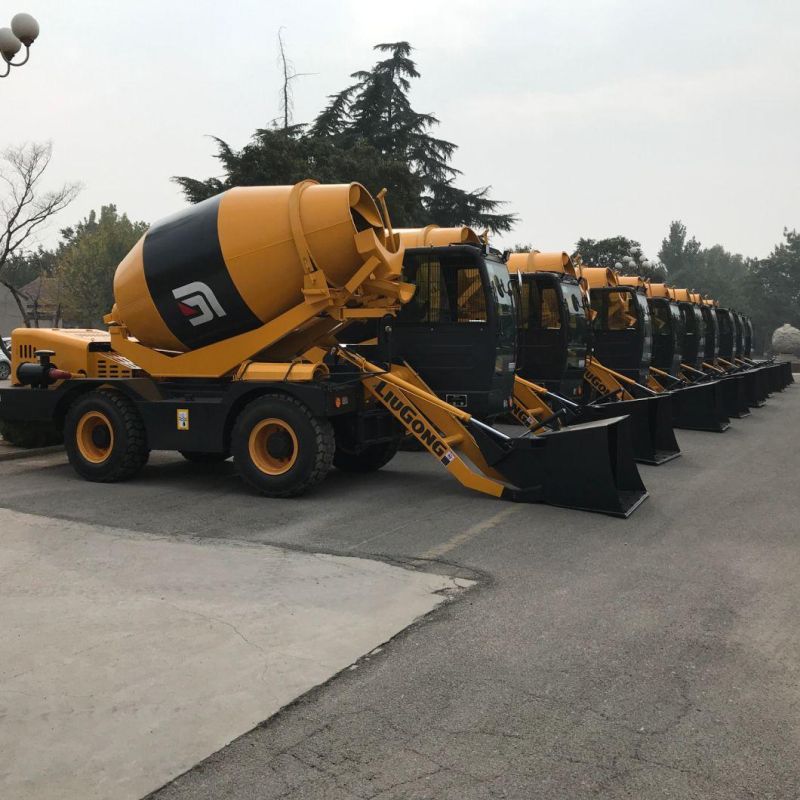

Liugong 4m3 Self Loading Concrete Mixer Hy400 for Sale
Evangel Industrial (Shanghai) Co., Ltd.- Certification：ISO9000
- Transmission Type：Automatic
- Emission Standard：Euro 2
- Displacement：4
- Payload：8800kg
- Fuel：Diesel
Base Info
- Model NO.：HY400
- Drive Mode：4X4
- Maximum Horsepower：82kw
- Condition：New
- Max.Output：4m3
- Gross Weight：12675kg
- Load Capacity：0.6m3
- Transport Package：Nude Package
- Specification：7500*2700*3380mm
- Origin：Shandong, China
- HS Code：8474310000
- Production Capacity：50units,Month
Description
Name
Item
Specification
Net Weight
8300 KG
Gross Weight
12675KG
Transmission
Full Hydraulic
4 WD
Brake
Air Brake
Chassis
Off-road
Tread
1880mm
Wheelbase
2250mm
Loader bucket
capacity
0.6m3
Control tyre
Hydraulic
Tilt angle
30%
Travel Speed
High
0-25KM/H
Low
0-20KM/H
Mini turning radius
6.5M/R
Tyre model
16/70-20
Engine
Type
YUNNEI
Rated Power/RPM
92KW/2200RPM
Max.Torque/RPM
460N.M/1400RPM
Cylinder No.
4
Starter
Electric
Cooling type
water cooling
Maxing Drum
Output capacity
4M3
Bank Angle
16 °
Rotation Angle
19-21R/min
Chute
Swing Angle
≥60°
Angle control
Hydraulic
Size
Length:90cm
Loader
Weighing model
computer control
Concrete Standard
C15.C20.C25 C30
Accuracy
Cement
≤±2%/time
Relative Error
≤±3%/time
Water
≤±1%/time
Additive
≤±1%/time
Admixture
≤±2%/time
Loader control
Hydraulic 4 way stick
Hydraulic oil tank
240L
Water tank
550L
Over size
7500*2700*3380mm
