• Model NO.：4X2 Sewage Suction Tanker Truck
• Drive Wheel：4x2
• Condition：New
• Overall Dimension：8250×2490×3300 mm
• Drive：6X4, LHD(Rhd)
• Cab：Driver + 2 Passengers, One Sleeper
• Transmission Box：8forward Gears 1 Reverse Gear
• Tire Type：10.00-20
• Power Source：Driven by Main Engine Through Pto Shaft.
• Max Speed：90 Km,H
• Wheelbase：4500mm
• Transport Package：Bulk Cargo Ship, RO-RO Ship, Flat Deck
• Specification：ISO
• Trademark：SINOTRUK
• Origin：China, Shandong
• HS Code：8704210000
• Production Capacity：1000 PCS Per Month

Basic Info.

Model NO. 4X2 Sewage Suction Tanker Truck Drive Wheel 4x2 Condition New Overall Dimension 8250×2490×3300 mm Drive 6X4, LHD(Rhd) Cab Driver + 2 Passengers, One Sleeper Transmission Box 8forward Gears 1 Reverse Gear Tire Type 10.00-20 Power Source Driven by Main Engine Through Pto Shaft. Max Speed 90 Km/H Wheelbase 4500mm Transport Package Bulk Cargo Ship, RO-RO Ship, Flat Deck Specification ISO Trademark SINOTRUK Origin China, Shandong HS Code 8704210000 Production Capacity 1000 PCS Per Month

Product Description

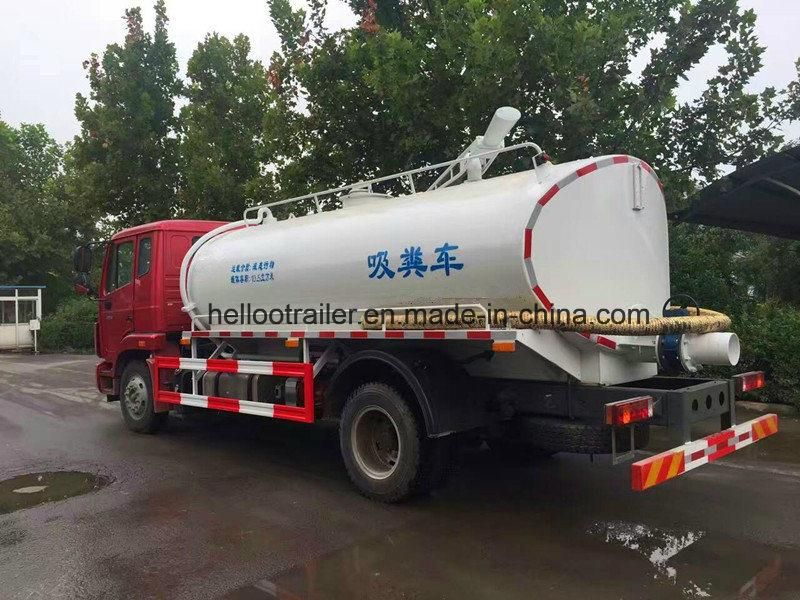

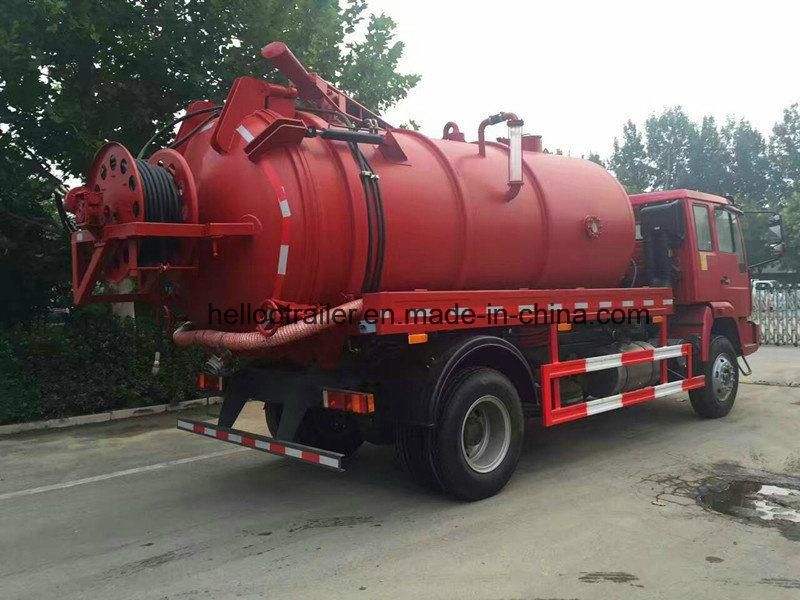

High Pressure Cleaning 4X2 Sewage Suction Tanker Truck

  1. Reinforce the tank to take pressure when working;

  2. Truck with lifting system and rear door could be open to clean residue out of tank.






Loading capacity	10 m3
Drive type	6x4, RHD(or RHD)
Engine	Cummins B190
Rated power	190 HP
Overall dimensions (LxWxH)	8250x2490x3300 mm
Cab	Driver + 2 Passengers ,one sleeper
Tyres x Quantity	10.00-20
Steering	ZF8118
Transmission	8Forward Gears 1 reverse gear
Tank Construction	horizontally mounted tank with domed ends, Internal welded surge baffles Full tank length sub frame with side walks, Access ladder to top inspection cover Sub frame integral with tank & dismountable from chassis Lockable quick release locking mechanism on inspection cover
Pumping Equipment	Power Source : Driven by main engine through PTO shaft. Pump Accessories: Vacuum pressure gauge, Automatic pressure relief valve, Automatic vacuum relief valve, 100 mm diameter wire reinforced rubber suction hoses with quick release couplers at ends, One hose with 100mm steel pipe at one end for dipping into effluent load, Pump intake air filter, Moisture trap/secondary shut off valve.

Packaging & Shipping

1. Package: Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck.
We use best transportation solution to save your sea freight cost.

2. Delivery time: 30 days after deposit

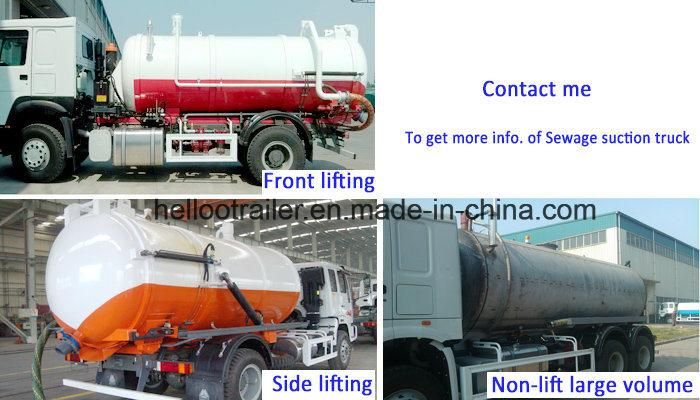

Others model
