• Model NO.：CLW5124GB
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Dump, Sealed, Compression Type
• Condition：New
• Hand Driving：LHD or Rhd
• Material：Carbon Steel
• Horsepower：180 HP
• User Manual：Yes
• Logo：as Per Customer′s Request
• Chassis Brand：Dongfeng, Foton, HOWO, Shacman, Isuzu
• Fuel Type：Diesel
• Tank Thickness：5mm
• Campacting Ratio：0.6-0.8 Ton,Cbm
• Operating System：One in The Cabin,One on The Back of The Truck
• Operating Video：Yes
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：8350*2490*3250mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

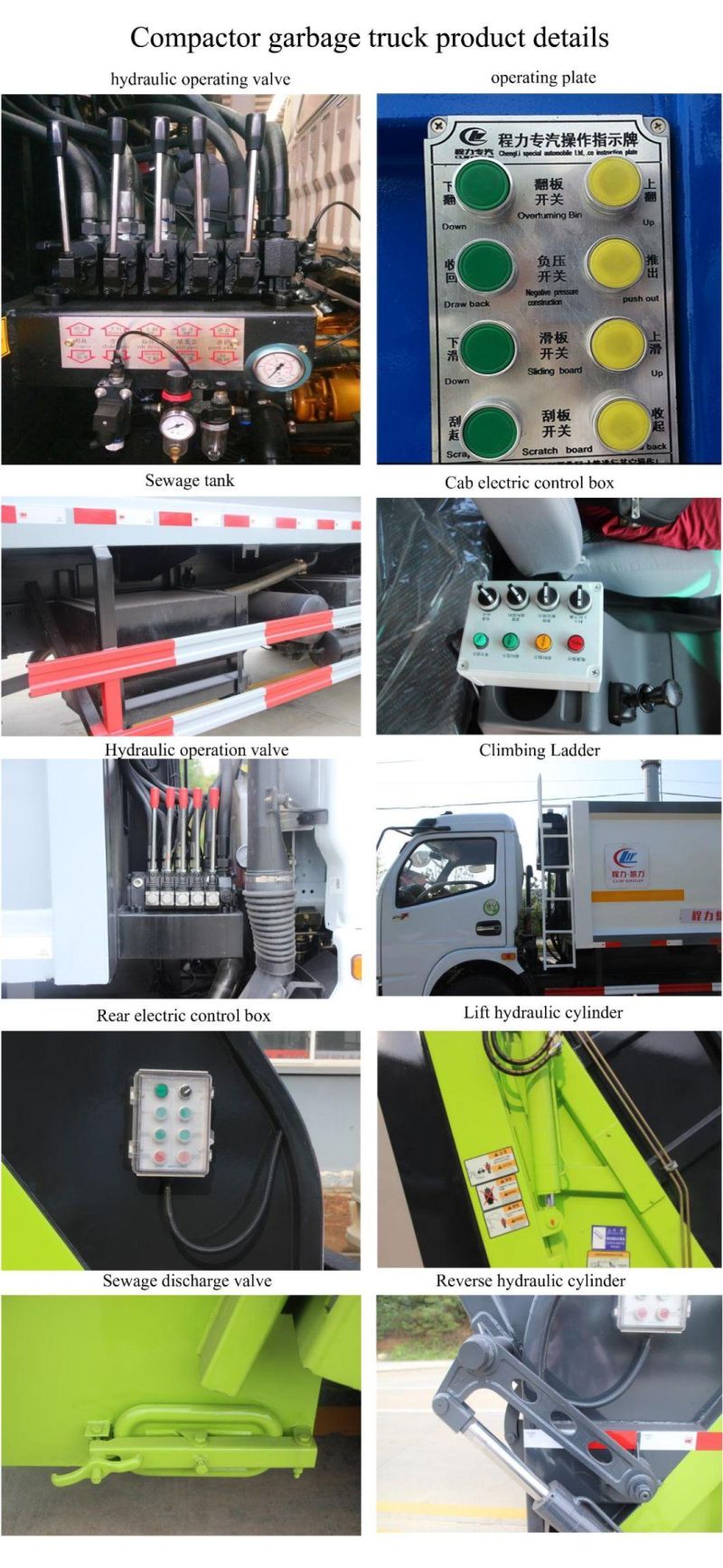

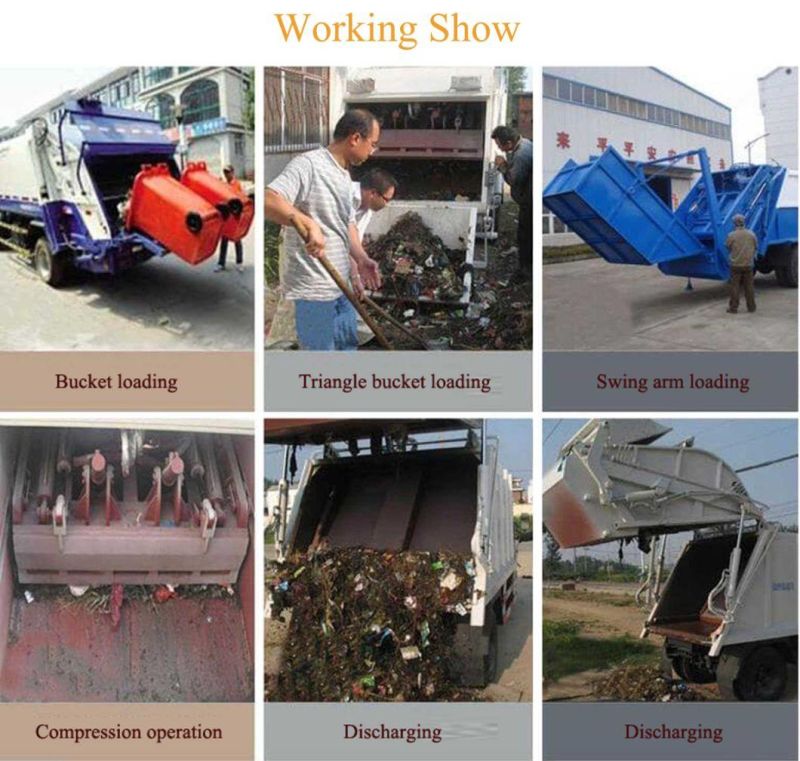

CabinDriving type 4x2With A/C. Left Hand Drive.Vehicle Main DimensionsOverall dimensions (L x W x H)mm8350*2490*3250mmWheel base (mm)4700Wheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/16Weight in KGSTare Weight9850Front axles loading capacity4500kgRear axles loading capacity9000kgMax. driving speed(km/h)110EngineBrandCummisType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)180 HPEmission standardEuro III/IV/VGearbox6 forwards &1 reverseClutchDiaphragm spring clutchSteering GearPower steeringTire9.00R20 All radial tires with one spare, 7 piecesCompression garbage box body systemBody Volume14m3Material Thickness5mmCycle Time of Filling(S)≤40Lifting Time of Filler(S)8-10Time of Discharging≤60Working Pressure(MPA)16Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage, and the sewage generated in the process of the compression all go into the sewage tank.
