• Model NO.：CL5250G4YG
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
• Delivery Time：Shipped in 30 Days After Advanced Payment

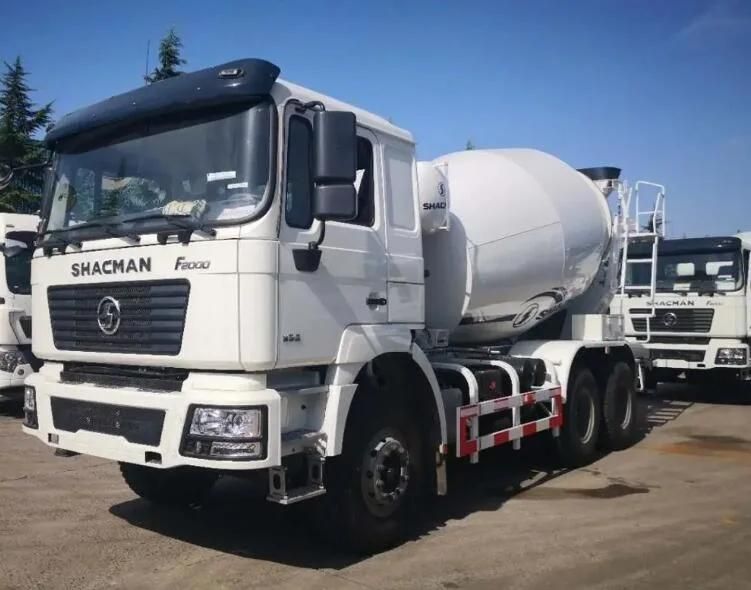

• Product Name：9cbm Shacman F2000 340HP Cement Mixer Truck Concre
• Drum Mixing Volume：10cbm
• Reducer Brand：Italy Brand, Bonfiglioli
• Warranty：One Year
• Hydraulic Motor Brand：America Brand, Sauer
• Engine：Wp10.340e32
• Hydraulic Pump：Eaton, Sauer or Chinese Brand
• Hydraulic Pump Brand：America Brand, Sauer
• Name：Concrete Transport Truck

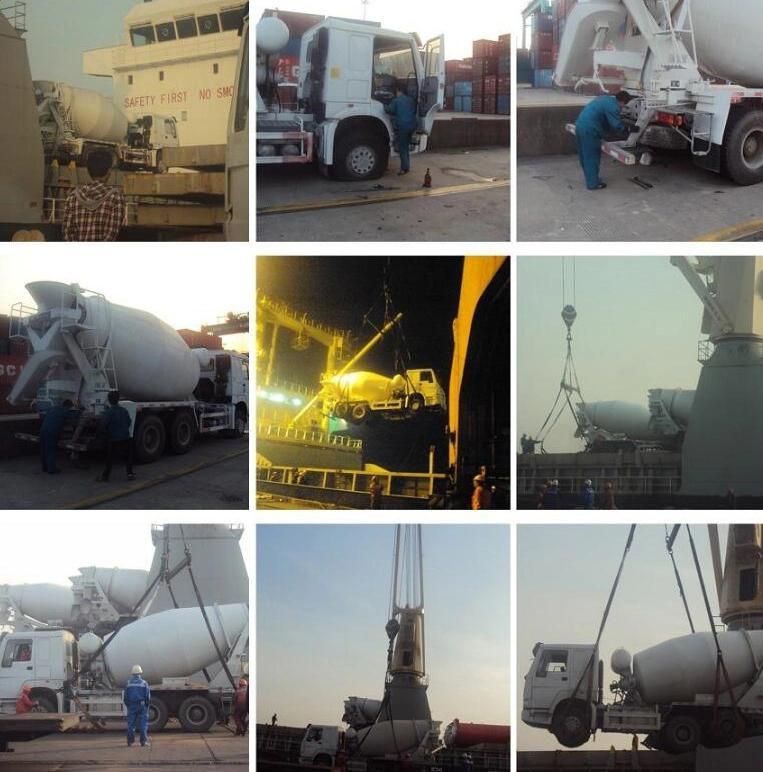

• Transport Package：RO-RO Ship, Bulk Ship, Container
• Specification：10000*3000*4000
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Truck SpecificationChassis modelCL5250GJBS3Cabshaman F2000 cabDriving Type6*4 left hand drivingMax Speed (km/h)80Overall dimension(mm)9135×2500×3774(mm) GVW( kg)25000(Kg)Mass in working order ( kg)14000(Kg)Wheelbase(mm)3775+1400F/R track base (mm)2030/1860F/R overhang (mm)1525/2460Approach/Departure Angel20/19Tire12.00R20ClutchSingle-plate dry diaphragm spring clutchSteeringHydraulic steering with power assistanceGear box10 jsd140BridgeFront axle9 tonRear axle16 tonEngingModelWP10.340E32Fuel TypeDiesel fuelTypeWater-cooled , four-stroke, direct injectionExhaust(ml)9726Max output power/rotate speed (hp /rpm )340/2200Max torque/rotate speed(N.m/rpm)1250/1400-1600Braking  systemService BrakeCompressed air brakePark BrakeSpring energyAuxiliary brakeengine exhaust brakeEletric system24vUpper-Body  specification Drum mixing volume (m3)10 Input rate (m3/min)≥2.8Output rate (m3/min)≥1.2  Filling rate65%Residual rate≤0.5%  Rotate Speed(rpm)0-17  ReducerDescription    Reducer brandItaly brand, BONFIGLIOLI 580  Gear ratio1:131Torque (N . m)60000  Max input speed(r/min)20Output flange Angle(°)-3 - 3  Hydraulic PumpDescription    Hydraulic pump brandAmerica brand, SAUER(T90-075)  Max Flow rate (L/min)270Rated pressure (MPa)420  Max output power/Rated pressure (kw)134Max torque/Rated pressure (N.m)730  Hydraulic MotorDescription    Hydraulic motor brandAmerica brand,  SAUER  Max Flow rate (L/min)280Rated pressure (MPa)40  Weight(kg)18Max torque/Rated pressure (N.m)730  Water Supply System Description                                                                  Water supply typeAir pressureWater tank volume (L)450
















Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
