• Model NO.：CLW5219K3HLQ
• Drive Mode：6x4
• Maximum Horsepower：200-300hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
• Delivery Time：Shipped in 30 Days After Advanced Payment
• Brake：Air Brake
• Material：High Strength Steel
• Hydraulic Motor：PMP,Eaton, Sauer or Chinese Brand
• Warranty：One Year
• Axle Load：7000 , 16000kg
• Mixer Drum：6m3, 8m3, 10m3, 12m3, etc.
• Hydraulic Pump：Eaton, Sauer or Chinese Brand
• Reducer：Zf, Bonfiglioli or Chinese Brand

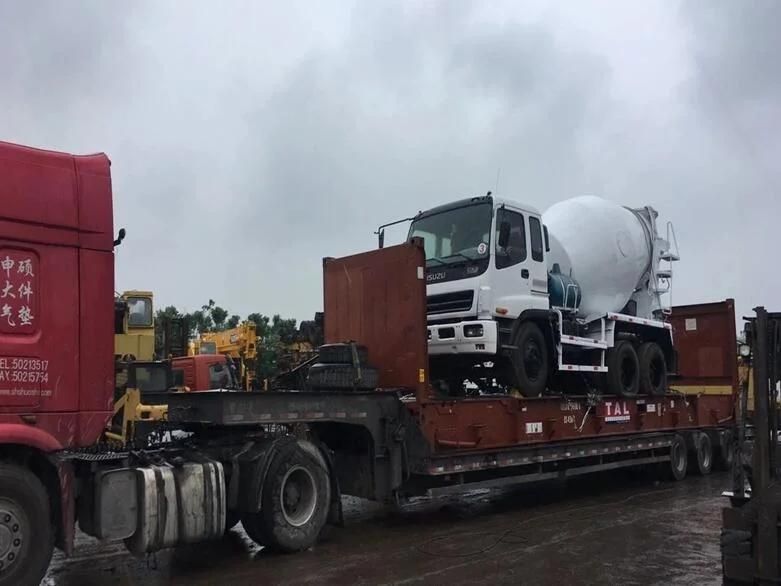

• Transport Package：RO-RO Ship, Bulk Ship, Container
• Specification：9480*2490*3980mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

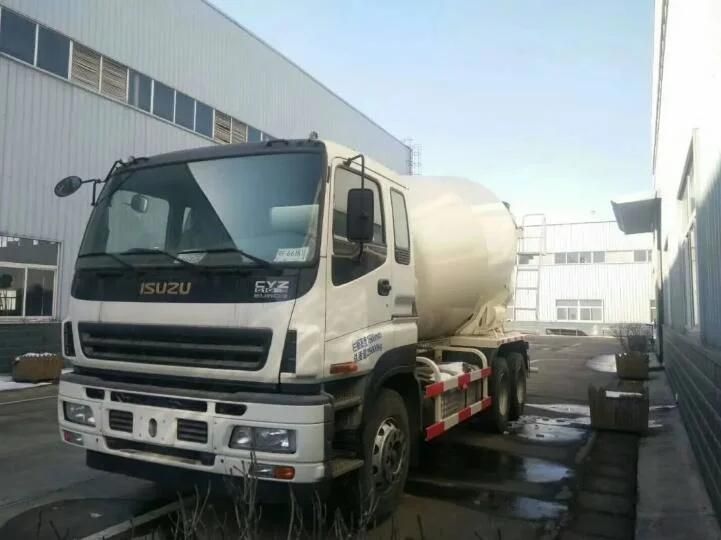

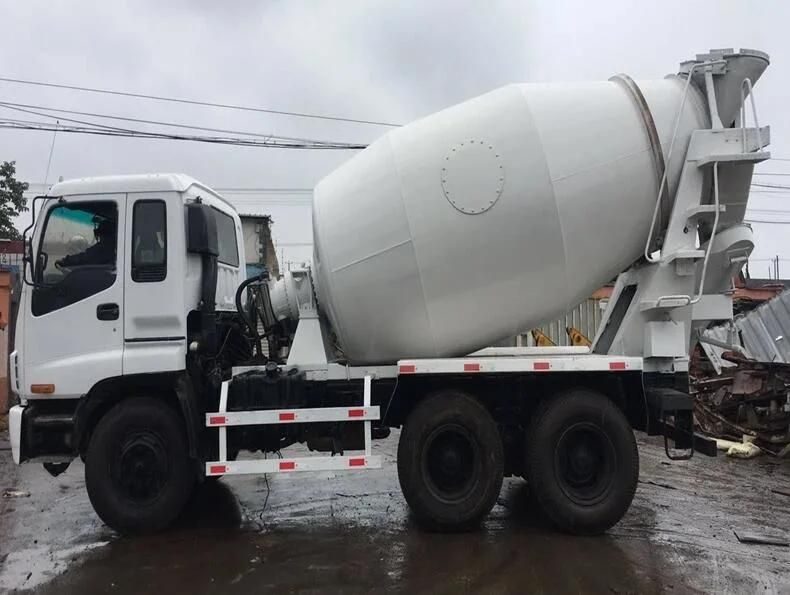

ConditionNew condition/Left hand drive/6X4ChassisBrandIsuzuGross vehicle weight25000 kgCurb weight(kg)15800 kgWheelbase(mm)4350+1300mmDimensions(mm)9480×2490×3980 mmAxle Load(kg)7000/ 16000kgMax. driving speed(km/h)90 km/hBrakeAir brakeTireNumber10pcs with one spare tireSpecifications12.00R20Fuel tank(L)380 LTransmission10 Forwards and 2 Reverse with PTO                                              CabinIt can accommodate three people, With Air conditionerEngineHorsepower(HP)340 HPEmission standardEuro 4UpperMixer drumMax. Capacity12 m3MaterialHigh strength steel Q345, 5mm thicknessVaneMaterialAlloy steel Q345, 4mm thicknessSpecificationFeeding Speed (m3/min)≥2.8Discharging Speed (m3/min)≥1.2Discharging Residual rate(%)≤0.5Mixing Tank Rotating Speed (RPM)0-17Discharging range180° full rangeDriving systemOptionOption 1Option 2Option 3Hydraulic PumpUS EATON 5423SAUER 75SUNNY 56Hydraulic MotorUS EATON 5433SAUERSUNNY 63ReducerGermany ZF4300 brandItaly BonfiglioliChina local brandRadiatorChina local brandWater supply systemWater Tank Capacity (liters)400Water supply typePneumatic water supplyControl systemControl WayConnecting Rod ControllingStructure Features

1. 1. Color is optional
















   Products Catalog:

   1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
   2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
   3. Truck with crane / Truck mounted crane
   4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
   5. Fire Fighting Truck / Fire Truck / Fire Vehicle
   6. Concrete Mixer Truck
   7. Van truck /Refrigerated truck
   8. Fecal suction truck / Sewage suction truck,
   9. Cement Powder Tank truck/ Bulk cement truck
   10. High-altitude operation truck,
   11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
   12. Tractor
   13. High Pressure Cleaning Truck

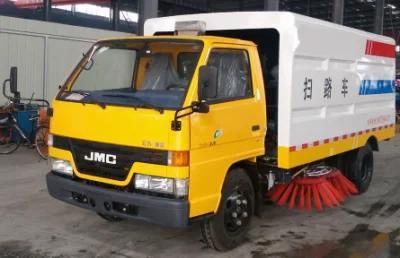

   14. Sweeper Truck
