• Model NO.：MQF5110GQXD5
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Specification：8270*2500*2915
• Trademark：qunfeng
• Origin：Quanzhou

Basic Info.

Model NO. MQF5110GQXD5 Cleaning Process Cold Water Cleaning Condition New Specification 8270*2500*2915 Trademark qunfeng Origin Quanzhou

Product Description

Product Description
Description:

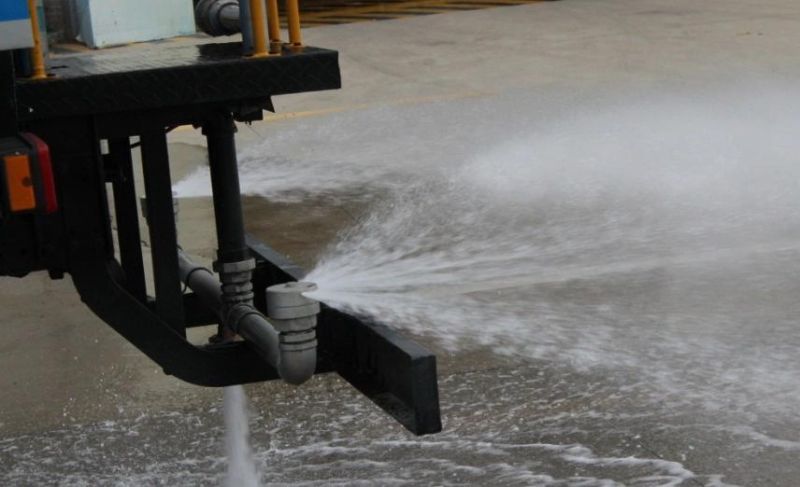

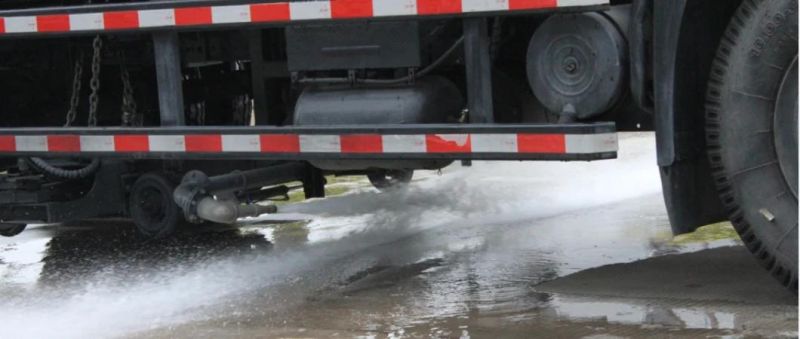

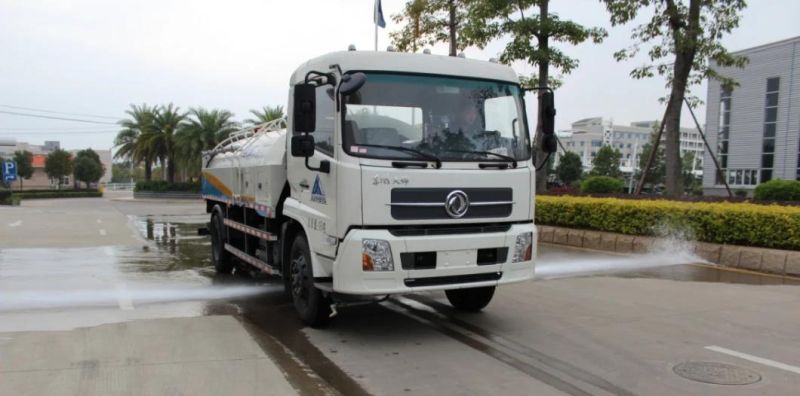

MQF5110GQXD5 Road Cleaning Truck is with functions of road cleaning, flush, rear spray, corner spray and high pressure water cannon. It is mainly used to dust extinguishing, cooling, cleaning and garden irrigation. The high pressure water cannon could mist spray for emergency fire fighting, gardening and washing.Meanwhile, the truck also could be used to transport drink water.
Main Features:
Electricity, gas centralized control, convenient and flexible operation. The driver can finish various operations except holding the spray gun, which reduce the labor intensity of the driver, improve safety and comfort.
The truck use domestic advanced modified second class chassis, with features of low fuel consumption, high quality turbo engine, good dynamic performance, large torque backup, GB V emissions, and excellent driving control performance.
Rear worktable, equipped with water cannon, and with functions of auxiliary fire fighting.
The main cleaning way is low pressure with big flow, which is simple and high efficiency. Water tank is equipped with low water level sensor alarm system. It will alarm and cut off automatically the high pressure water pump when water level is low, to avoid water pump broken down.
The oval tank is processed with strict pickling and anti-corrosion, which has good rush resistance.






Technical Parameters:

Technical Data	MQF5110GQXD5
Dimension:L×W×H(mm)	6900×2215×2650
Water tank capacity(m³)	5.7
Chassis model	EQ1110SJ8BDC
Weight(kg)	11450
Unladen mass(kg)	5750
Wheelbase(mm)	3800
Engine model(kW)	CY4SK251 /115
Emission standard	GB V
Low pressure pump model	65QZB-50/110N
Low pressure water flow (m³/h)	50
Top cannon range (m)	≥30
