• Model NO.：MQF5070ZZZJ5
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. MQF5070ZZZJ5 Production Capacity 2000 Sets/Year

Product Description

Function And Usage

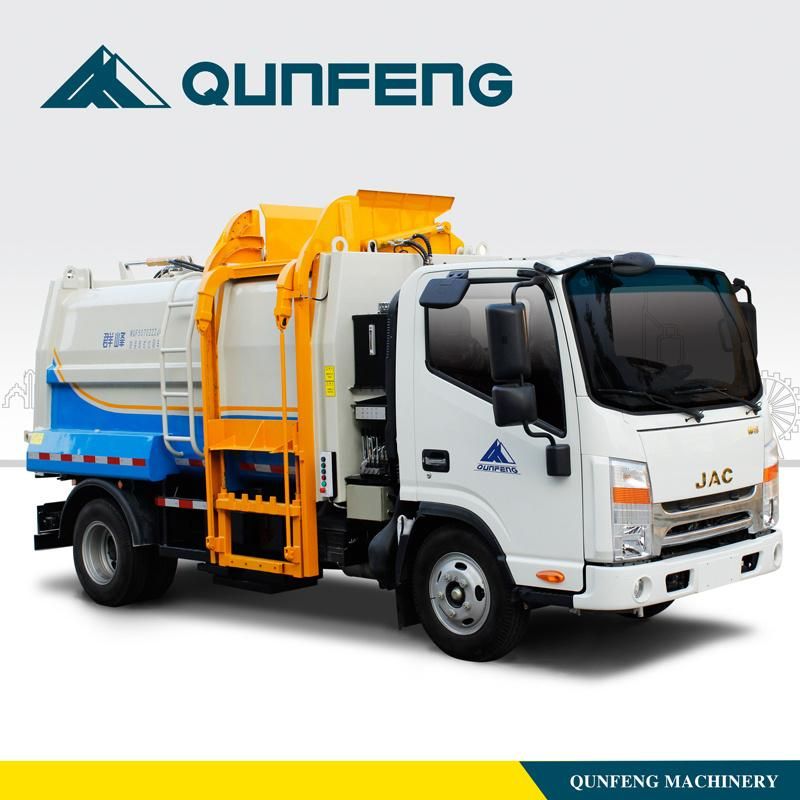

 SideLoading Garbage Compression Truck is a environmental garbage collection and transferring equipment, it is of big volume, high efficiency, no leaking and high automation and can be widely used in garbage collection and transferring of community, factory and street.

Performance And Feature
 Adopt mature and reliable JAC HFC1070P73K1C3ZV chassis, it is of good activity, high flexibility, low running cost and environmental emission.

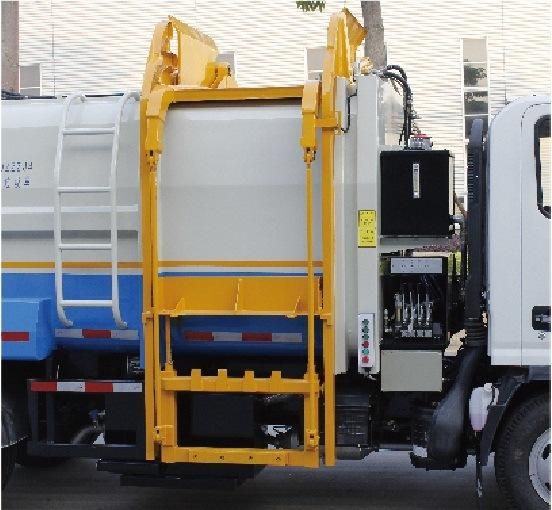

 On the right side of the truck, there is a lifting device which is able to lift 120L and 240L bin and it adopt the motor-electric-hydraulic control which is easy operation and high reliability.
 It has self compression function and it can increase the garbage storage volume, there is sewage tank beneath the garbage tank to accomplish the separation of liquid and solid.

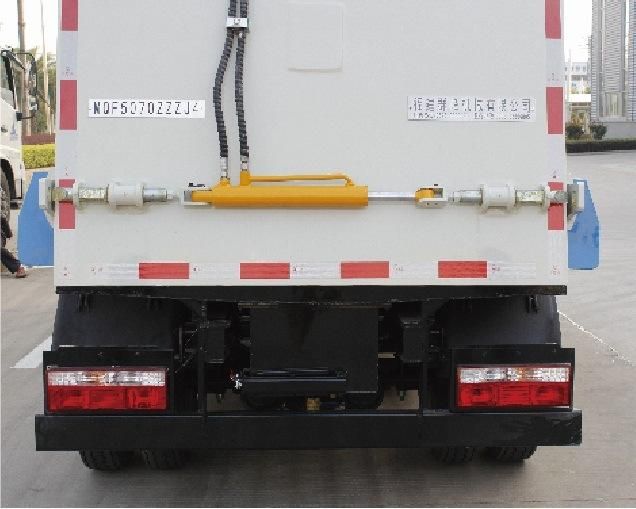

 Back door adopt cavity sealing joint strip , it is of good sealability. Hydraulic system control back door closing and has a high sealability and it can avoid secondary pollution.
 Garbage discharging adopts pushing plate to push the garbage out, it is of high efficiency, clean discharging and no leaking. It can avoid secondary pollution.
 There is a tool box in the right side of the tank to keep the tool and cleaning device to improve using convenience.
 There is a clean water box to make it easy for workers to clean themselves when finished.

Technical Parameters:

Technical Data	MQF5070ZZZJ5
Dimension(L x W x H)(mm)	5620x1935x2700
Chassis Model	JAC HFC1070P73K1C3ZV
Engine Model	HFC4DA1-2C
Motor Power(kw)	88
Wheelbase(mm)	3360
Top speed(km/h)	90
Garbage tank capacity(m³)	6
Rated loading weigh(kg)	2760
Top weight(kg)	7350
Hydraulic System Oil Pressure(MPa)	16
