• Model NO.：MTW1001
• Fuel：Diesel
• Drive Wheel：4X4
• Engine Capacity：4 - 6L
• Condition：New
• Truck Chassis：Dongfeng (or Other Brand )
• Engine：Cummins 170HP
• Water Pump：Wloong,Yixin Pump or Customized
• Transport Package：Bulk Ship or Roro Ship
• Specification：7500x2450x3050 mm
• Trademark：MANTEN
• Origin：China
• HS Code：8705909990
• Production Capacity：20000units Per Year

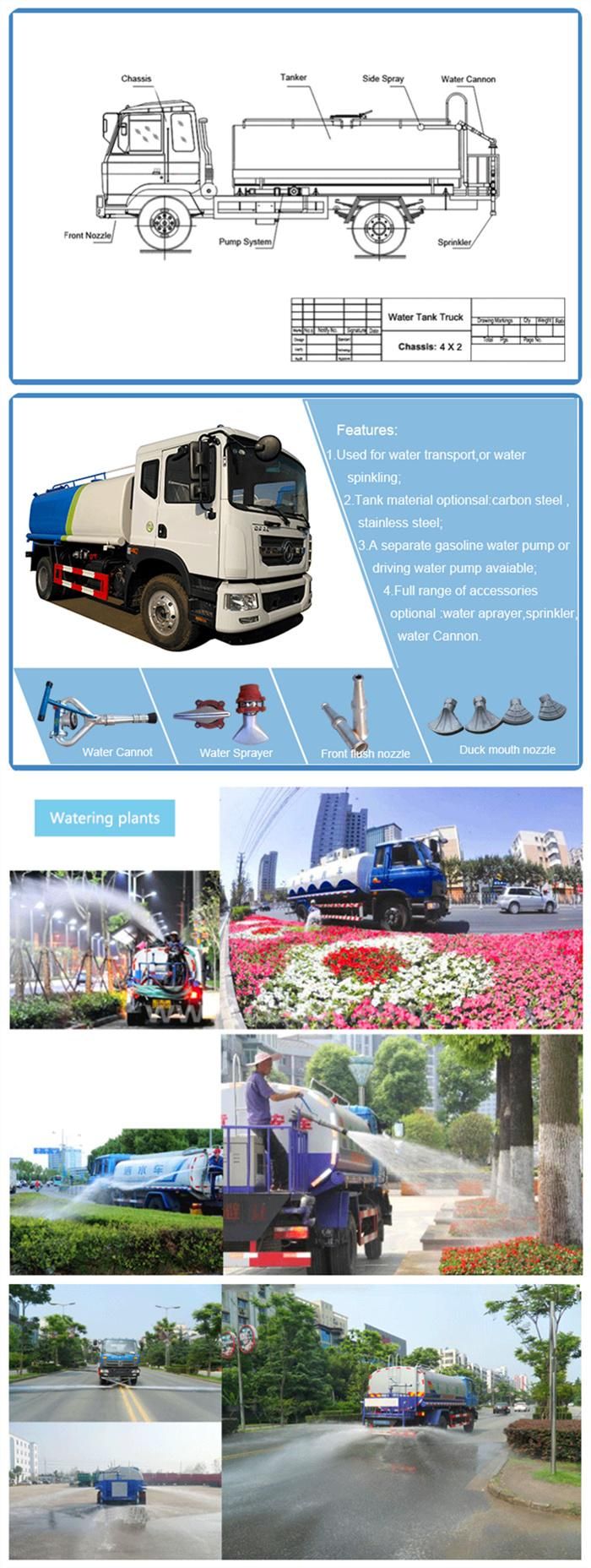

10000L DONGFENG offroad 4x4 Water Tank Sprinkler Truck Manufacturer Hubei Veldlion Machinery Co., ltdChassis Model DONGFENG EQ1128ChassisModelDONGFENG 145, one and half row cabinDriving type4x4, RHD/LHDWheelbase3950 mmDimension7500x2450x3050 mmEngineModelCUMMINS B170 33Power170HPDisplacement5.9LEmission StandardEURO IIITypeDiesel,6-cylinder vertical in-line, water-cooledAxleFront3.6TonsRear9TonsTire9.00-20, 6+1 tyres including one spare tyreTransmissionFAST, 8-Forwards & 1-ReverseWater TankVolume10000L/ 10 m³ShapeEllipseThickness 4mmMaterialCarbon Steel Q235 Anti-corrosionAnti-corrosion layer inside the tankcontrol  systemElectrically hydraulic controlSpraying systemFront Sprinklersa sprinkler on the left and right side respectivelyRear Sprinklersa sprinkler on the left and right side respectivelyWorking Platform an operator standing there to operate the water gun high-pressure water gunshotting range over 28mWater suction tube2 tubes of 3m long, or 1 tube of 6m longWater level gauge1 setSpecial FunctionVertical suction height>7mSprinkler width>14mFlux90m3/hWater intake time<5minWater PumpWLOONG or Yixin
III. Working State:

1. Self-absorption self-discharge function, vertical suction ≤ 7 meters;

2. After the sprint, sprinkler width ≥ 14 meters;

3. Side spray, rear work platform, with green water cannons, 360-degree rotation, range ≥ 28 meters;

4. High-pressure gun water can be adjusted into a columnar, foggy, heavy rain, light rain, drizzle;

5. Equipped with high-power dedicated sprinkler pump, with a fire connector, gravity valve, with self-   priming function and
   pressurized discharge function;

6. Optional fire pump, range ≤ 50 meters.

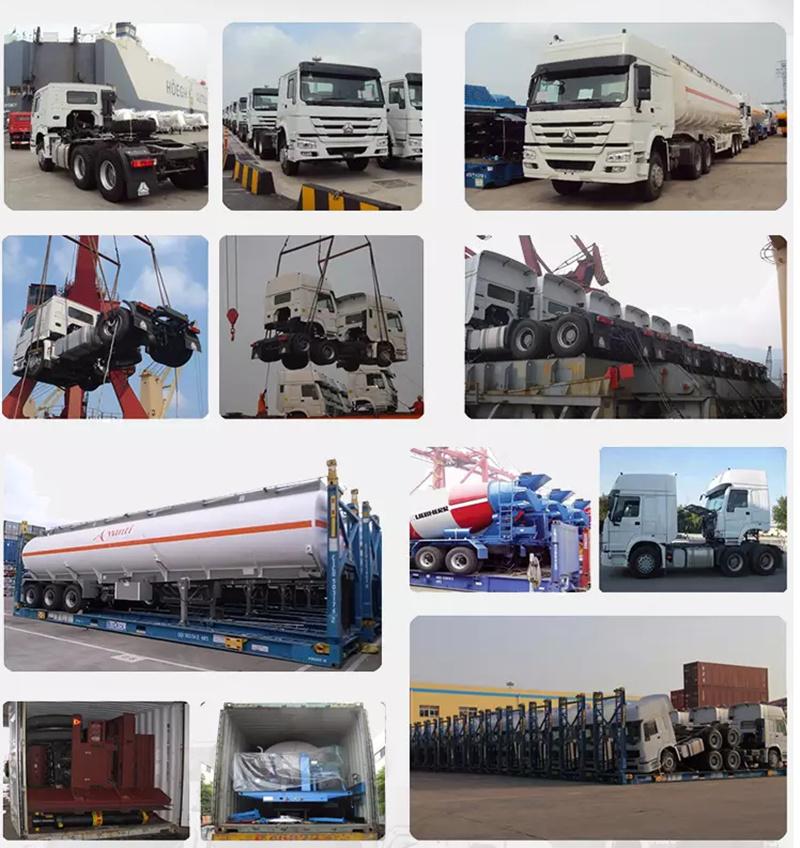

IV. Shipping & Delivery
The water tank truck can be delivery by nude packing,roro ship,bulk ship or container, you can choose the water
tank truck be waxed or not waxed.
