• Model NO.：CLW5089SLC
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, Foton, Jmc, etc.
• Water Tank Volume：3.5cbm
• Garbage Tank Volume：8cbm
• Water Tank Material：Stainless Steel
• Garbage Tank Material：Stainless Steel
• Max. Working Area：70000m2,H
• Working Speed：3-20km,H
• Sweeping Width：3.5m
• Water Tank Thickness：4mm
• Garbage Tank Thickness：4mm
• Color and Logo：Customized
• Warranty：1 Year
• Transport Package：Naked, RO-RO, Bulk, Container
• Specification：7930*2500*3120 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8701909000
• Production Capacity：500units,Mouth

General Technical ParametersOverall Dimension7930*2500*3120 (mm)Gross Vehicle Weight12000(Kg)Curb Weight4800(Kg)Chassis SpecificationChassis BrandDongfeng TianjinDrive model4*2Cabinsingle row, LHD, with air condition.Number of Passengers2EngineModelCummins/180HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power132KW/180HPEmission standardEURO 3Displacement4999(ml)Fuel typeDieselGearbox6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base5000mmFront/Rear Axle Loading2000/3500(Kg)OverhangMechanical Suspension, 11/9+7HTire9.00R20, steel wire tire, 6pc with 1 spare tireSweeping Speed3-20 km/hUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume3.5(cbm)Dust TankMaterialStainless steel 304Volume8(cbm)Auxiliary EngineModelJMCPower57KW/77HPMaximum sweep width3.5mMaximum cleaning capacity70000m³/hStandard Configuration1. Equipped with 2 sweeping brushes on each side;2. Equipped with Sanyo Motor;3. Equipped with HIP-SD-7 electromagnetic valve set;4. Equipped with continuously variable speed automatic clutch;5. Equipped with German Schneider control switch;6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;8. Equipped with hydraulic system(control box lift, rear door open);9. Equipped with rear LED arrow lights;10. User's operation manual 1 set.Optional ConfigurationFront flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

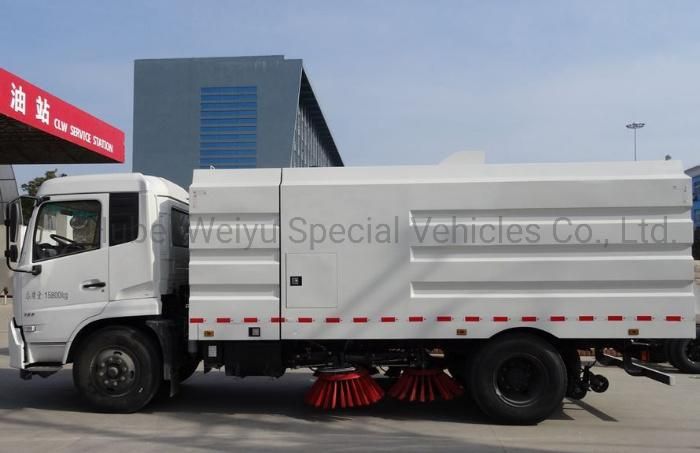

Reference Photos

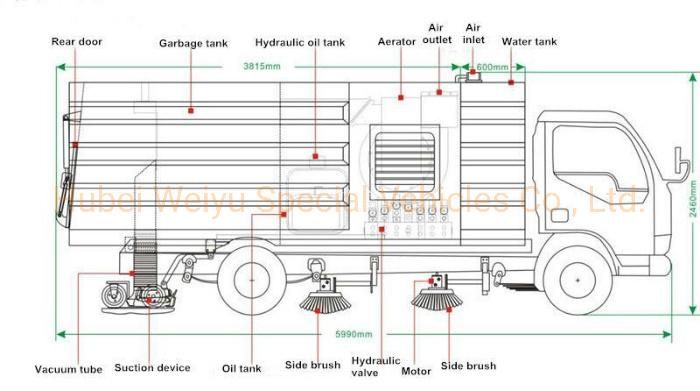

Main Structure

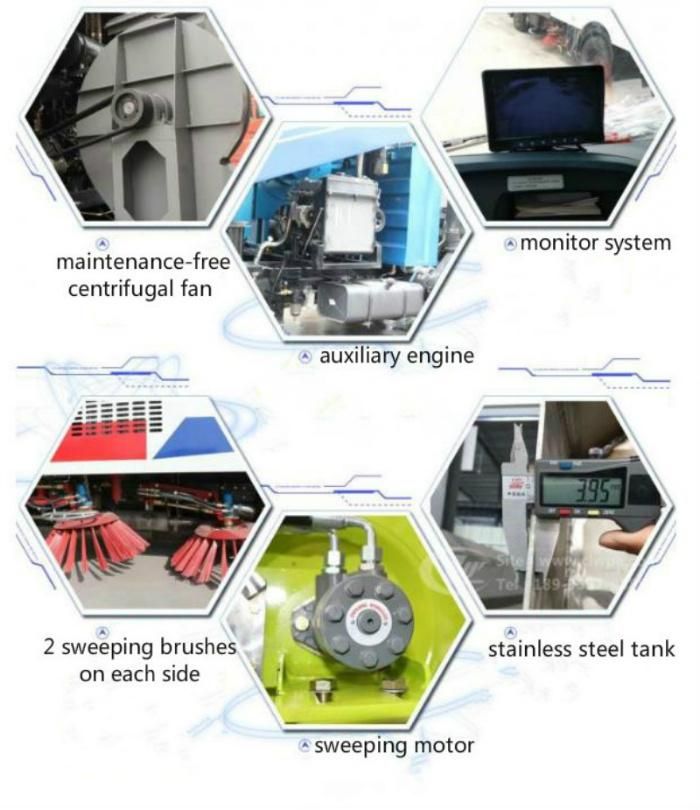

Main Parts

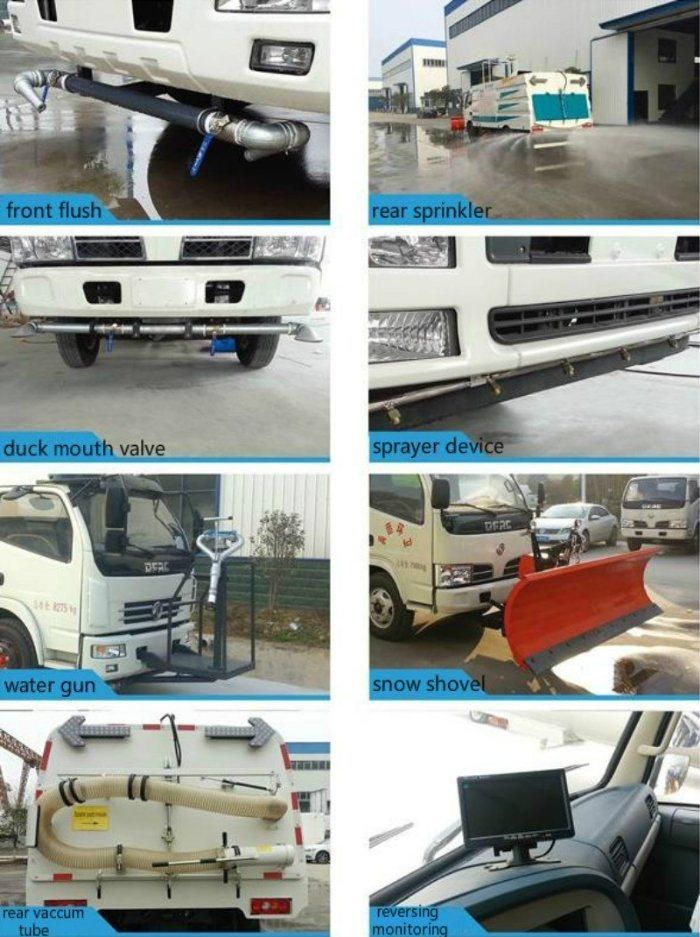

Main Optional Parts

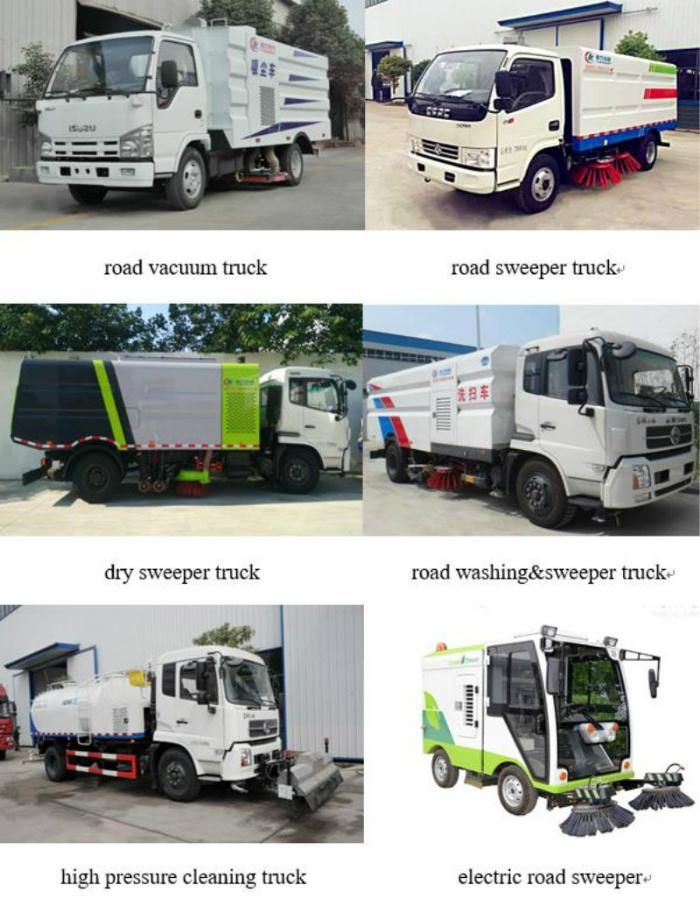

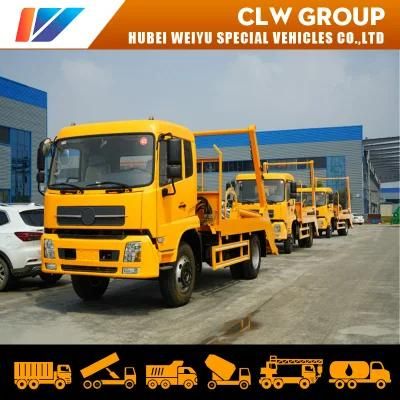

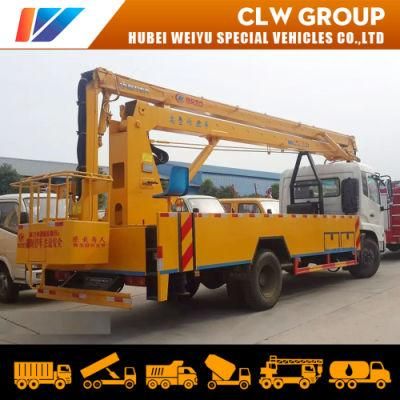

Other Related Road Cleaning Truck
