• Model NO.：CLW5086LJC
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Produce Name：Telescopic Bucket Boom Truck
• Lifting Height：14m, 16m, 18m, 20m, 22m
• Bucket Loading Weight：200kg
• Bucket Size：1000*650*1200mm
• Turning Angle：360 Degree
• Arm Type：Folded or Telescopic
• Max Working Height：20meters
• Max Working Radius：8.0meters
• Working Radius in Max Height：3meters
• Working Height in Max Working Radius：10.1meters
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Max Hook Height：8.1meters
• Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
• Transport Package：Naked Package
• Specification：20meters, 22meters
• Trademark：CLW
• Origin：China
• HS Code：870590990
• Production Capacity：500unit,Month

ChassisChassis brand:Dongfeng TianjinDrive type:Manual, left hand drive,optional right hand driveDrive wheel:4*2Tyre:9.00-20, 6+1piecesControl system:Electrically hydraulic systemTransmission:Six speed levers,                                         6 speed forward with 1 reverseChassis dimension:7120*2462*2710mmBraking system:Air brakingClutch:dry clutch, hydraulic remote controlWheel base:3950mmAxis number:2 piecesCab Passengers:5 passengersEngineEngin:Cummins,EQB160-20Horse power:185HPExhaust:6700CCelectric system:24VEmission standard:Euro 3Max speed:90km/hFuel:Diesel,optional gasoline Main parameters technical specificationsOverall size:9200*2470*3610mmOverall G.W.:9900kgCurb weight:6320kgFact load:1000kgSrpings:8/11+8Approach/departure angle:31/20.Overhang F/R:1250/2050mmAxis load:4500/6995Warrenty:1 yearCertification:CCC, ISO...Tank ParameterMax Working Height22mMax Platform Height20mMax Working Radius8300 mmAngle Of Rotation360 °1. Working platform rating loading=200kg, working platform    rating allowable passengers=22. Working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs.3. Clients can choose hydraulic parts made in China or Italy,to be mentioned.4. Rotating speed 0-2 r/min

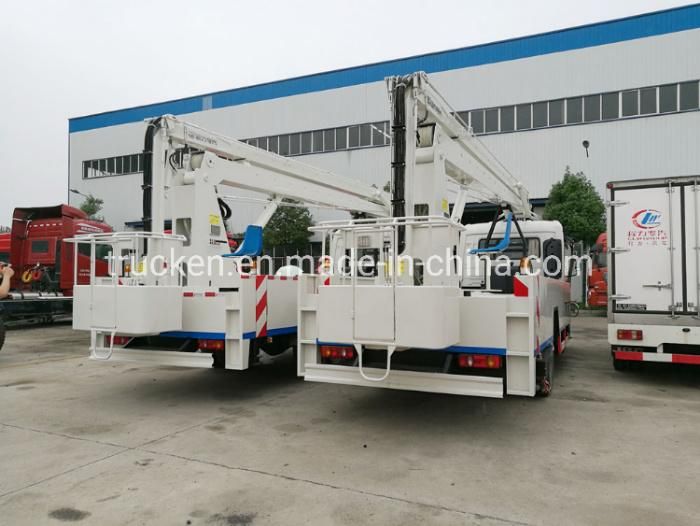

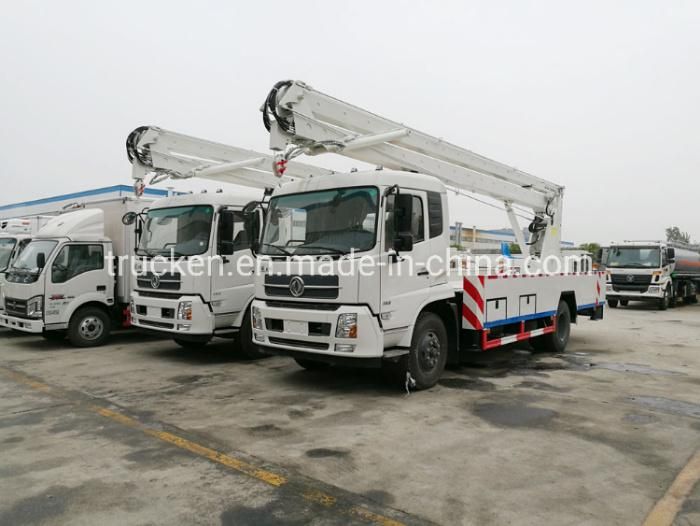

Reference Photos

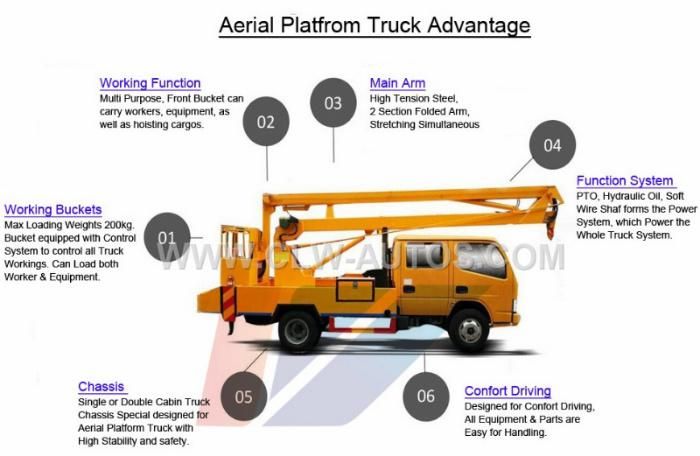

Main Structure and Diagram

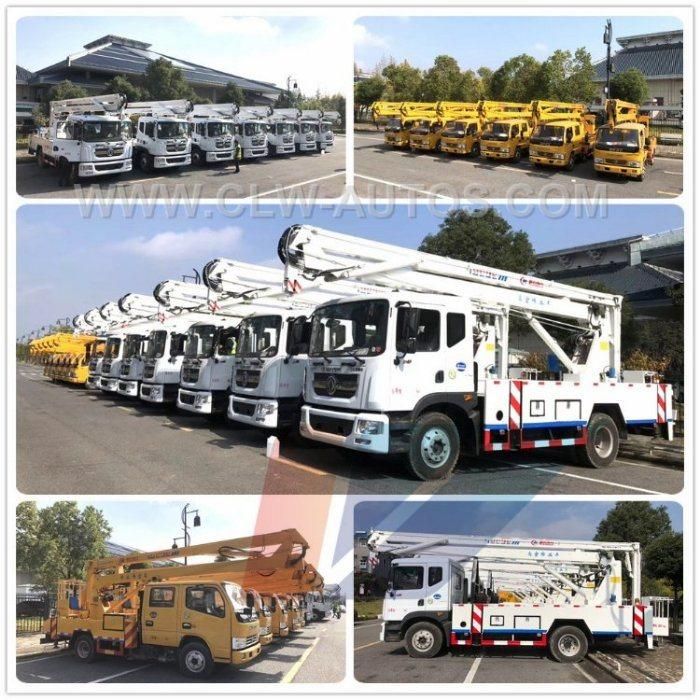

Bulk Orders

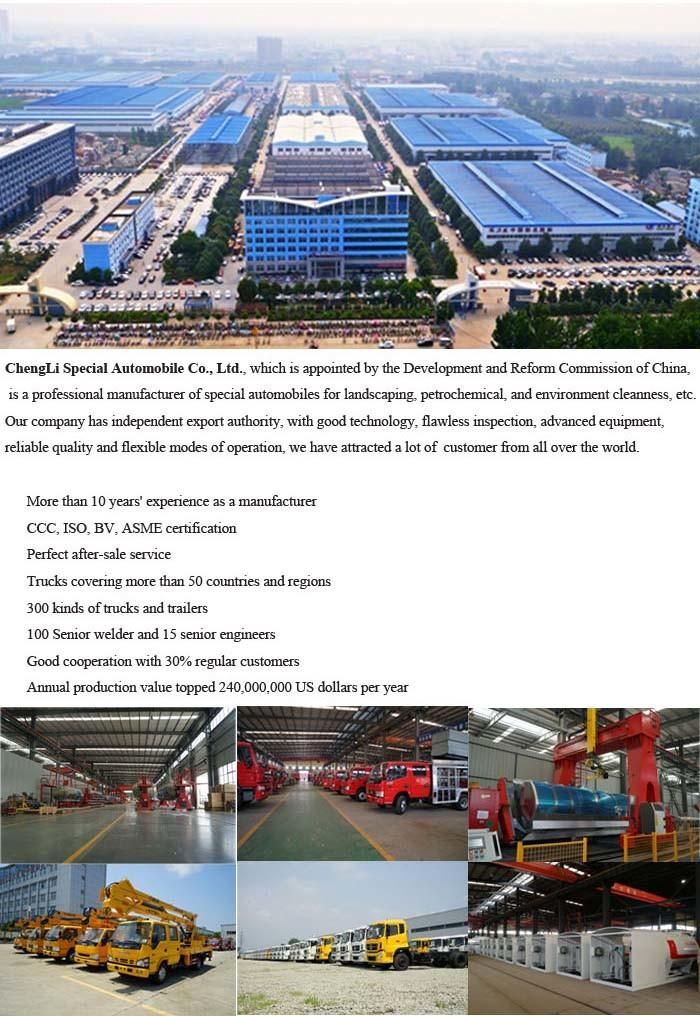

Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
