China Dongfeng 24m Hydraulic Aerial Manlift Work Platform Truck on Sale
Hubei Weiyu Special Vehicles Co., Ltd.- Type：Z
- Certification：ISO9000, CCC, EEC, CE
- Emission Standard：Euro 3
- Hoesrpower：90HP - 190HP
- Payload：5-15ton
- Fuel：Diesel
Base Info
- Model NO.：CLW5086LJC
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Produce Name：High Altitude Operation Truck
- Lifting Height：14m, 16m, 18m, 20m, 22m
- Bucket Loading Weight：200kg
- Bucket Size：1000*650*1200mm
- Turning Angle：360 Degree
- Arm Type：Folded or Telescopic
- Max Working Height：24meters
- Max Working Radius：8meters
- Working Radius in Max Height：3meters
- Working Height in Max Working Radius：10.1meters
- Front Legs：H Shape
- Rear Legs：H Shape
- Hook Weight：800kg
- Max Hook Height：8.1meters
- Optional Brand：Dongfeng, Isuzu, Forland, Sinotruk FAW
- Transport Package：Naked, RO-RO, Bulk, Container
- Specification：20m, 22m, 24meters, 26m
- Trademark：CLW
- Origin：China
- HS Code：870590990
- Production Capacity：500unit,Month
Description
24Meter Aerail Platform TruckOverall dimensions 8450×2050×3050 mm Maximum Height 24 meters Maximum operation radius 8.0 meters Gross vehicle weight 6705 kg Mass in working order 6380 kg Wheel base 4200 mm F/R track base 1015/2280mm Approach/departure angle 24/10° Cabin Dongfeng, Right/Left Hand Driving, with A/C. Engine Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling Displacement/ HP 3900 Liter / 140HP Max speed 90 km/h Tire specification 900R20 Traction system 4x2 Number of axles 2 Equipment 1. Max operation height:18m
(including 1.7meter person height, net height is 16.3meter),
2. Max operation radius≤7.9m,
3. Max working platform height≤16.3m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
(including 1.7meter person height, net height is 16.3meter),
2. Max operation radius≤7.9m,
3. Max working platform height≤16.3m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth

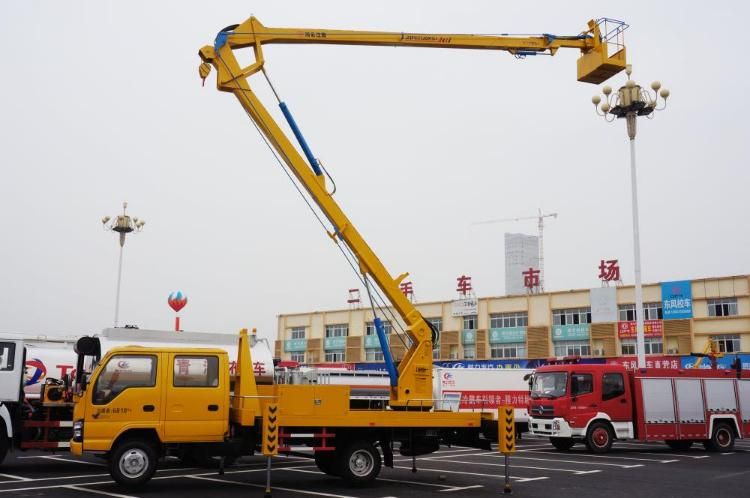

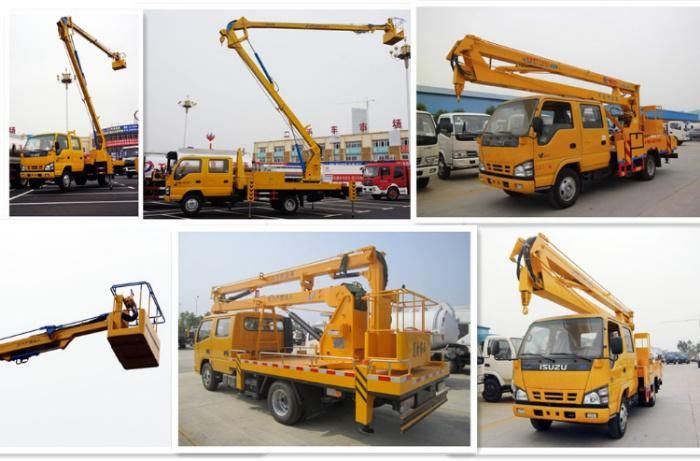

Reference Photos

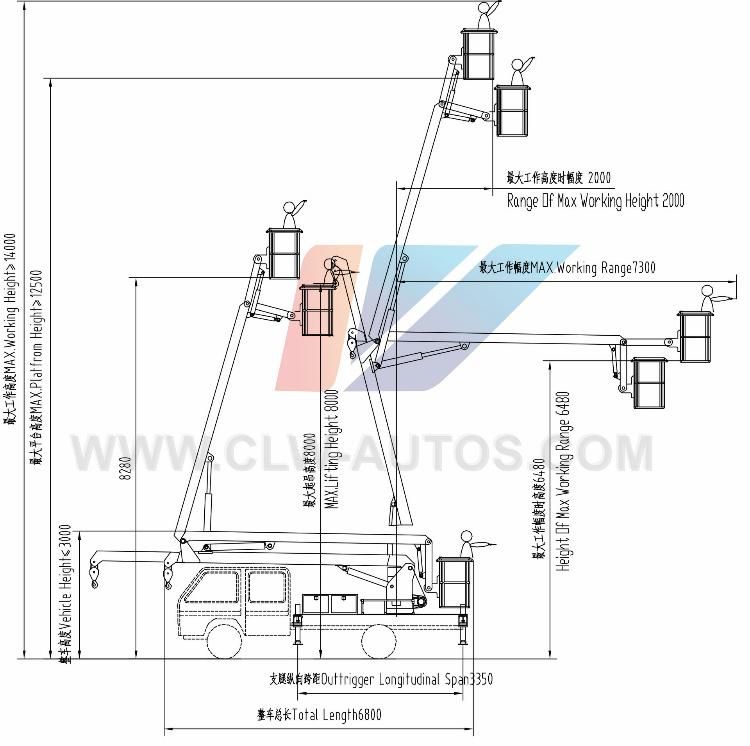

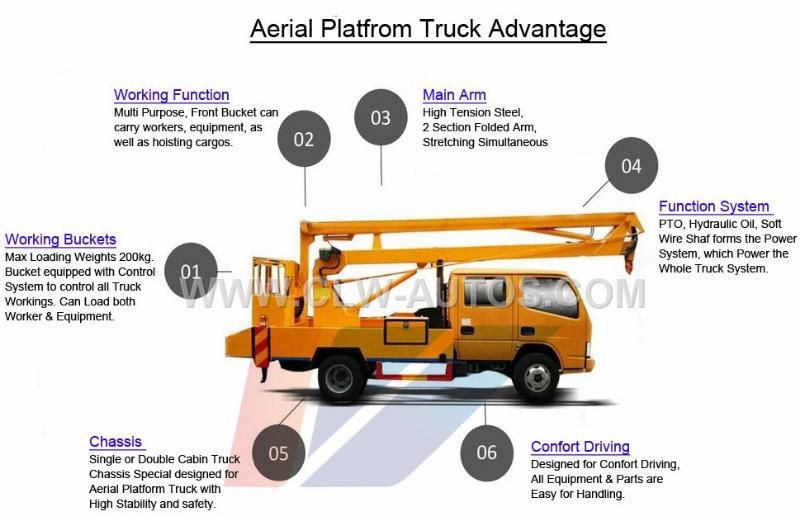

Main Structure and Diagram

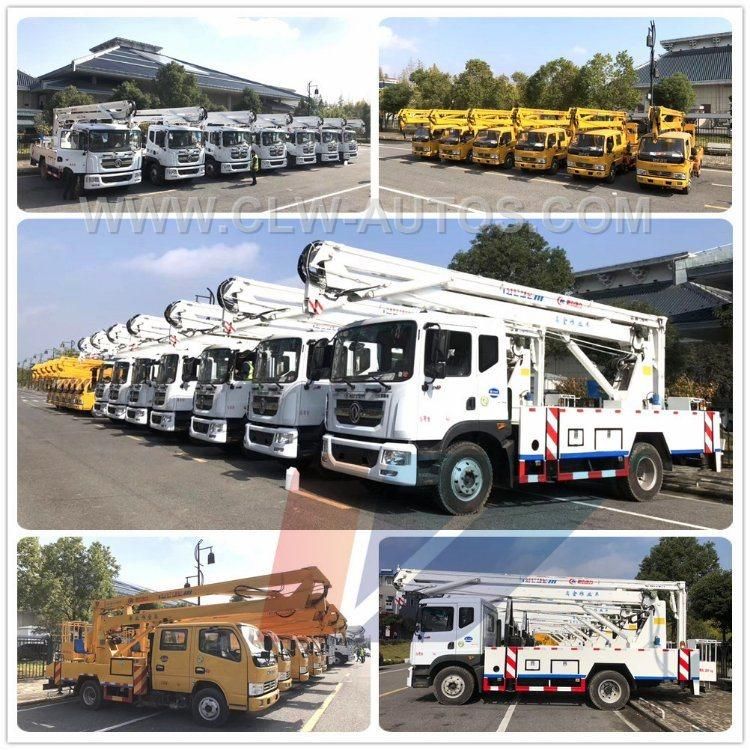

Bulk Orders
