• Models：Large
• Usage：Compression Type
• Condition：New
• Engine：6uz1-Tcg40
• Transmission：Fast 9js150ta-B
• Tire Size：11.00r20, 295,80r22.5
• Horsepower：350HP-380HP,257kw-279kw
• Displacement：9.8 L
• Overall Demension：9850X2500X3500mm
• Wheel Base：4605+1300 mm
• Compactor Body：20m3
• Front/Rear Sewage Capacity (L)：250+150
• Lifting Time of Filler (S)：8-10s
• Volume of Filler(M3)：2.5
• Time of One Filling Cycle(S)：Less Than 25s
• Max Compression Force (Kg)：>35000
• Transport Package：Nude Packing
• Specification：ISO, TS16949, CCC
• Trademark：ISUZU
• Origin：China
• HS Code：8704230000
• Production Capacity：1000PCS,Month

     ISUZU VC46 6x4 10 Wheeler 380HP GARBAGE TRUCK                          ModelQL1250UTCZY  Driving type: 6*4 left hand drivingEngineMake: ISUZUDiesel 4-stroke direct injection diesel engine, electronic controlEngine model:6UZ1-TCG40, Euro IV emission standard 6-cylinder in-line with water cooled, turbo-charging and intercoolerMaximum output: 350HP-380HP/257KW-279KWMaximum torque: 1450 NmDisplacement: 9.8 LTransmissionFAST 9JS150TA-B, 9 forwards and 1 reverse,manualRatio:12.65   8.38   6.22  4.57   3.40  2.46   1.83   1.34  1   13.22 (R) Front AxleISUZU F075, 7.5 Ton loading CapacityRear AxleISUZU RT210,21 Ton loading capacity,speed ratio 5.571ChassisFrame: U-profile parallel ladder frame and reinforced subframe with size 320×90×8 MMFront suspension:12 semi-elliptic leaf springRear suspension:12  semi-elliptic lea springAluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassisSteeringPower steering,  hydraulic steering with power assitanceBrakesService brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheelsABS Wheels & TyresTire: 11 pcs 11.00-20Option:11.00R20, 295/80R22.5Driver's CabISUZU Flat roof cab, with two seats, 1 bed, A/C, electric glass, central lockElectricsOperating voltage: 24 V, negative grounded  Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W  Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse lightDimensions  mmWheel base4605+1300 MMOverall length9850 MMOverall width2500 MMOverall height 3500 MMWeight  kgDead weight14600 KGRated Loading Capacity13900 KGGross vehicle weight(GVW)28500 KGFront axle loading capacity7500  KGRear axle loading capacity21000 KGCompactor Body
 Volume of body(m3)  20Volume of filler(m3)2.5Time of one filling cycle(s) ≤25Lifting time of filler (s)   8-10Time of discharge (s)     ≤40Pressure of fluid system (Mpa)    20Front/rear sewage capacity (L) 250+150Max compression force (kg) >35000

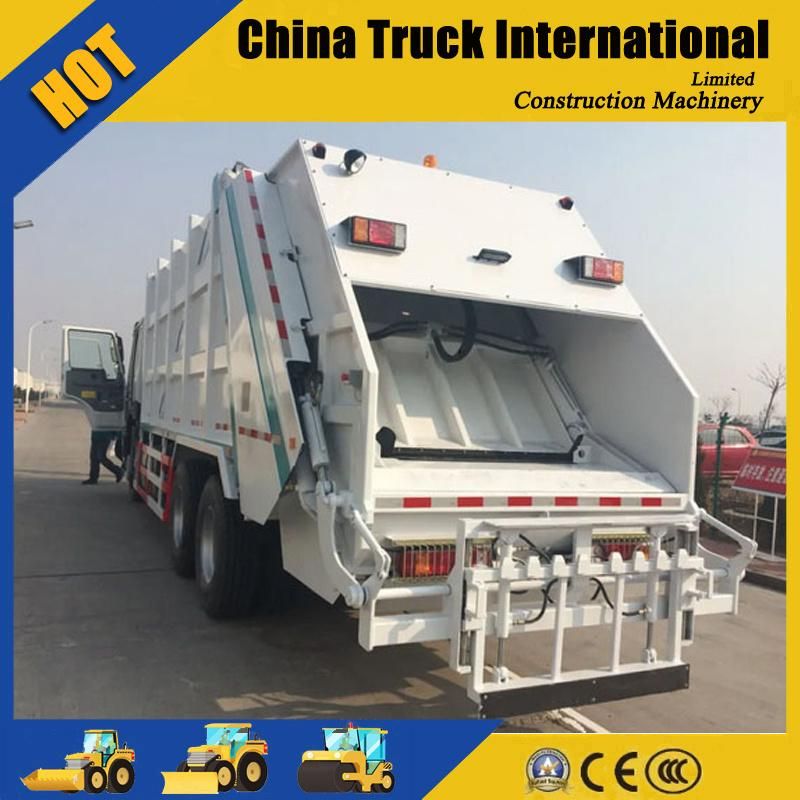

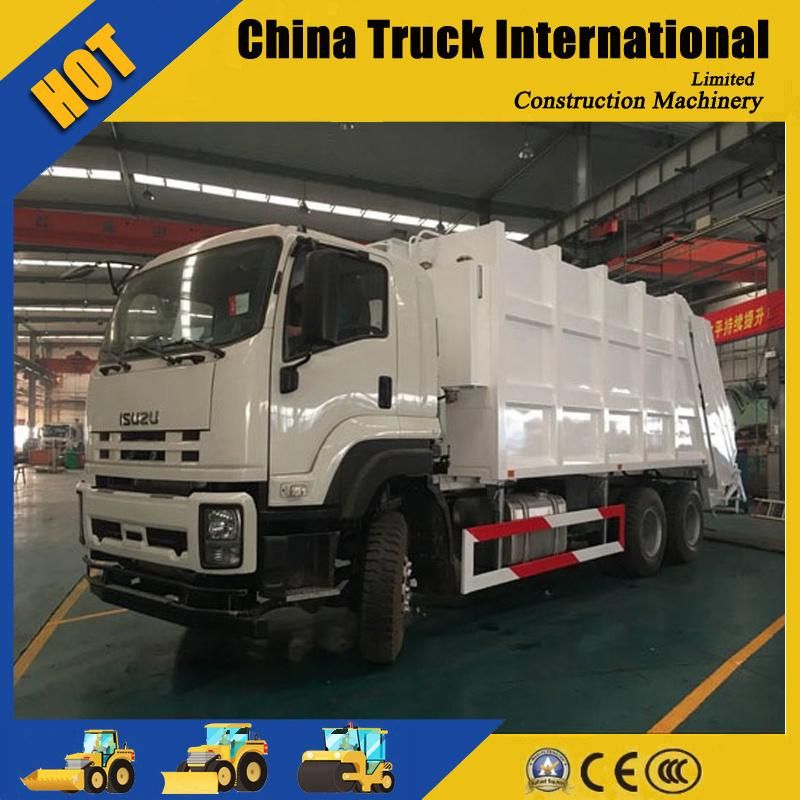

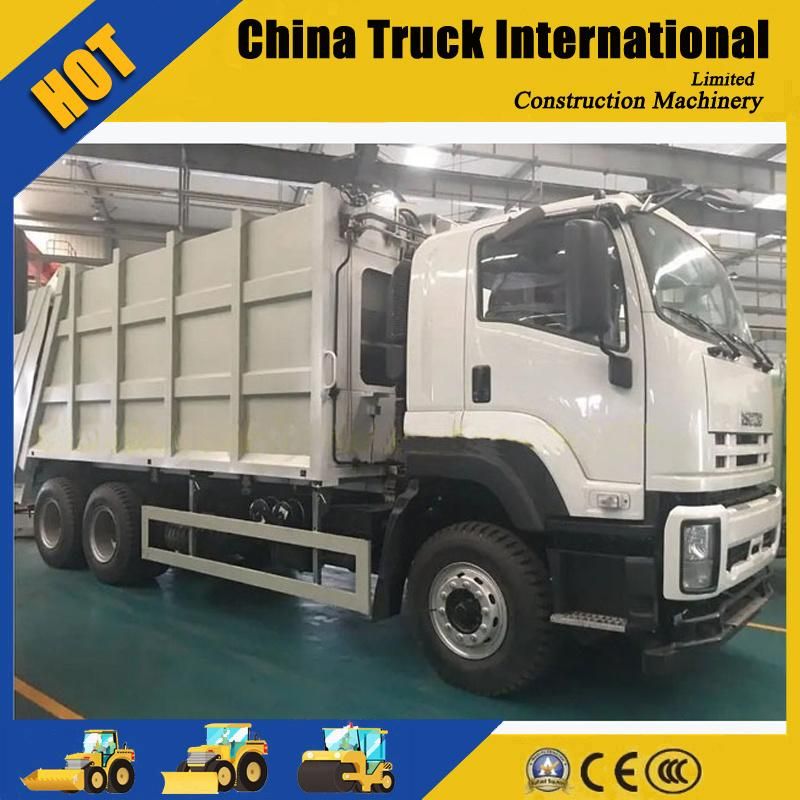

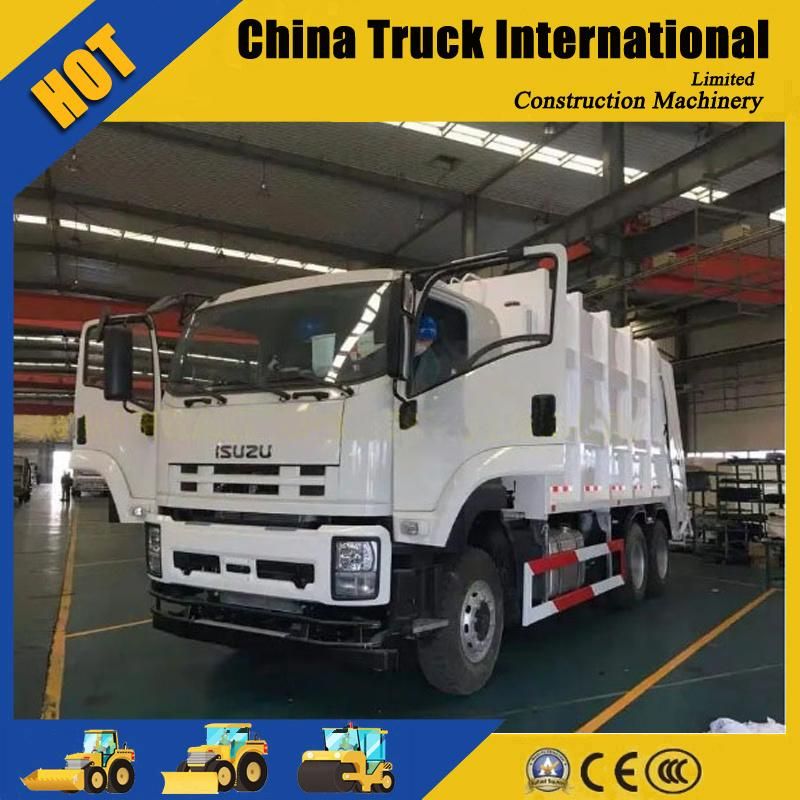

2.More Photos of ISUZU Garbage Compactor Truck:







3.Packing:
 By Bulk
 By Ro-Ro
 By Frame
 Container

4.Our Main Products:
Our products include full series Truck&Trailers,such as:
*Dump Truck
*Tractor Truck
*Container chassis semi-trailer series
*Cargo semi-trailer series
*Tipper semi-trailer series
*Low bed trailer series
*Liquid tanker series
*Power tank transport series
*Concrete mixer series
*LPG TANKS
.etc,and spare parts

5.Our Advantages:
(1)Products Quality Certification SGS CCC ISO
(2)Perfect after-sale service
(3)More than 20 years' experience as a manufacturer
(4)Customized products available with us
(5)Export to more than 90 countries and regions

6.FAQ
Q1: What about your products quality ?
   A: Quality is our culture! "Our factory has advanced production technology and management team!
   We always attach great importance to quality controlling from the very beginning!
Q 2: Can I have samples of this type of flatbed semi trailer to test the quality ?
   A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 3: What others we can do ?
   A: According to your order, we will provide the best price and quality trucks and trailers.
   And we are well capable in offering overseas after-sales service. Besides, we also provide rational
   packing and shipping program,let shipment save money and security.
Q 4: How to guarantee customers get the goods smoothly after they pay ?
   A: Don't worry, dear. We have been in this field for more than 8 years, we will send you production photos once in a while, and we will help you to book the latest ship.
Q 5: What's the delivery time ?
   A: The delivery time is within 30 working days after receiving your advance payment.
Q 6: Can you supply some quick-wear truck or semi trailer parts ?
   A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc.
 Q 7:  Do you have any used truck and semi trailer for sale ?
   A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
   show you our stock if you need.
Q 8:  What logistics ways we can work for shipment?
   A: We can ship construction machinery by various transportation tools.
   (1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
   Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
   (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.,we can ship construction machinery by road or railway.
   (3) For light spare parts in urgent demand, we can ship it by international courier service, such as
   DHL, TNT, UPS, or Fedex.

7.Company Information:
  China Truck International Limited was founded in 2011,located in Yangzhou,China.We focus on trucks,construction machinery and all the parts exporting.Our products are exported to more than 100 countries and regions,such us South America,Middle East,Europe and Asia.Our annual sales amount is about 20,000,000 dollars.
