• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＞8L
• Condition：New
• Chassis Brand：Dongfeng, Foton, HOWO, Shacman, Isuzu
• Material：Carbon Steel
• Tank Thickness：5 mm
• Wheel Base：3308 mm
• Horsepower：Chaochai 102HP
• Loading Capacity：5000 Liters
• Sprinkler Range：30m
• Control System：Automatic , Manual
• Generator Power：6.5kw
• Rotation Angle：360 Degree
• User Manual：Yes
• Usage：Dust Fight, Drug Spraying, City Disinfection
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Bulk Ship, RO-RO
• Specification：5000liters, 5cbm, 5M3, 5tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

EngineEngine modelChaochai 102HPNo of cylinerstraight-4 cylinderDisplacement(ml)3707mlRated power Rev((Kw/rpm)75kwEmission standard EURO 2(China national 2)Drive  Line Transmission5 forwards,1 reverse gear,manual operationSteeringPower steeringBrakeAir brakeCab CabinSingle cab, with 3 passengers allowedTire specification Tire7.00-16standard tire,6 tires+1 spare tireWater specification Water tanker materialOf high quality carbon steel (Q235). Introduction 1. Suction≥7m  Sprinkler width≥14m   Range≥28m2. with front spout, back spill and side spout function3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.ManholeMan way access hole on top of tank;1 units DN500mm manholeHorse reelsTwo hose reels at each side of the truckWater pump Water pump model: CLW30QZF-60/90N (N/S)Water pump flow rate(L/m): 60m3/hHead of delivery(m): 90m Self-priming function(min/4m):1.5Efficiency(%):95%Related rotate speed(r/min)1180matched power(kw):22

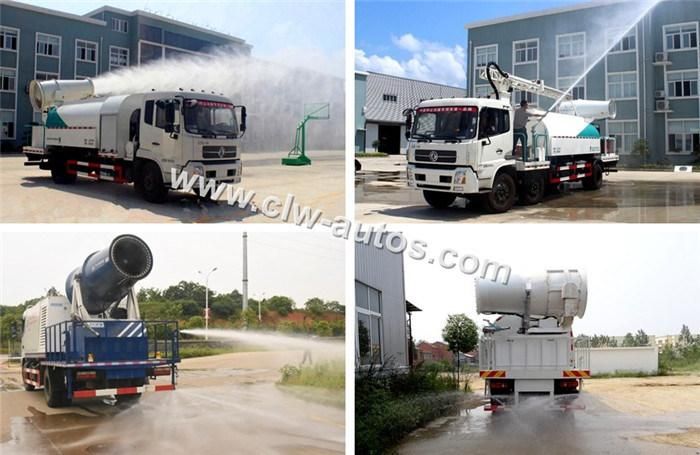

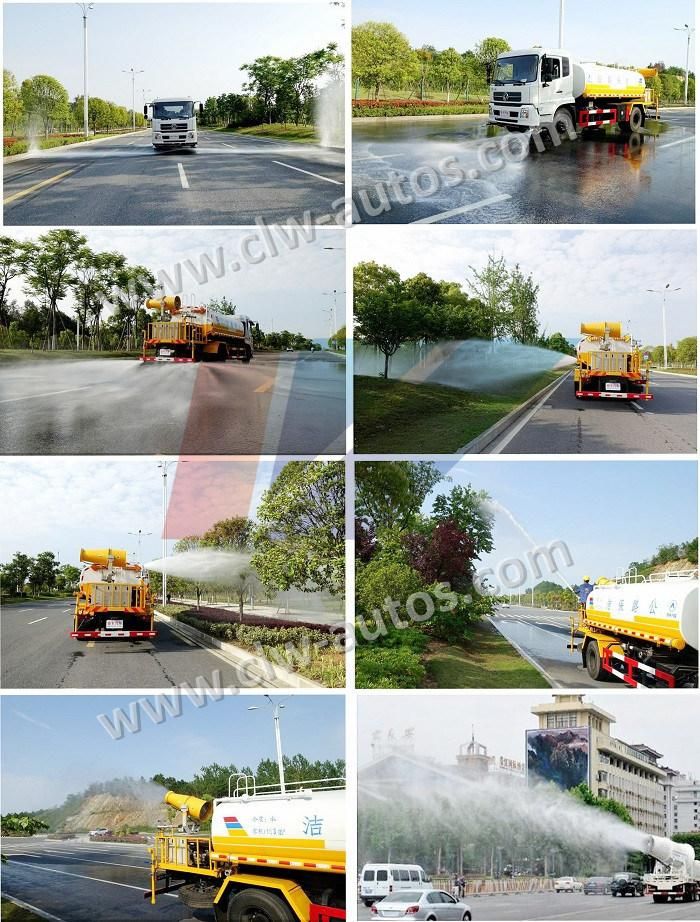

Working Show

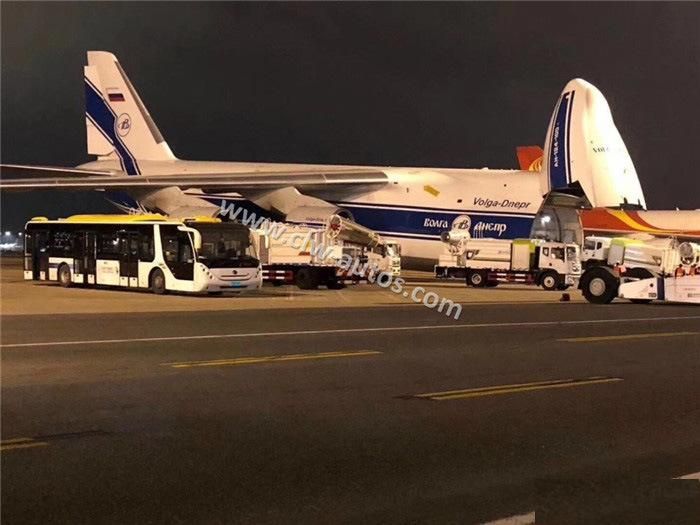

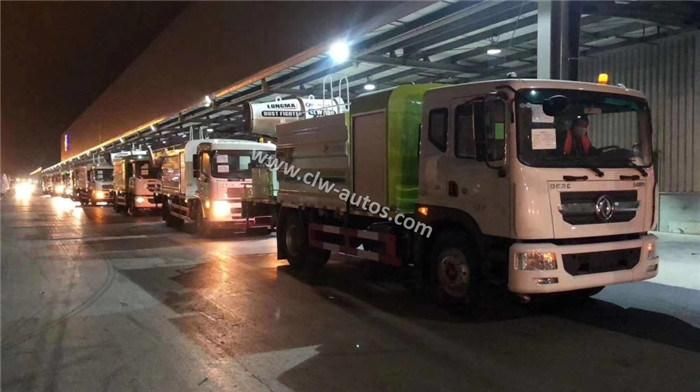

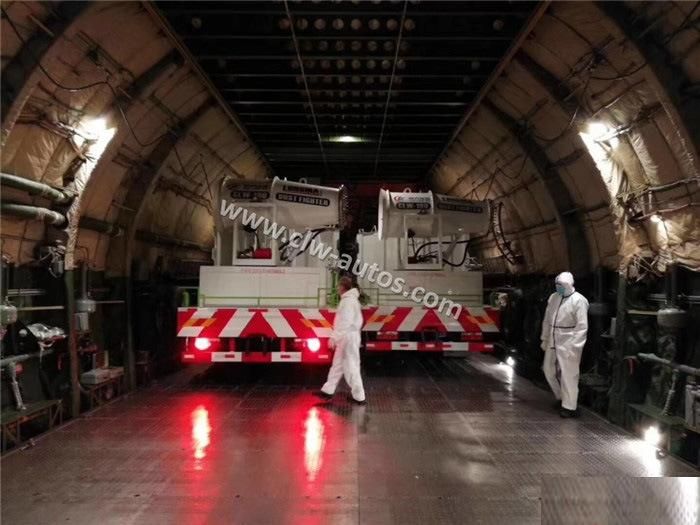

45 Units City Disinfection Truck shipping To UAE









Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting
