5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Recycling
  • Certification：ISO9000, CCC, CE
  • Volume：6001-10000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：5ton

Base Info

  • Model NO.：CLW5476GSC
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Dongfeng
  • Models：Medium
  • Usage：Swing Arm Type
  • Condition：New
  • Engine：190HP Cum Mins
  • Axle：5ton Front, 10ton Rear
  • Gearbox：8 Forward & 1 Reverse
  • Brake System：Air Brake
  • Tire：10.00-20, 10.00r20
  • Container Box：8000liter
  • Material：4mm Bottom, 3mm Side
  • Painting：Anti Corrosion Paint
  • Hydraulic System：Oil Tank & Cylinder
  • Swing Arm：2 Unit Steel
  • Valve：Multi-Valves
  • Skip Loader：5cbm, 6cbm, 8cbm
  • Landing Leg：2 Unit Landing Leg
  • Hopper Shape：Square, Triangular, etc
  • Hopper Connection：2 Strong Chain
  • Transport Package：Naked Pack with Wax
  • Specification：5Ton ~ 7Ton
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension7370X2470X3330 (mm)Gross Vehicle Weight12490(Kg)Curb Weight6295(Kg)Chassis SpecificationChassis BrandDongfeng145Drive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers3EngineModelB170-33/170HP, 4-stroke direct injection , 6-cylinder in-line, turbocharged intercooled, withABS.Power125KW/170HPEmission standardEURO 3Displacement5900(ml)Fuel typeDieselGearboxFast 8JS85E, 6Forwards & 2Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3950mmFront/Rear Axle Loading4990/7500(Kg)Approach/Departure Angle30/21(°)OverhangMechanical Suspension, 9/11+8Tire9.00-20, 6pc with 1 spare tireMax Driving Speed90(km/h)Upperstructure SpecificationGarbage HopperDimension3700×1850×1400mmStandard ConfigurationWith one garbage bin, with hydraulic rear outriggerVolumeGround type, 8CBMLoading Capacity6TonThickness5mm, Carbon Steel Q235BDump typeHydraulic cylinder lifting and self-loadingDump angle≥45°Hydraulic system pressure≤16MpaProtective MaterialQ235A Carbon SteelControlling WayThree-way hydraulic control valveOther Configuration
  1. Electronically controlled valve, trash bin type, trash bin quantity, etc.

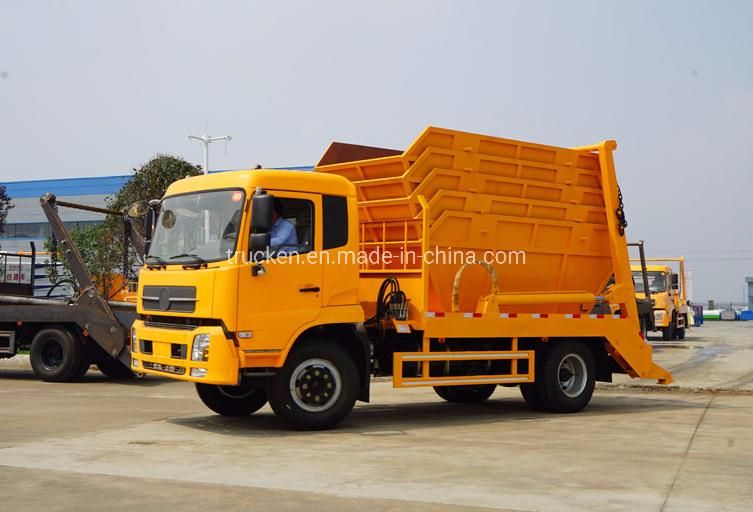

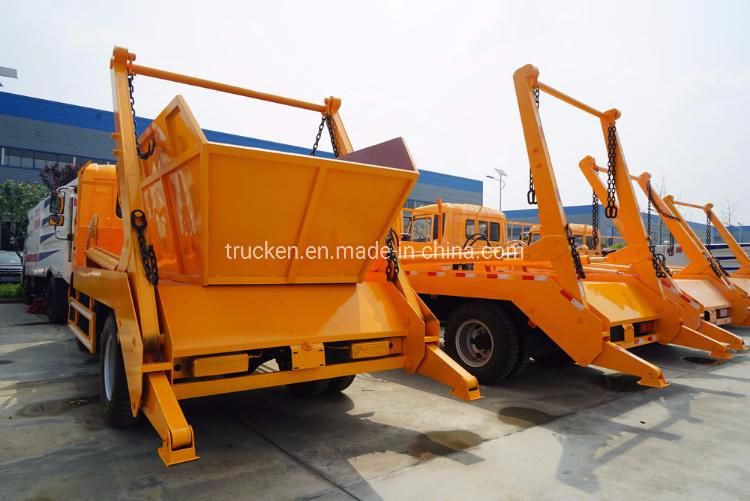

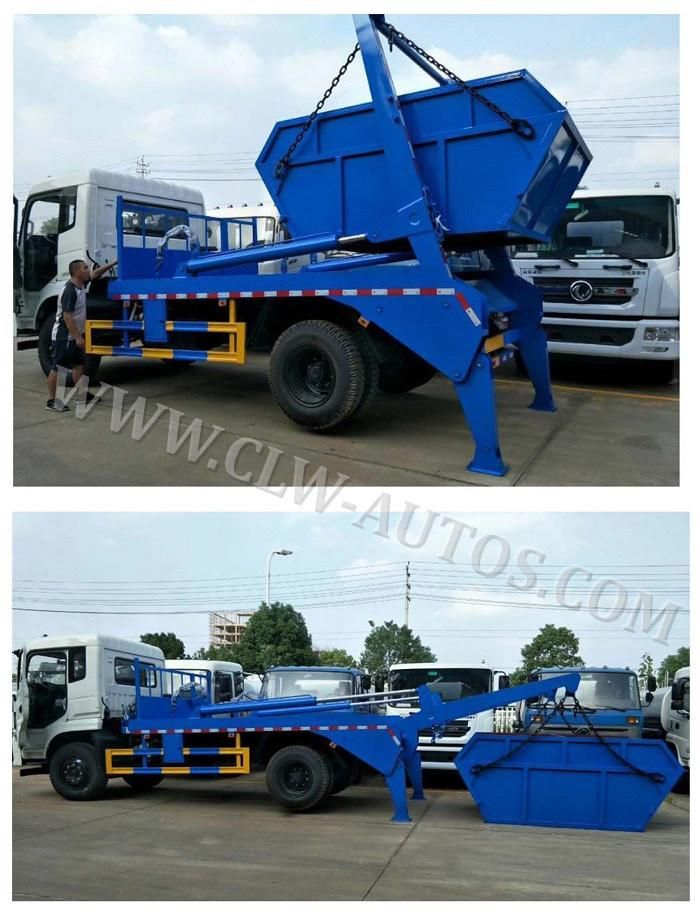

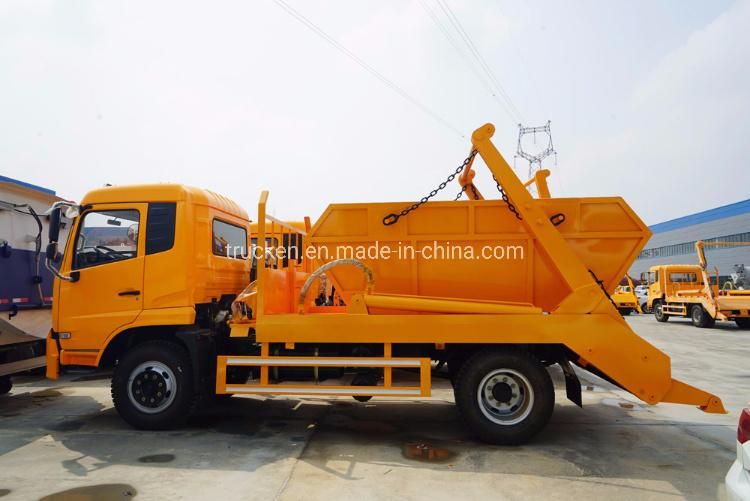

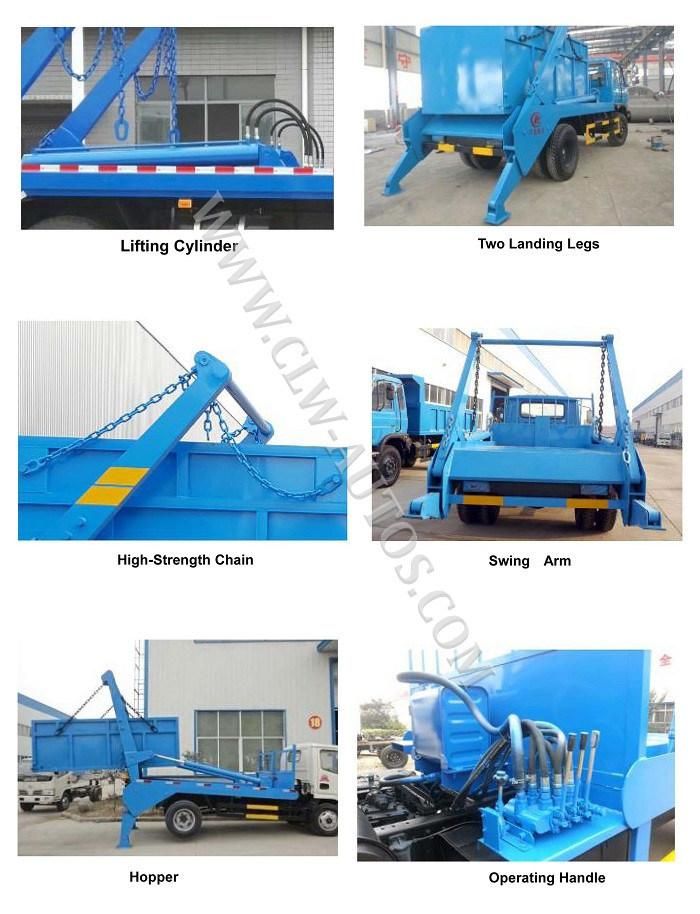

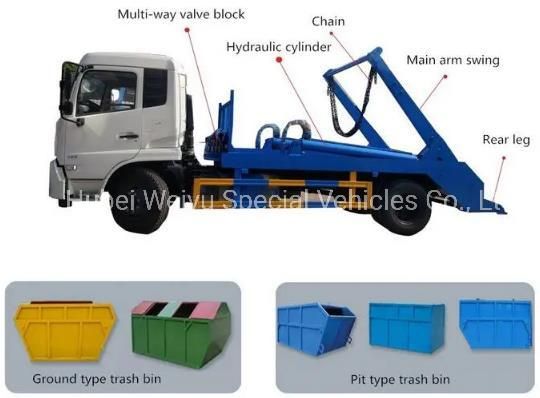

    Product Show

    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck



    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck

    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck


    Company Introduction
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck

    Certificates
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck

    Bulk Delivery
    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck


    Regular Overseas Exhibition and After Sales Service

    5mt 6mt Roll-off Waste Collector Container 6cbm 8cbm Skip Loader Swing Arm Roll off Garbage Truck


    Please Contact Eric in Below Ways:
