Refuse Collection Transport Hook Lift Dongfeng 3cbm 5cbm Hooklift Garbage Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Type：Compactor
- Certification：ISO9000, CCC, TS16949, EEC, CE
- Volume：3001-6000L
- Emission Standard：Euro 2
- Transmission Type：Manual
- Payload：3ton ~ 5ton
Base Info
- Model NO.：CLW5476GCS
- Fuel：Diesel
- Drive Wheel：4×2
- Brand：Dongfeng
- Models：Small
- Usage：Arm Type
- Condition：New
- Purpose：Garbage Collection & Transport
- Container：Steel Material
- Capacity Options：3cbm, 4cbm, 5cbm, etc
- Discharging：Self Discharging
- Lifting Device：Hydraulic Lifting
- Control：Electrical Key Control
- Upper Door：2PCS, 4cps or 6PCS
- Rear Door：1PC for Discharging
- Container Material：Q235B, 4mm Carbon Steel
- Container Legs：2 Wheels in Rear End
- Hydraulic Cylinder：Chinese Brand Good Quality
- Truck Engine：Chaochai or Yunnei
- Engine：90HP
- Tire：6.50r16, 6.50-16
- Cabin：LHD , Rhd
- Transport Package：Naked Pack
- Specification：5CBM
- Trademark：CLW ,WEIYU
- Origin：Suizhou
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Main specification
Product model and name
Hooklift garbage truck
Gross weight(Kg)
4155
Drive type
4X2,LHD,RHD
Curb weight(Kg)
2525
Overall dimension(mm)
4550X1690X2080
Approach/departure angle(°)
18/20
Cab seats
2
Axle No.
2
Front/rear hang(mm)
1100/850
Axle load(Kg)
1580/2575
Wheelbase(mm)
2600
Max speed(Km/h)
95
Chassis specification
Chassis model
DFL5784
Manufacturer
Dongfeng
Brand name
Dongfeng
Dimension(mm)
4820X1690×2080
Tyre specification
6.00-15
Tire No.
6+1(One spare tire)
Steel spring number
7/5+3
Front track base(mm)
1345
Fuel type
Diesel
Rear track base(mm)
1240
Emission standard
Euro 3
Transmission
5 forward gear
Cab
Single row,2 person allowed
Engine model
Engine manufacturer
Displacement(ml)
Power(Kw)
4A1-68C
Chaoyang Engine Co.,Ltd
1809
50(68HP)
Tank body
Tank capacity(m³)
4
Bin material
QB235 Carbon steel
Discharge Method
Rear dump
Operation control system
Manual + electric
Main feature
1,Detachable Container Garbage Truck also called pull arm garbage truck ;
2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab;
3,The truck compartment using fully enclosed design, there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly;

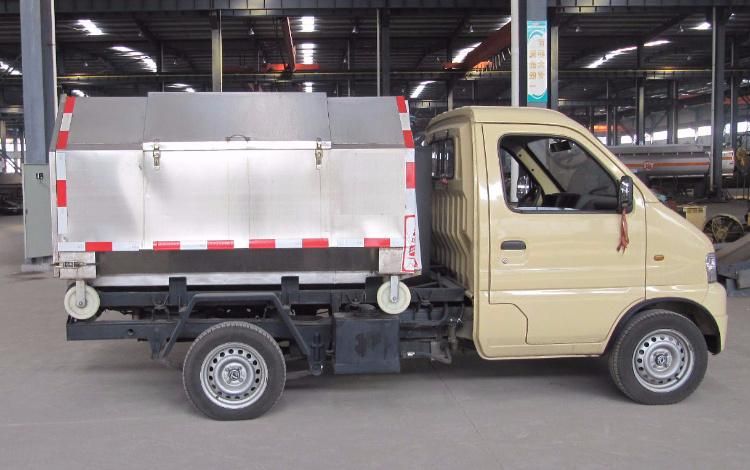

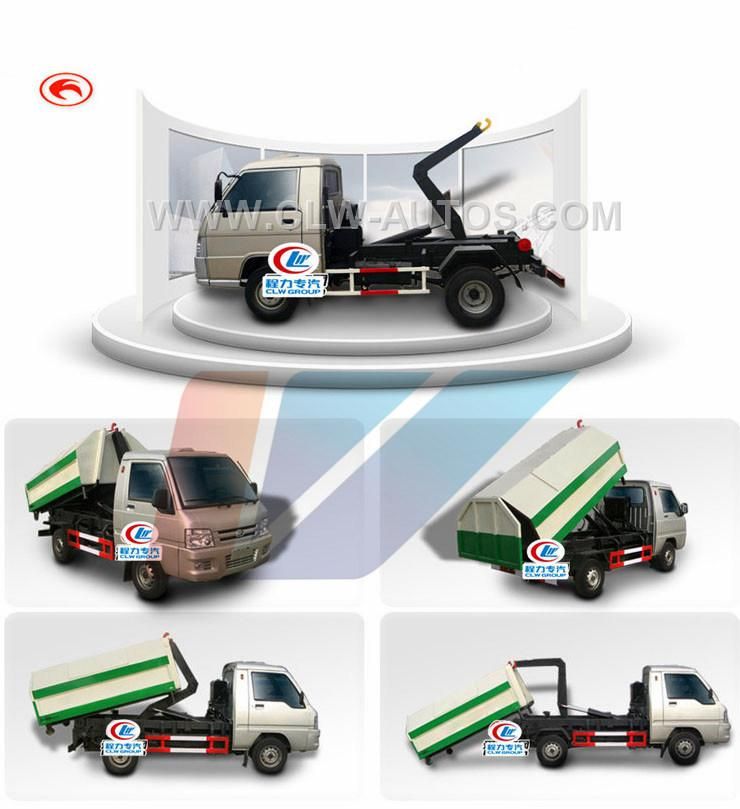

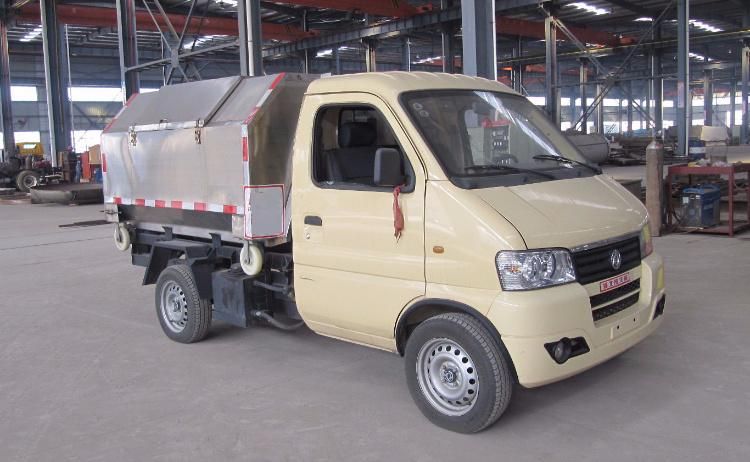

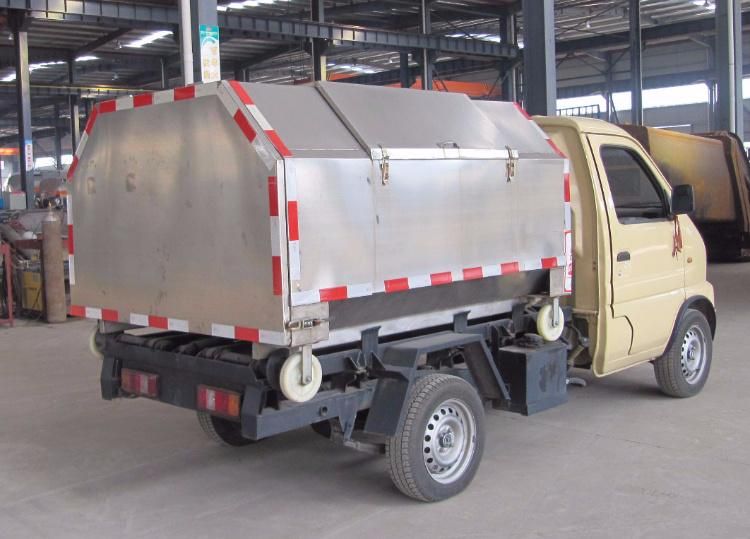

Product Photos:
Bulk delivery
Regular Overseas exhibition and after sales service
