• Model NO.：CLW5476CCS
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Arm Type
• Condition：New
• Purpose：Garbage Collection & Transport
• Container：Steel Material
• Capacity Options：4cbm, 5cbm, 6cbm,etc
• Discharging：Self Discharging
• Lifting Device：Hydraulic Lifting
• Control：Electrical Key Control
• Upper Door：2PCS, 4cps or 6PCS
• Rear Door：1PC for Discharging
• Container Material：Q235B, 4mm Carbon Steel
• Container Legs：2 Wheels in Rear End
• Hydraulic Cylinder：Chinese Brand Good Quality
• Truck Engine：Chaochai or Yunnei
• Engine：90HP
• Tire：6.50r16, 6.50-16
• Cabin：LHD , Rhd
• Transport Package：Naked Pack
• Specification：5CBM
• Trademark：CLW ,WEIYU
• Origin：Suizhou
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Main specification

Product model and name

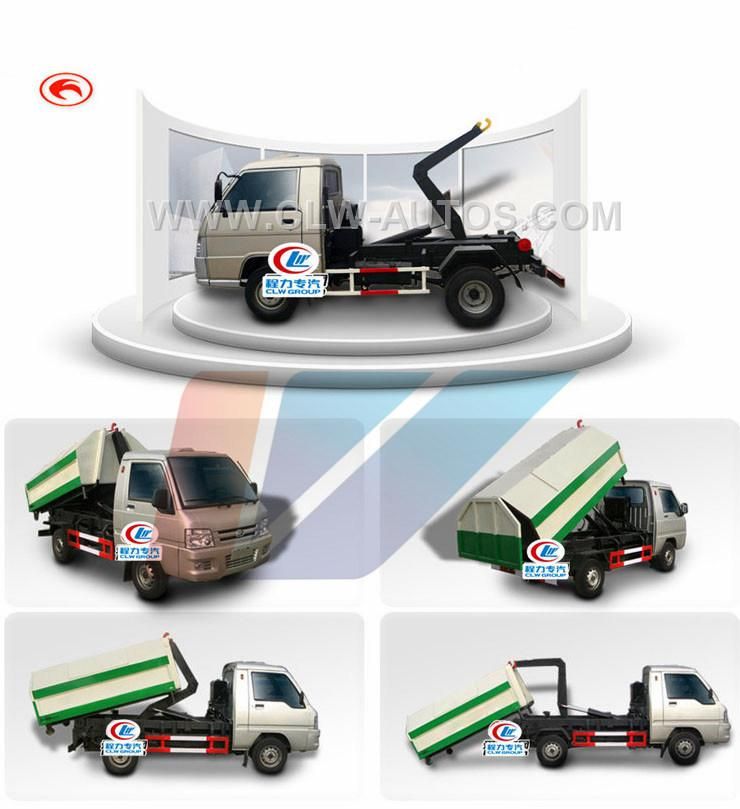

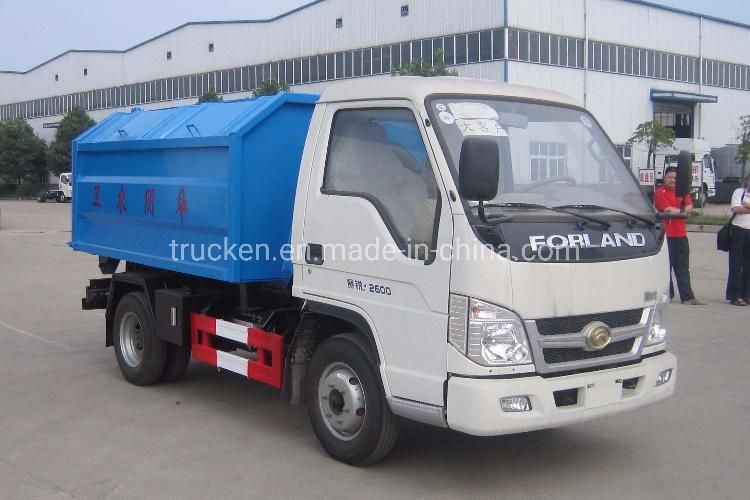

SZD5042ZXXB4X hooklift garbage truck

Gross weight(Kg)

4155

Drive type

4X2,LHD,RHD

Curb weight(Kg)

2525

Overall dimension(mm)

4550X1690X2080

Approach/departure angle(°)

18/20

Cab seats

2

Axle No.

2

Front/rear hang(mm)

1100/850

Axle load(Kg)

1580/2575

Wheelbase(mm)

2600

Max speed(Km/h)

95

Chassis specification

Chassis model

BJ1042

Manufacturer

Foton Motor Co., Ltd

Brand name

Foton

Dimension(mm)

4820X1690×2080

Tyre specification

6.00-15

Tire No.

6+1(One spare tire)

Steel spring number

7/5+3

Front track base(mm)

1345

Fuel type

Diesel

Rear track base(mm)

1240

Emission standard

Euro 3

Transmission

5 forward gear

Cab

Single row,2 person allowed

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

4A1-68C

Anhui Quanchai Engine Co.,Ltd

1809

50(68HP)

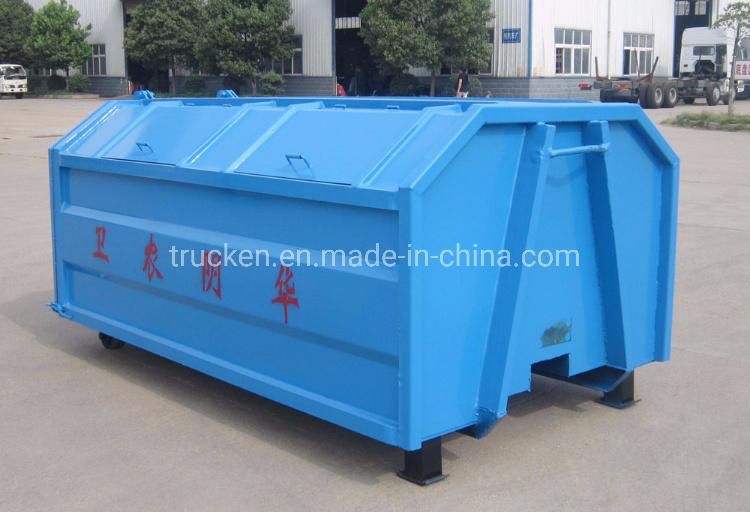

Tank body

4

Bin material

QB235 Carbon steel

Discharge Method

Rear dump

Operation control system

Manual + electric

Main feature

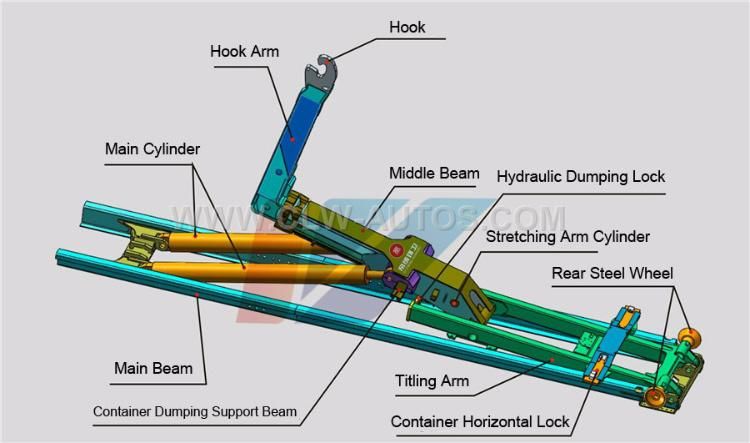

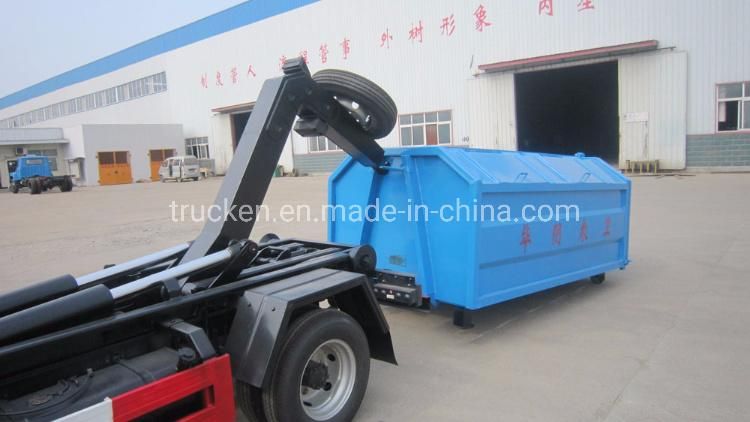

1,Detachable Container Garbage Truck also called pull arm garbage truck ;

2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab;

3,The truck compartment using fully enclosed design, there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly;

4,The truck can use with several refuse hoppers, one truck can maintain multiple garbage collection point operation, high efficiency.
