• Model NO.：ZZ5314GJBN3667C1
• Drive Mode：8x4
• Maximum Horsepower：300-400hp
• Condition：New
• Color：Red, Yellow, Green, White, Blue.etc
• After-Sale Service：One Year or 100000km Which Comes First
• Usage：for Construction, Transportation
• Driver Seat：Air Suspension Seat
• Transport Package：Nude Packing After Painted Wax
• Specification：heavy duty truck
• Trademark：SINOTRUK New Yello River
• Origin：China
• HS Code：8705400000
• Production Capacity：5000units,Year

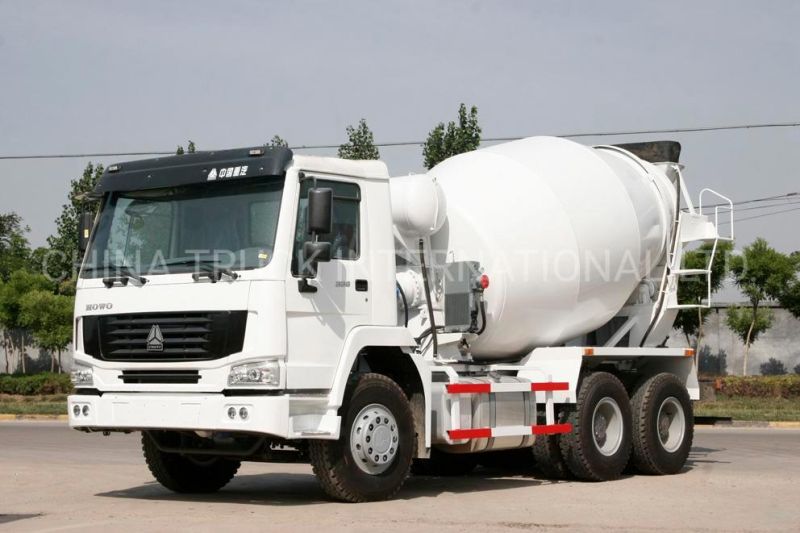

SINOTRUK Howo 15cbm concrete mixer truckProduct ModelZZ5314GJBN3667C1Main parametersOverall size(L*W*H)10820×2496×3995mmGross weight31000kgsRated capacity14320kgsCurb weight10860kgsApproaching/Departure Angle16/32(°)Front/Rear suspension1500/1460mmMax.speed90km/hChassisChassis BrandSINOTRUKChassis modelZZ1317N3667C1Drive type8X4, LHD/RHDFuel TypeDieselTire Specification12.00-20,12.00R20 Tire No.12Wheelbase1800+3600+1350mmAlex No.4Leaf Spring No.11/11/12,4/4/-,11/11/- GearboxHW10 speedFront trend 2022/2022,2041/2041mmRear trend1830/1830mmEngineManufacturerChina Heavy Duty AutomobileModelWD615.95Horse Power336HPDisplacement/Power9726ml/247kwEmission standardEuro 3/Euro 4Parameters of mixing drumagitation volume (m3)15-16charging rate (m3/min)≥2.8discharging rate (m3/min)≥1.2residual rate  (%)≤0.5rotating speed of mixing drum  (rpm)0~17Driving systemspeed reducermade in Italy by PMPhydraulic pumpmade in Italy by PMPhydraulic motormade in Italy by PMPradiatormade in ChinaWater supply water tank volume (L)450type of water supplyair pressure water supplyControl systemcontrol modeconnecting rod controlstructure features
1,mixing drum and mixer blade using special
wear-resisting material Q345, mixing drum material thickness
 is 6mm,mixer blade material thickness is 4mm.
2, material of blowpit and feed hopper scaleboard
 is just the same as the mixing drum;
3,humanizing operating system,connecting rod operation,
concise safe and reliable;
4,using imported brand-name hydraulic system;5,flushing water back control;6,product with quick discharging, no residual

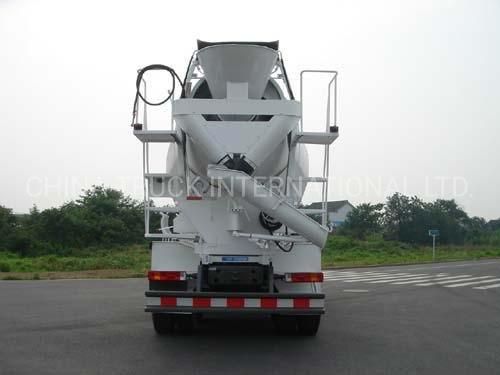

3.Detailed photos

4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO


5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

6. Main products


7. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ?   A: We can make the tires as your requirement to suit your country's need.Q2: What about your products quality ?      A: Quality is our culture! "Our factory has advanced production technology and management team!
   We always attach great importance to quality controlling from the very beginning!Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?        A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.Q 4: What others we can do ?   A: According to your order, we will provide the best price and quality trucks and trailers.
   And we are well capable in offering overseas after-sales service. Besides, we also provide rational
   packing and shipping program,let shipment save money and security.Q 5: How to guarantee customers get the goods smoothly after they pay ?   A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.Q 6: What's the delivery time ?   A: The delivery time is within 15 working days after receiving your advance payment. Q 7: Can you supply some quick-wear truck or semi trailer parts ?   A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance   beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc. Q 8:  Do you have any used truck and semi trailer for sale ?   A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
   show you our stock if you need.   Q 9:  Which INCOTERMS 2010 TERMS can we work ?   MAOWO is a professional and sophisticated international player, can handle all INCOTERMS
   2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW.   Q 10:  What logistics ways we can work for shipment?   A: We can ship construction machinery by various transportation tools.
   (1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
   Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
   (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.,we can ship construction machinery by road or railway.
   (3) For light spare parts in urgent demand, we can ship it by international courier service, such as
   DHL, TNT, UPS, or Fedex.

8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
