• Model NO.：CLW
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Product Name：Dongfeng 4X2 3000 Liters Sewage Suction High
• Drive Mode：4X2
• Chassis Brand：Dongfeng
• Drive Type：LHD,Rhd
• Tire：9.00-20, 8.25-20
• Color：White, Yellow, Blue or Customized
• Engine Brand：Cummins, Yuchai Brand
• Horse Power：90HP, 120HP, 160HP, 180HP
• Pump of Sewage Tanker Truck：Italy Brand High Pressure
• Wheel Base：3300mm
• Transport Package：Waxed Before on Board
• Specification：ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC
• Trademark：CLW BRAND
• Origin：Hubei Suizhou
• Production Capacity：500sets,Month

Item
unit
parameter
Vehicle model
Sewage Suction Truck
Chassis model
EQ1061
Overall dimensions
mm
5600×1890×2340
Fact cubage
L
3000-3500
GVW
kg
Appro×5900
Rated loading capacity
Appro×1980
Mass in working order
Appro×3725
Body internal dimensions
mm
3100×1480×950
Wheel base
3000
F/R track base
1404/1458
Approach/departure angle
°
19/15
Exhaust/hp
ml/kw
3298/70
Max speed
km/h
95
Tire specification
6.50-16,7.00-16
Engine type
4100QBZL
Traction system
4×2
transmission
5-speed with over drive
Number of axles
2
Electric system
24v
Operation control system
Electrically hydraulic control
Allowable passengers in cab
2
Equipment
Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min
Engine
YunNei, diesel engine
Production cycle
10-15days
Warranty
12 month, from the date of supply

About us

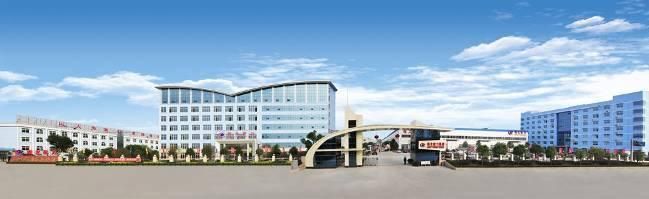

We CLW Heavy Industry Co., Ltd. are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.
All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.



 1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer. Nearly 15 years wholesaler experience in producing truck.

  2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.

 3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.

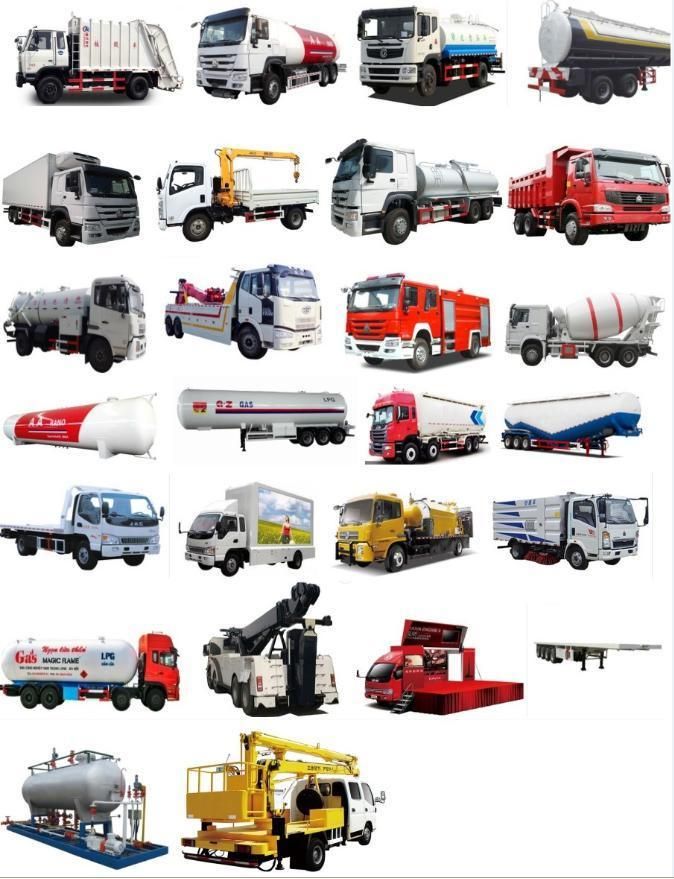

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.



Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.


FAQ
1. Q: How about the quality of trucks of your factory?
   A:  Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts   come from the original manufacturers with anti-fake label.
2. Q:How many years of your company's service, especially after-sale service?
  A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q:Is there any advantages of your price?
   A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform  us, will make special  order for you.


Any question please contact me without hesitation!!!
