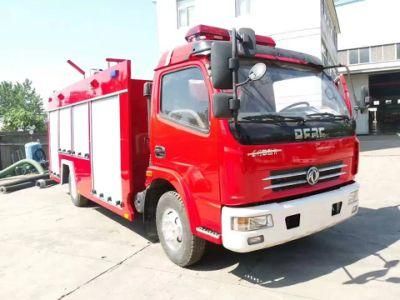

New Mini 4X2 Fire Engine Water and Foam Fire Fighting Truck
CLW Heavy Industry Co., Ltd- Type：Pumper
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Volume：＜3000L
- Emission Standard：Euro 3
- Transmission Type：Manual
- Payload：2-5ton
Base Info
- Model NO.：CLW
- Fuel：Diesel
- Drive Wheel：4×2
- Horsepower：150-250hp
- Condition：New
- Description：Fire Fighting Truck
- Drive Mode：4X2
- Water Volume：2cbm
- Brand：Dongfeng, Sinotruk, HOWO
- Steering System：Left Hand Drive, Right Hand Drive, LHD, Rhd
- Warranty：3 Key Parts for 1 Year.(Engine, Chassis, Transmiss
- Tire：7.00r15
- Horse Power：130HP
- Color：Red
- Place of Origin：Hubei China (Mainland)
- Transport Package：Bulk, RO-RO, Container, Naked, Waxed
- Specification：ISO, CCC and others
- Trademark：CLW
- Origin：Hubei. China
- HS Code：87053090
- Production Capacity：300sets,Month
Description
New Mini 4X2 Fire Engine Water and Foam Fire Fighting TruckDrive Model 4X2 Chassis QL1050 Capacity Water:2000L Vehicle Main Dimensions Dimensions(L x W x H)(mm) 6205X1900X2700 Wheel base (mm) 3360 Overhang (front/rear) (mm) 1015/1830 Wheel track (front/rear) (mm) 1504/1425 Approach/Departure angle(°) 24/13 Weight in KGS GVW. 4085 Curb Weight 2050 Max. driving speed(km/h) 90 Engine Model Engine:4KH1-TC Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power(HP) 130 HP engine capacity(ml) 2999 Emission standard Euro III Gearbox 5 forwards & 1 reverse Clutch Reinforced diaphragm clutch Steering Gear Power steering, hydraulic steering with power assistance Fuel tank (L) 150 Tire 7.00R15tire , 6 + 1(spare) Brakes dual circuit compressed air brake Cab four doors, double row Water tank material high quality steel plate, antiseptic treatment PTO Type: Sandwich type (full power PTO).
Handle: Manual control
Cooling type: Forced water cooling, Splash lubrication Piping Systerm Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline Fire Pump 1. Tank capacity: 2000L
2. Fire pump model:CB10/20
3. The flow rate of fire pump: 20L/S
4. Pressure of fire pump : 1.0mpa
5. Fire cannon mode PS20
6. Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0Mpa Other Equipment 1. one ingate, with fast lock and open device
2. one overflow safety device and air breather
3. one fluid level gauge
4. one drain outlet, with ball valve, stainless steel valve element
5. two water filling nozzle outside of the tanker
6. one inlet piping connect to water tank and pump
About us

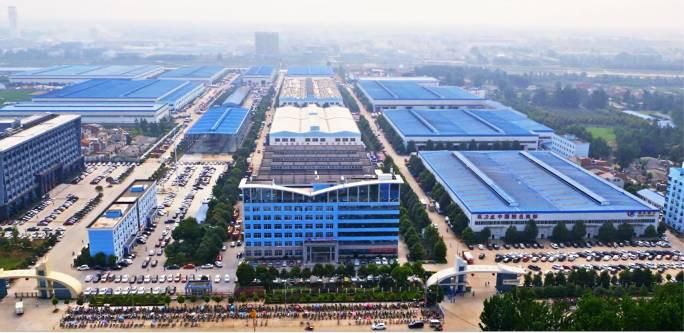

We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.
All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.
1. CLW Heavy Industry Co., Ltd which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer. Nearly 15 years wholesaler experience in producing truck.
2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.
3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.
CLW Heavy Industry Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper

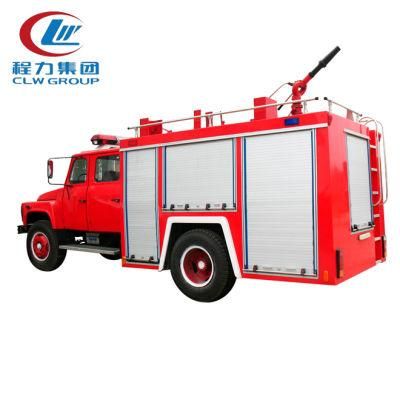

5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck

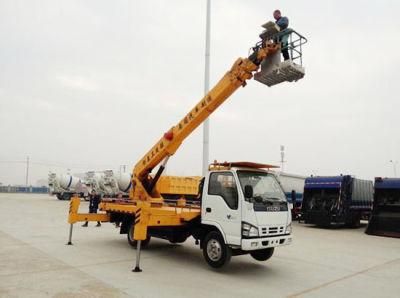

10. High-altitude operation truck

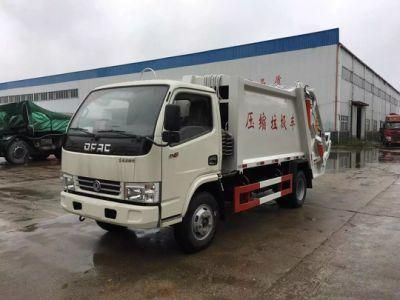

11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer / side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)
FAQ
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q:How many years of your company's service, especially after-sale service?
A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q:Is there any advantages of your price?
A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
