• Model NO.：CLW5089GKZ
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Produce Name：High Altitude Operation Truck
• Lifting Height：16meter, 18meters, 20meters, 22meters
• Bucket Loading Weight：200kg
• Bucket Size：1000*650*1200mm
• Turning Angle：360 Degree
• Arm Type：Folded or Telescopic
• Max Working Height：22meters
• Max Working Radius：8.0meters
• Working Radius in Max Height：3meters
• Working Height in Max Working Radius：15meters
• Front Legs：H Shape
• Rear Legs：H Shape
• Hook Weight：800kg
• Max Hook Height：9.5 Meters
• Optional Brand：Dongfeng, Isuzu,
• Transport Package：Naked Package
• Specification：18meters, 20meters, 22meters, 24meters
• Trademark：CLW
• Origin：China
• HS Code：870590990
• Production Capacity：500unit,Month

Telescopic Skylift Bucket Truck 22m ~24MeterOverall dimensions7410*2210*3550 mmGross vehicle weight8950kgWheel base3800 mmF/R track base1110/1990mmApproach/departure angle21/12°CabinDongfeng Single Row Cabin, 2 Passenger Allowed,EngineCummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter coolingDisplacement/ HP3760CC / 141HPMax speed90 km/hTire specification7.60 - 16, 6 Pieces with 1 SpareTraction system4x2Number of axles2Bucket  Max. work height: 23 meters    Max. bucket floor height: 22metersMax. work radius: 10 metersRated load: 200kgDimension (L×W×H)   1000×650×1200 (mm)BoomType      Four-section telescopic synchronously  Rotation angle      360°      Elevation angle    -12°~80°OutriggersType: H4000x4000mmMajor FeatureOutriggercomputer controlled system, one key to stretch out & balance the level of the truckBalancingAutomatically Balancing system with Tilting Angle Sensor & level detectorGetting on & off LockComputer control system,Telescopic Arm ControlControlling system in the bucket, with manual control.Platform  Control systemLED Screen Display with Button controlRange ControlLarge Angle Sensor to Detect the Arm Length & Rotation RangeWalkie-TalkieIncluded

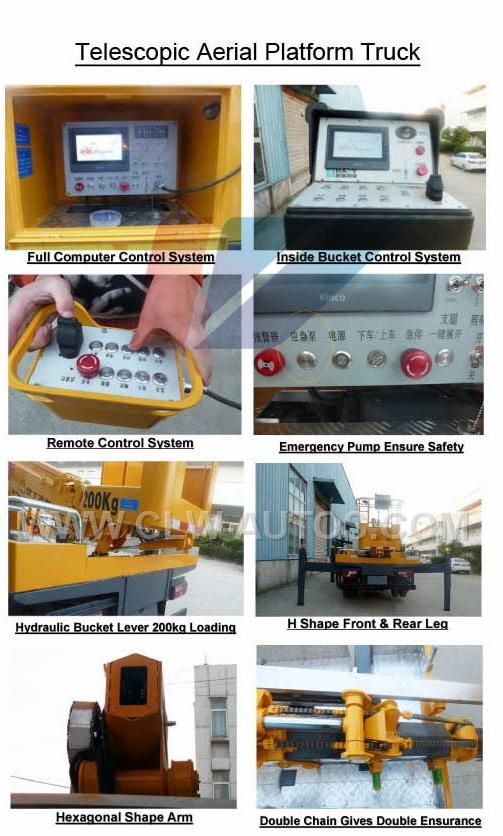

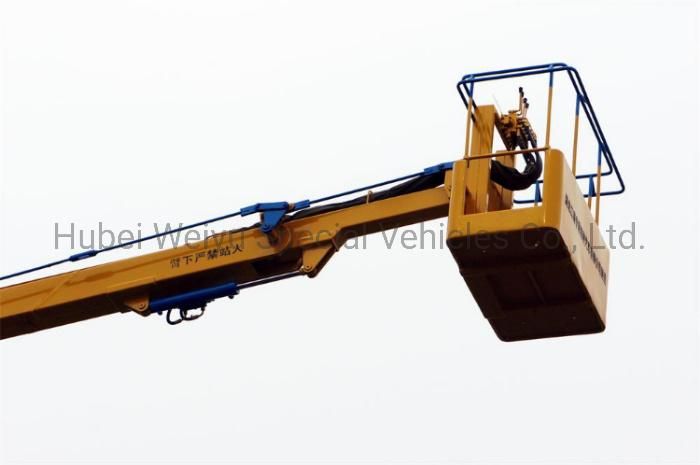

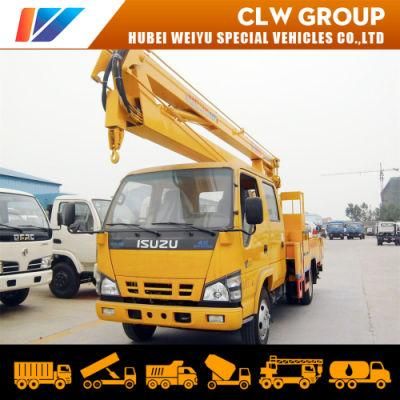

Reference Photos

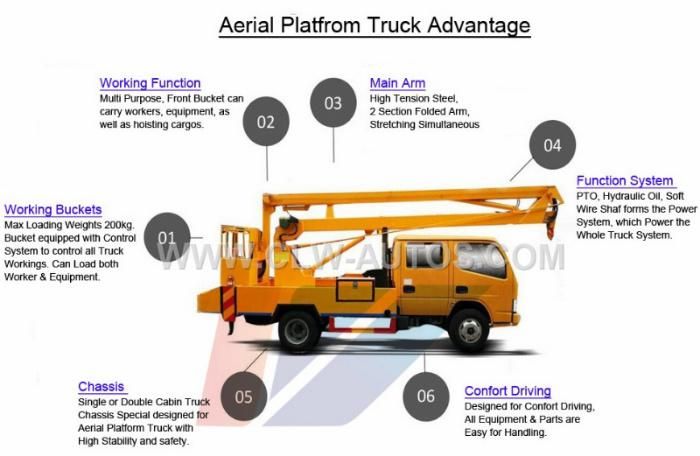

Main Structure and Diagram

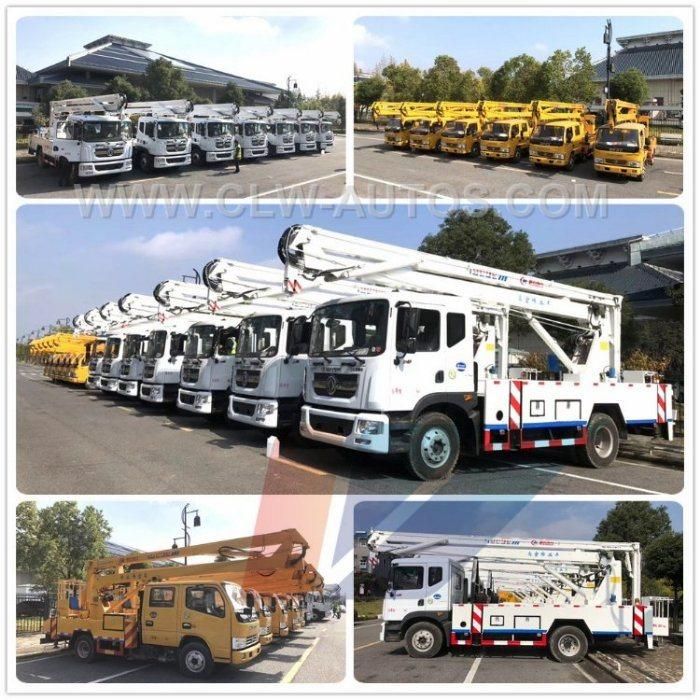

Bulk Orders
