• Model NO.：CLW5086LJC
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Shacman
• Models：Medium
• Usage：Compression Type
• Condition：New
• Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
• Campacting Ratio：0.8-0.9 Ton,M3
• Compression Ratio：3-4
• Compression Cycle Time：No More Than 15s
• Unload Garbage Time：No More Than 23s
• Hydraulic Pressure：16MPa
• Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
• Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
• Garbage Box Capacity：5ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
• Dirty Water Tank Volume：0.2cbm
• Hopper Volume：0.8cbm
• Controlling Way：Manual and Electrical Control
• Color：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked, Container, RO-RO, Bulk
• Specification：14cbm, 14m3, 14000Liters, 7ton, 8ton, 9ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension8470*2490*3250(mm)Gross Vehicle Weight15800(Kg)Curb Weight9450(Kg)Chassis SpecificationChassis BrandShacmanDrive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModelCummins 180HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, withABS.Power132KW/180HPEmission standardEURO 3Displacement4557(ml)Fuel typeDieselGearbox6Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base4600mmFront/Rear Axle Loading4500/9000(Kg)Approach/Departure Angle24/12°Tire9.00R20, 6pc with 1 spare tireMax Driving Speed98(km/h)Upperstructure SpecificationCompector BoxBox Volume14CBMBox Capacity8TonDirty Water Tank Volume0.2CBMHopper Volume0.8CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration

1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

   After-sales Service

   1)Pre-sales Service: Communicate with customers, analyze their needs.
   2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
   3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

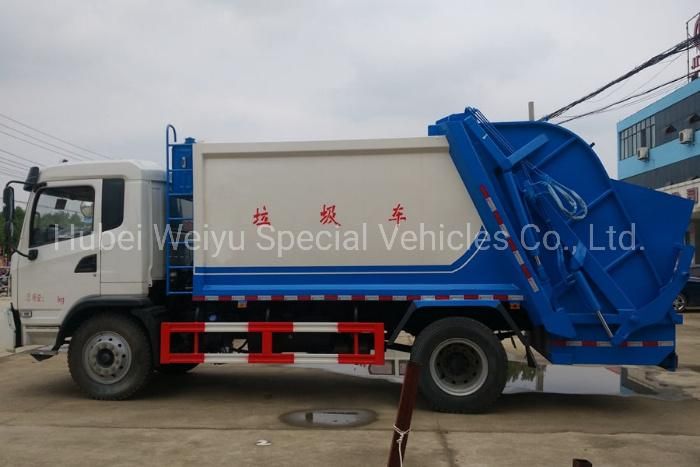

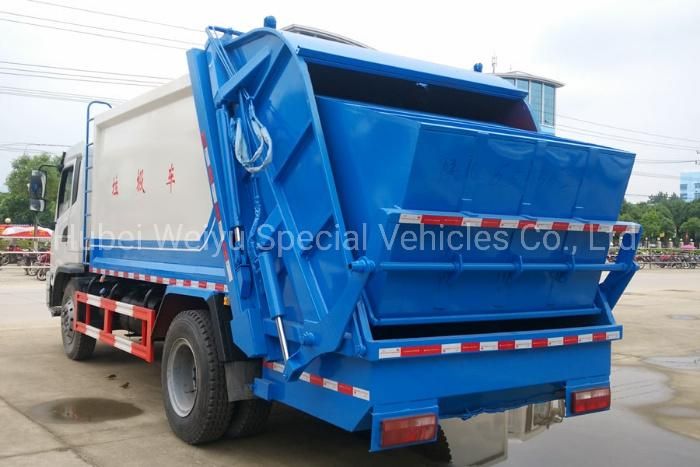

   Reference Photos

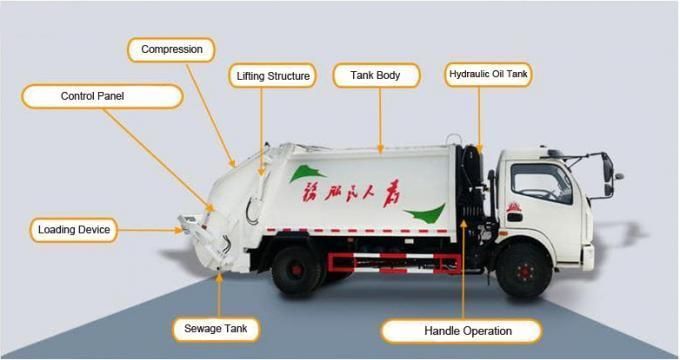

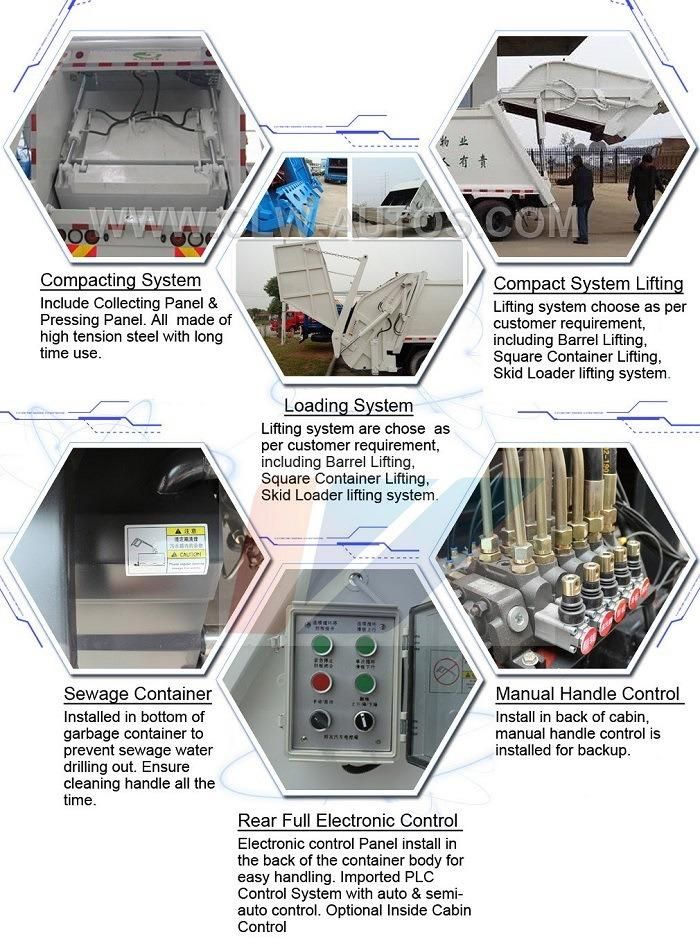

   Main Parts

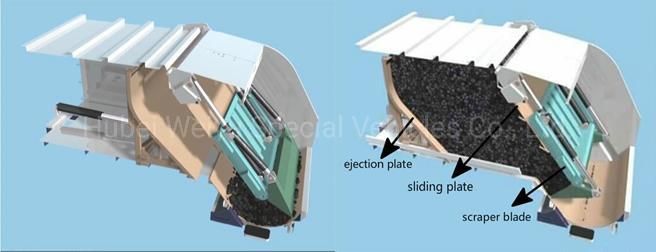

   Main Working System


   Garbage Loading and Unloading Process

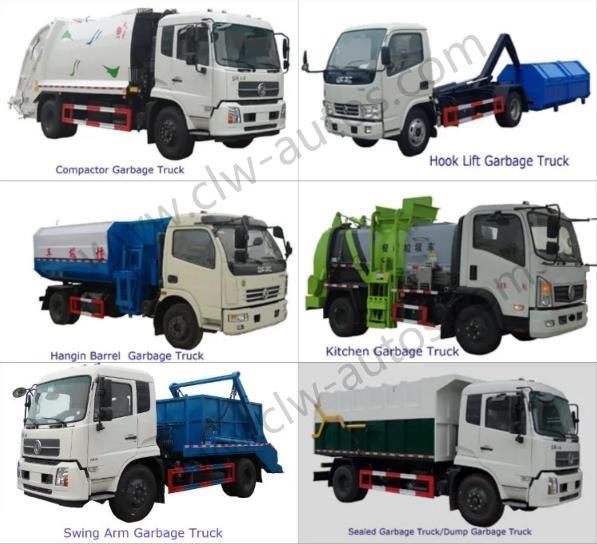

   Various Kinds of Garbage Trucks


   Company Introduction


   Certificates



   Our Overseas Exhibition
